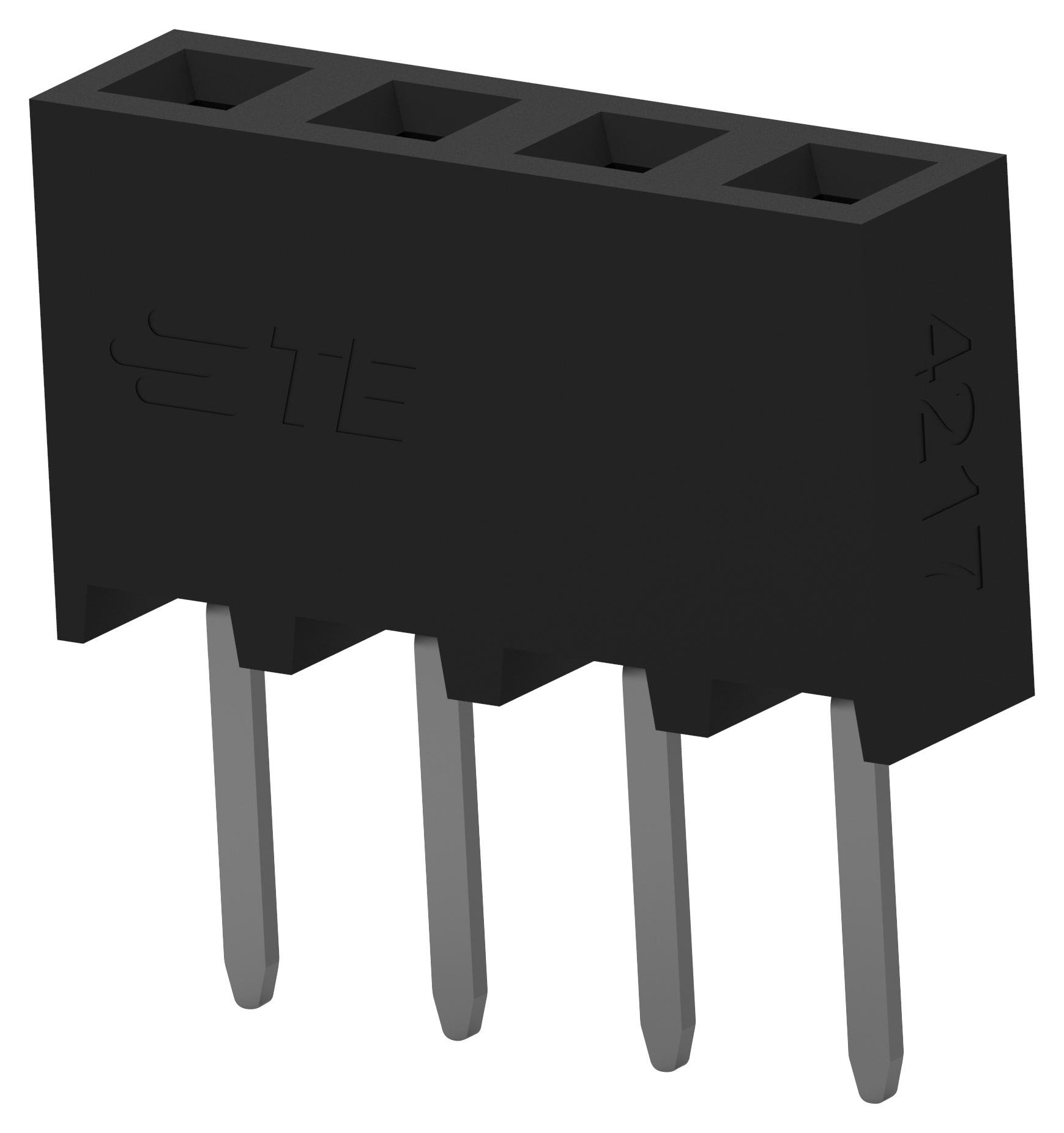

TE CONNECTIVITY 23148784 Industrial Board Receptacle
This is a high-reliability, 2mm pitch board-to-board receptacle designed for industrial applications such as PLCs, servo drives, and building automation. It features dual beam contacts for stable signal transfer, surface-mount and through-hole mounting options, and accommodates various PCB thicknesses from 1.6mm to 2.4mm. The receptacle offers up to 25 positions per row, with multiple configuration options, including vertical and horizontal entry. Made from high-temperature resistant LCP plastic, it is UL94V0 and halogen-free, ensuring safety and environmental compliance for demanding industrial environments.
TE CONNECTIVITY 23148784 Industrial Board Receptacle Specifications:
- Centerline: 200mm [0.079"]
- Contact Material: Phosphor Bronze with gold plating options of 30p", 15y", 4u" [0.76um, 0.38um, 0.1um]
- Operating Temperature: -40°C to 125°C
- Dielectric Withstanding Voltage: 650VAC
- Operating Voltage: 125VDC
- Current Rating: 2A
- Reflow Solder Capable to 260°C
- Housing Material: High-temperature LCP, UL 94V0, Black
- Dimensions vary based on configuration, with length options for different PCB thicknesses, multiple solder tail lengths, and entry types
- RoHS & REACH compliant, UL certified, VDE approval pending
Buy the Buy TE Connectivity AMPMODU 2mm Board-to-Board Receptacle Part Number 23148784 Online
Discover the reliable TE Connectivity AMPMODU 2mm Board-to-Board Receptacle, featuring dual beam contacts, easy surface-mount and through-hole options, and compatibility with PCB thicknesses from 1.6 to 2.4mm. Designed for industrial automations including PLCs, servo drives, and building automation, this high-performance connector boasts UL94V0 rating, halogen-free construction, and a compact footprint that occupies 38% less space compared to wider pitch options. Ideal for applications requiring secure, space-efficient stacking and robust electrical stability, order online now to ensure your automation systems perform flawlessly with dependable connections.
Order your TE Connectivity Series23001512 2mm Board-to-Board Receptacle today and ensure reliable, space-saving connections for your industrial projects.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 23148784?
You can click on the BUY or RFQ button to purchase 23148784 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 23148784?
You can download the 23148784 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 23148784?
TE CONNECTIVITY
