TE CONNECTIVITY 23149366 Industrial Board-to-Board Receptacle
The product is a high-precision, space-saving board-to-board receptacle designed for industrial electronics. Featuring dual beam contacts with gold plating options, it provides reliable signal transfer with increased contact surface. Suitable for surface-mount and through-hole assembly, this receptacle operates efficiently from -40°C to 125°C, with a dielectric withstand voltage of 650VAC and a maximum current of 2A. Made from high-temperature UL 94V0 liquid crystal polymer plastic, it supports multi-position configurations up to 25 per row, ideal for automation, control systems, and instrumentation.
TE CONNECTIVITY 23149366 Industrial Board-to-Board Receptacle Specifications:
- Centerline: 200mm [0.079"]
- Contact Material: Phosphor Bronze
- Plating: 30p" [0.76um], 15y" [0.38um], or 4u" [0.1um] gold options
- Operating Temperature: -40°C to 125°C
- Dielectric Withstanding Voltage: 650VAC
- Current Rating: 2A (max.)
- Operating Voltage: 125VDC
- Material: High-temperature liquid crystal polymer (LCP), UL 94V0
- Vibration Resistance: No electrical discontinuity >1 μs
- Reflow Solder Capable to 260°C
- Dimensions: Available in various lengths, with multi-position configurations up to 25 per row
- Standards: RoHS & REACH compliant, UL Certified, VDE Pending
- Mounting: Surface-mount and through-hole with multiple solder tail lengths for PCB compatibility

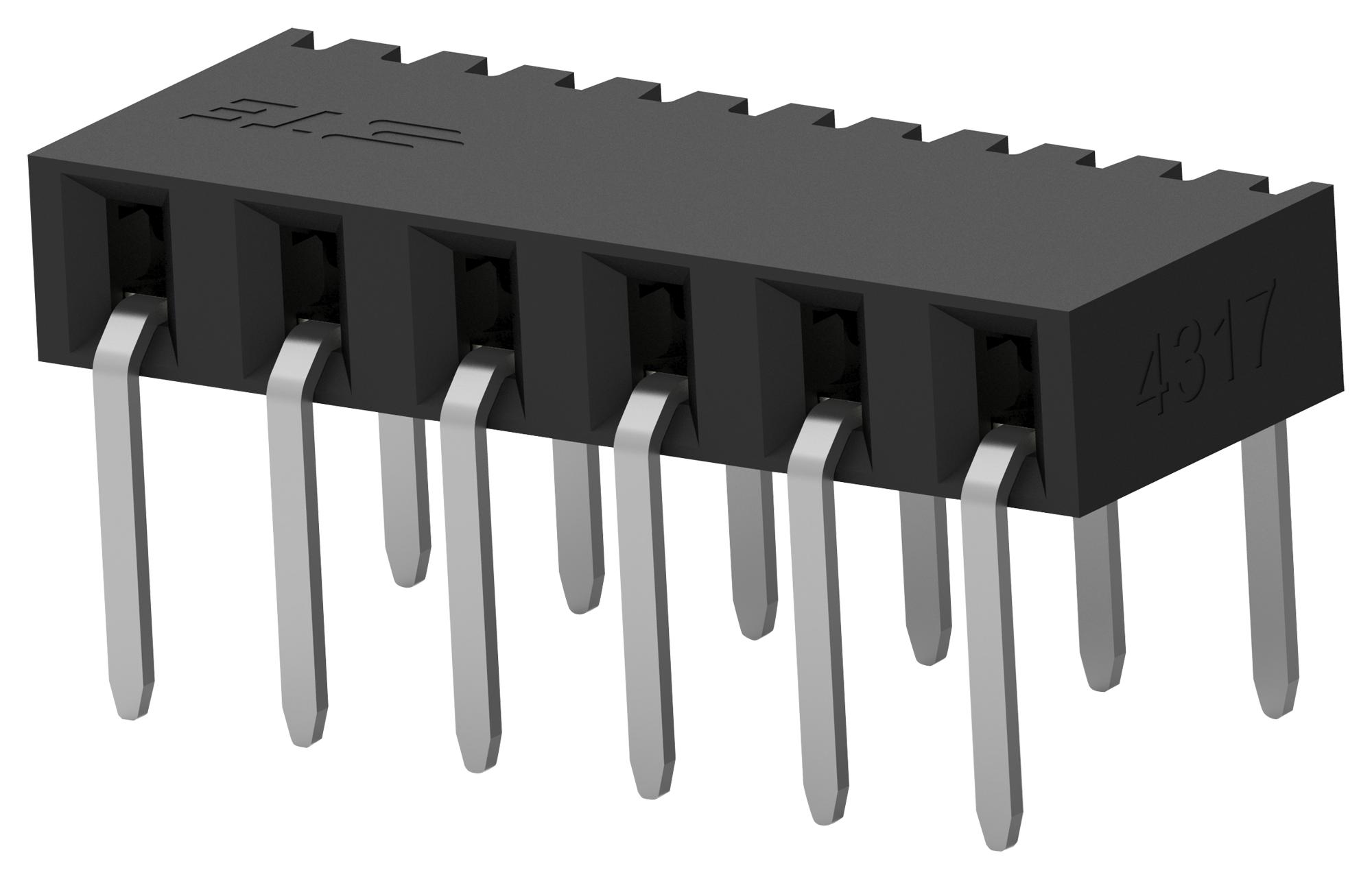

Buy the TE Connectivity Series AMPMODU 2mm Receptacle: 23149366
Enhance your automation and control system with TE Connectivity's AMPMODU 2mm Receptacle, offering space-saving design, reliable dual-beam contacts, and versatile mounting options. Perfect for PCB stacking in industrial equipment, this high-quality receptacle supports surface-mount and through-hole assembly, with a wide range of configurations up to 25 positions per row. Built from high-temperature UL 94V0 liquid crystal polymer, it withstands demanding environments from -40°C to 125°C. Ensure dependable signal integrity, easy assembly, and compliance with industry standards for your next project.
Get TE Connectivity AMPMODU 2mm Receptacle 23149366 today—crafted for reliable signal transfer in automation and industrial control systems.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 23149366?
You can click on the BUY or RFQ button to purchase 23149366 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 23149366?
You can download the 23149366 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 23149366?
TE CONNECTIVITY
