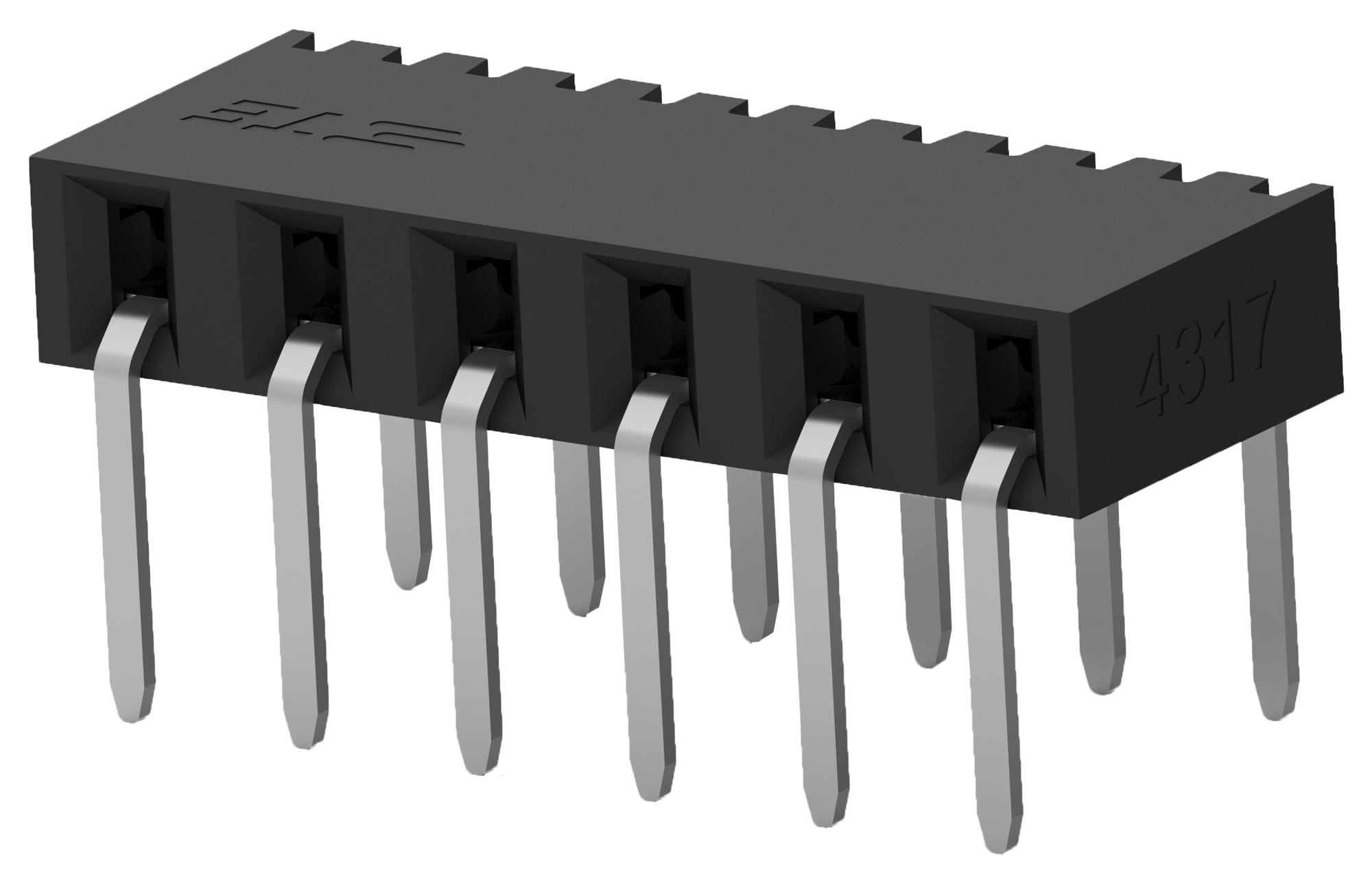

TE CONNECTIVITY 23149386 Board-to-Board Connector
TE Connectivity's AMPMODU 2mm Board-to-Board receptacles provide reliable signal transfer with dual-beam contacts housed in high-temperature-resistant LCP plastic. Designed for space-saving, high-density PCB applications, these connectors support surface-mount, through-hole, and reflow mounting processes. Featuring multiple options for stacking, vertical or horizontal entry, and various configurations from 2 to 50 positions, they are ideal for industrial controls, PLCs, servo drives, and automation systems. UL and RoHS compliant, they ensure durability and ease of assembly in demanding environments.
TE CONNECTIVITY 23149386 Board-to-Board Connector Specifications:
- Centerline: 200mm [0.079"]
- Dual beam contact design for reliable signal transfer
- Housing Material: High-temperature liquid crystal polymer (LCP), UL 94V0, black
- Contact Material: Phosphor Bronze with gold plating options (30p" [0.76μm], 15μ" [0.38μm], 4μ" [0.10μm])
- Operating Temperature: -40°C to 125°C
- Vibration Resistance: No electrical discontinuity >1 microsecond
- Reflow Solder capable up to 260°C
- Current Rating: 2A max., Dielectric withstand voltage: 650VAC, Operating voltage: 125VDC
- Available in tube, tape, and reel packaging, with multiple solder tail lengths for PCB thicknesses 1.6mm to 2.4mm
- Compliance: RoHS, REACH, UL certified, VDE pending
Buy the TE Connectivity Series AMPMODU 2mm Board-to-Board: 23149386
Experience dependable, space-saving connectivity with the TE Connectivity Series AMPMODU 2mm Board-to-Board receptacle. Designed for high-density PCB applications, it offers reliable signal transfer through dual-beam contacts, supporting surface-mount and through-hole reflow mounting processes. Its compact design occupies 38% less space than standard 2.54mm connectors, enabling extended functionality in industrial controls, PLCs, and automation projects. Made with high-temperature-resistant LCP housing and gold-plated phosphor bronze contacts, these connectors ensure durability, quality, and ease of assembly for demanding environments. Buy online now to upgrade your PCB interconnections efficiently.
Order your TE Connectivity Series AMPMODU 2mm Board-to-Board receptacle today and enhance your PCB design with reliable, space-efficient connectors.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 23149386?
You can click on the BUY or RFQ button to purchase 23149386 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 23149386?
You can download the 23149386 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 23149386?
TE CONNECTIVITY
