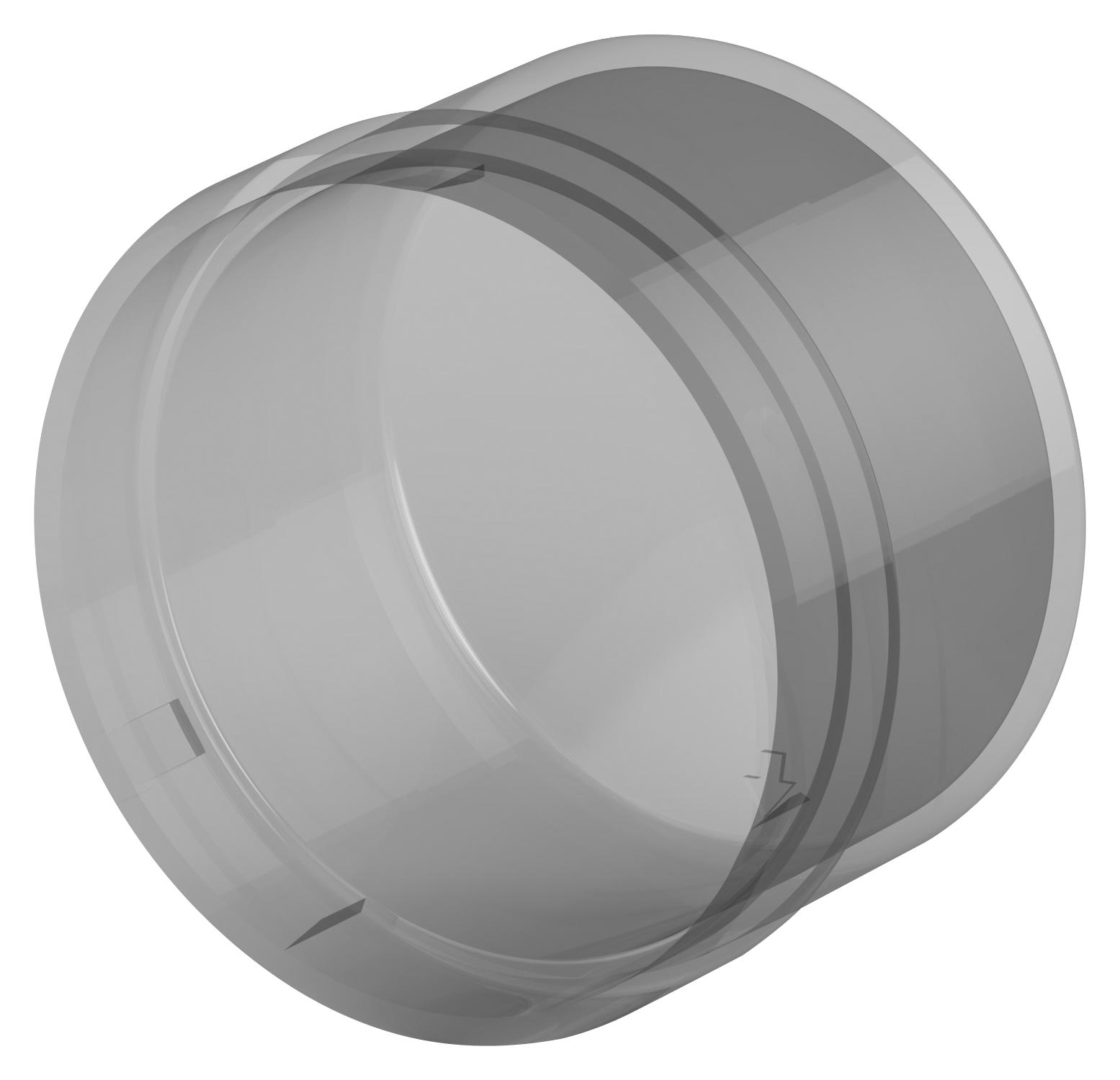

TE CONNECTIVITY 23155391 Outdoor Lighting Control Base
The Lumawise Endurance N Control Base, Sleeve, and Cover assembly offers a durable, IP66-rated solution for outdoor lighting applications such as street, roadway, parking lot, and trail lighting. It features UV-resistant housing, translucent covers for daylight transmission, and side or topside aperture sleeves for directional sensors. Made with UL 94 V-0 rated materials, it ensures long-term reliability, dust and jet spray protection, and compliance with flammability standards. Suitable for various mounting and sensor configurations, it provides robust power and signal interfaces for outdoor lighting control.
TE CONNECTIVITY 23155391 Outdoor Lighting Control Base Specifications:
- Operating Temperature Range: -40°C to +105°C
- Housing Color: Base black, Cover clear or translucent
- Housing Material: UL 94 V-0 rated polycarbonate (cover), PBT (sleeve)
- Contact Plating: Tin-plated power contacts, Gold-plated signal contacts
- Seal Rating: IP66 for dust and heavy jet spray protection
- Dimensions: 50 mm, 75 mm, 98 mm, 130 mm diameter options
- Application: Suitable for outdoor roadway, street, parking lot, trail lighting
- Features: Side and topside aperture sleeves, daylight transmitting covers, UL 94 V-0 flammability rating
- Applications include LED outdoor lighting, sensors, controllers, and communication devices
Buy the TE Series Endurance N Control Base: 23155391
Purchase the TE Connectivity Outdoor Lighting Control Base now to ensure reliable weatherproof operation for your street, roadway, or parking lot illumination systems. This IP66-rated assembly features durable, UL 94 V-0 materials, translucent covers for daylight transmission, and flexible sleeves with side or topside aperture options for sensor integration. Ideal for LED outdoor lighting applications, this product guarantees long-term performance, dust resistance, and heavy jet spray protection, making it an excellent choice for standards-compliant outdoor control solutions.
Buy TE Connectivity Endurance N Control Base and Cover assembly now and ensure long-lasting, weatherproof outdoor lighting control with IP66 protection.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 23155391?
You can click on the BUY or RFQ button to purchase 23155391 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 23155391?
You can download the 23155391 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 23155391?
TE CONNECTIVITY
