TE CONNECTIVITY 23168512 Sensor Module
The TE Connectivity AmbiMate MS4 Series sensor module offers a compact, ready-to-attach PCB with sensors for motion, light, temperature, and humidity. Designed for seamless integration into host devices, it aids rapid development and market deployment. The module supports optional VOC, CO2, and sound sensing, with shared connection points for flexible PCB layouts. Its versatile design is ideal for indoor lighting, building automation, energy management, and air quality monitoring, providing reliable sensing capabilities in a space-efficient form factor.
TE CONNECTIVITY 23168512 Sensor Module Specifications:
- Temperature Range: -40°C to +50°C with 0.3°C accuracy
- Humidity Range: 5% to 95% RH with 2% accuracy
- Power Supply: 3.3V DC
- Current Draw: <MA (specific value not provided)
- Detection Response Time: <0.5 seconds for motion and sound
- VOC Measurement Range: 0-1187 ppb, 400-8192 ppm with 60 sec acquisition
- Analog Audio Output: -25 to 19 dBV, 100 Hz to 10 kHz
- Operating Temperature: 5°C to 50°C
- Mounting: Ceiling, wall, corner; requires free air movement; light pipe recommended
- Electrical Pins: Vdd, GND, Event Out, SCL, SDA, Audio Output
- Enclosure: Suitable for PCB mounting with high-temp header for direct soldering

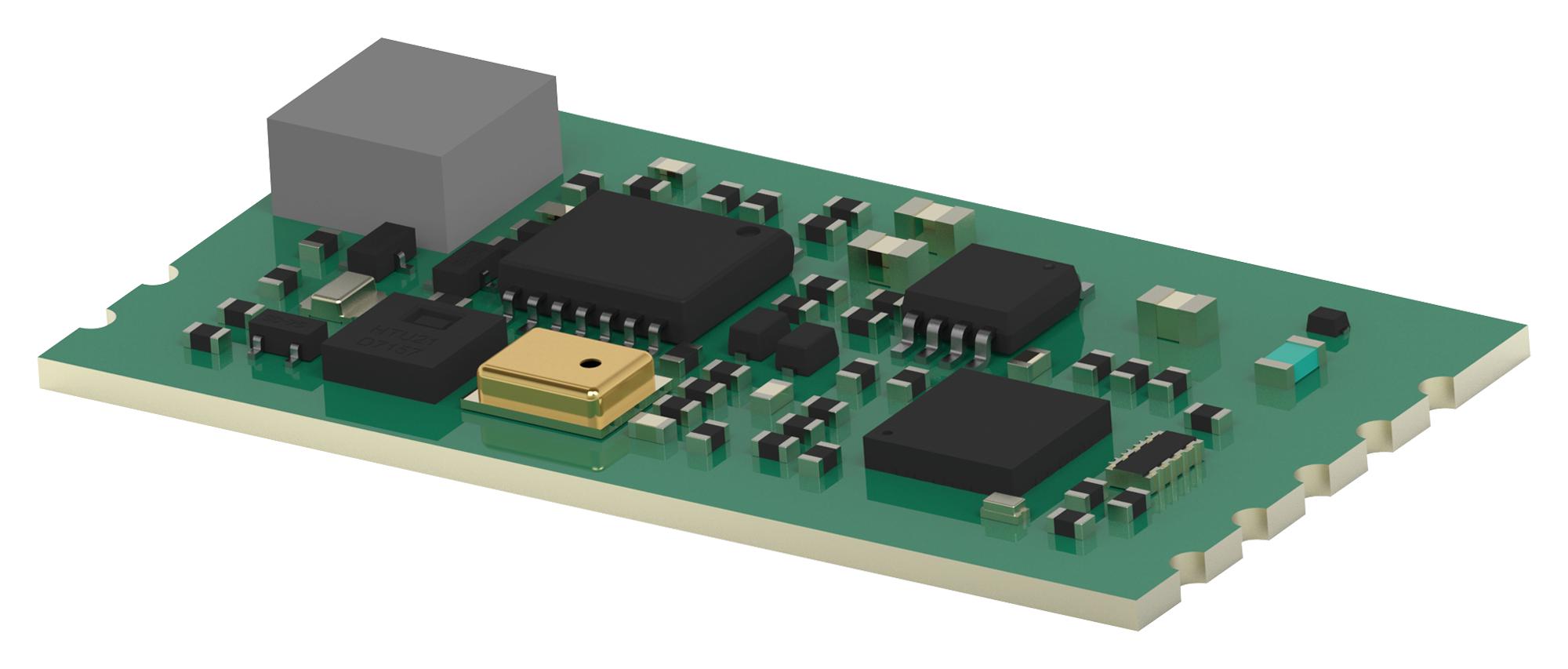

Buy the Buy TE Connectivity AmbiMate Sensor Module MS4 Series Part Number 23168512 Online
Experience the precision and ease of integration with the TE Connectivity AmbiMate Sensor Module MS4 Series. This versatile, compact sensor solution features motion, light, temperature, and humidity detection, with optional VOC, CO2, and sound sensing capabilities. Its shared seven-position connection simplifies PCB design, making it ideal for indoor lighting, air quality, and building automation. Designed for quick deployment, it helps reduce development time while ensuring reliable environmental monitoring in various applications. Purchase online today to upgrade your automation and sensing systems efficiently.
Get TE Connectivity AmbiMate MS4 Series sensor module today—engineered for reliable environmental sensing, flexible integration, and long-lasting performance.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 23168512?
You can click on the BUY or RFQ button to purchase 23168512 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 23168512?
You can download the 23168512 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 23168512?
TE CONNECTIVITY
