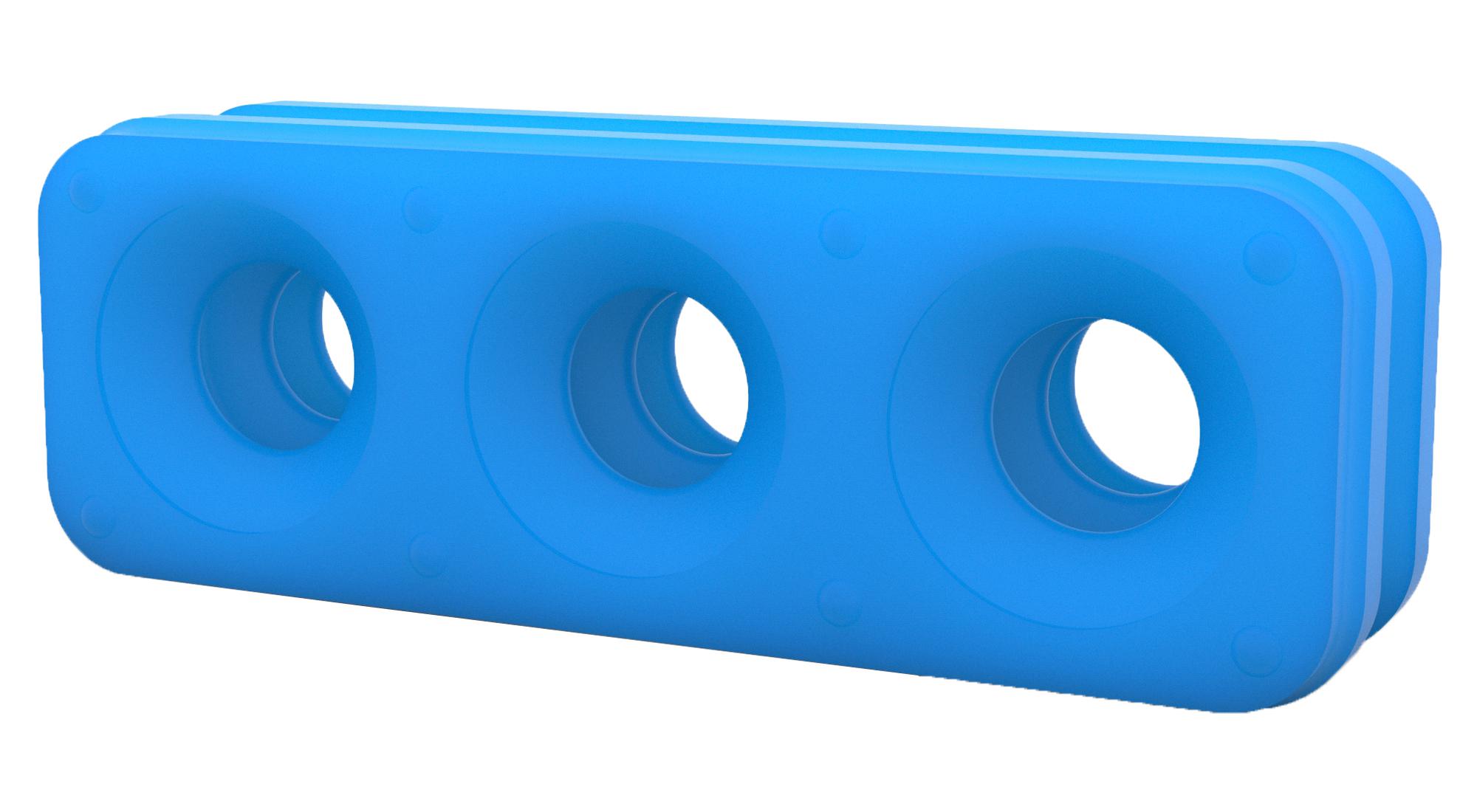

TE CONNECTIVITY 23253493 Rectangular Connector Seal
The TE Connectivity 2325349-3 is a rectangular connector seal within the Power Versa-Lock 5.0 family. This gang wire seal is designed to provide a robust and sealed connection between wires. It accommodates wire insulation diameters ranging from 2.45 to 3.6 mm (.097 to .142 inches) and is ideal for wire-to-wire applications. Constructed from silicone rubber, this seal offers excellent durability and resistance to environmental factors, making it suitable for various industrial and commercial applications. It is RoHS compliant and operates effectively within a temperature range of -30 to 105 °C.
TE CONNECTIVITY 23253493 Rectangular Connector Seal Specifications:
- Connector Seal Type: Gang Wire Seal
- Accepts Wire Insulation Diameter Range: 2.45 – 3.6 mm [.097 – .142 in]
- Connector System: Wire-to-Wire
- Number of Positions: 3
- Centerline (Pitch): 5 mm [.197 in]
- Accessory Color: Blue
- Product Type: Accessory
- Seal Color: Blue
- Seal Material: Silicone Rubber
- Material: Silicone Rubber
- Seilable: Yes
- Connector & Contact Terminates To: Wire & Cable
- Operating Temperature Range: -30 – 105 °C[-22 – 221 °F]
- For Use With: Power Versa-Lock Sealed Connectors
- Circuit Application: Power & Signal
- Comment: IP67
- EU RoHS Directive 2011/65/EU: Compliant
- EU ELV Directive 2000/53/EC: Compliant
- China RoHS 2 Directive MIIT Order No 32, 2016: No Restricted Materials Above Threshold
- EU REACH Regulation (EC) No. 1907/2006: Current ECHA Candidate List: JAN 2021 (211). Does not contain REACH SVHC
- Halogen Content: Low Halogen - Br, Cl, F, I < 900 ppm per homogenous material. Also BFR/CFR/PVC Free
Buy the 2325349-3 TE CONNECTIVITY Rectangular Connector Seal | myMectronic
Secure your TE Connectivity 2325349-3 Rectangular Connector Seal with our trusted online platform.
Buy Now
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 23253493?
You can click on the BUY or RFQ button to purchase 23253493 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 23253493?
You can download the 23253493 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 23253493?
TE CONNECTIVITY
