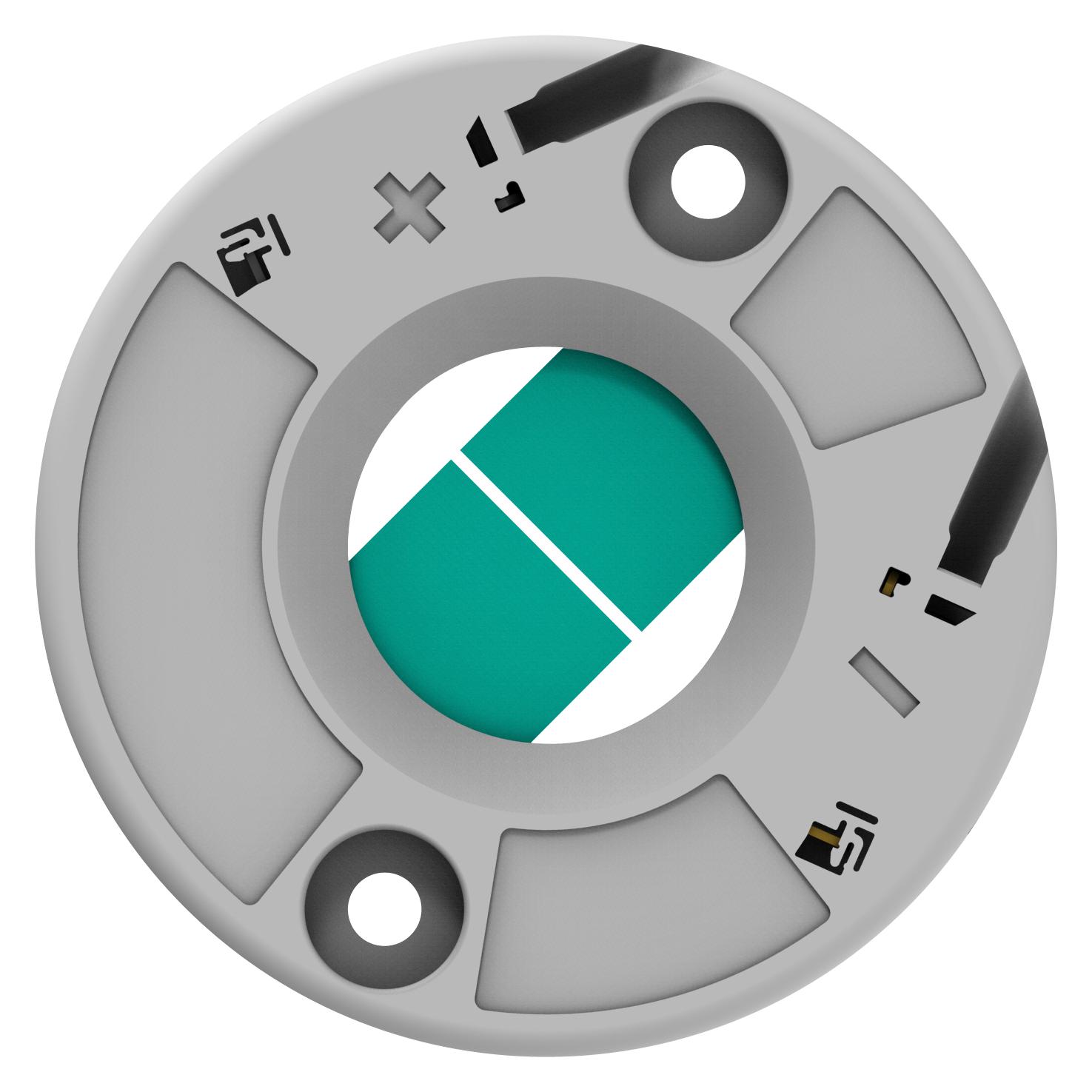

TE CONNECTIVITY 23258072 LUMAWISE Z45 LED Holder
TE Connectivity's LUMAWISE Z45 LED Holder represents a significant advancement in LED holder technology. Designed for chip-on-board (COB) LEDs, this holder utilizes a high-strength, highly reflective, and halogen-free housing material. Its design incorporates features like adhesive tape and poke-in wire connections, simplifying assembly and eliminating the need for clamping systems. The standard 35mm screw pitch and 120-degree optic angle minimize light loss and facilitate integration into luminaires. The LUMAWISE Z45 LED Holders are Zhaga book 3 compliant, ensuring compatibility with other Zhaga LED lighting components and enabling interchangeability. Applications include spotlights, downlights, track lights, street lights, horticultural lighting, and general lighting.
TE CONNECTIVITY 23258072 LUMAWISE Z45 LED Holder Specifications:
- Current: 3A (Maximum)
- Voltage: 60V DC (Maximum)
- Optic Angle: 120 degrees
- Operating Temperature Range: -40°C to 105°C
- Attachment Screw Size: #4 or M3
- Wire Gauge Support: 18-22 AWG (0.35 - 0.75mm²)
- Housing Material: Halogen free highly reflective PBT
- Contact Material: Copper alloy with gold plating
- Standards: UL8574 IEC 60838-2-2
- Application Specification: 114-133107
- COB Size: 19X19 mm
Buy the 2325807-2 TE CONNECTIVITY LUMAWISE Z45 LED Holder | myMectronic
Purchase the TE Connectivity 2325807-2 LUMAWISE Z45 LED Holder securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 23258072?
You can click on the BUY or RFQ button to purchase 23258072 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 23258072?
You can download the 23258072 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 23258072?
TE CONNECTIVITY
