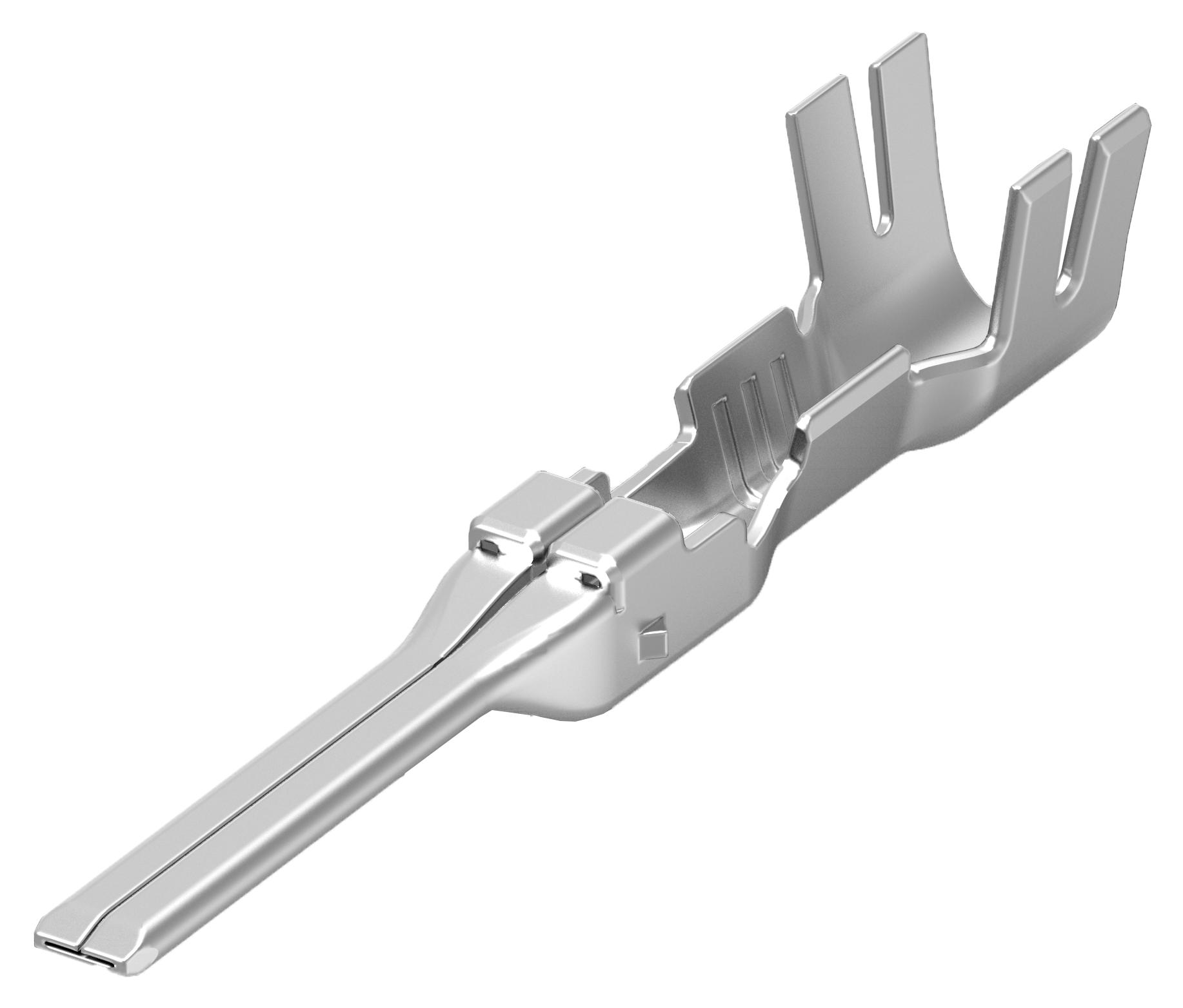

TE CONNECTIVITY 23299091 Power Contact
The TE Connectivity 2329909-1 Power Versa-Lock 5.0 contact is a robust solution for power distribution in various industrial applications. Designed for wire-to-wire connections, this contact offers a secure and reliable connection with a pre-tin plating for enhanced solderability. It supports a wide range of wire sizes (26-22 AWG) and operates at a voltage of 600 VAC/VDC, making it suitable for demanding power applications. The contact's design incorporates features like a tab shape and a brass base material, ensuring durability and efficient current transfer. It is commonly used in power connectors and is compatible with various housing and locking mechanisms.
TE CONNECTIVITY 23299091 Power Contact Specifications:
- Power Contact Type: Contact
- Connector System: Wire-to-Wire
- Sealable: No
- Connector & Contact Terminates To: Wire & Cable
- Continuous Current Rating: 5 A
- Operating Voltage: 600 VDC
- Contact Mating Area Plating Material: Pre-Tin
- Contact Current Rating (Max): 5 A
- Contact Type: Tab
- Contact Retention Within Housing: Without
- Mating Tab Width: 1.5 mm
- Mating Tab Thickness: .5 mm
- Contact Base Material: Brass
- Wire Contact Termination Area Plating Material: Pre-Tin
- Wire Contact Termination Area Plating Material Finish: Matte
- Contact Orientation: Straight
- Termination Method to Wire & Cable: Crimp
- Carrier Strip Mount Orientation: Side Feed
- Connector Mounting Type: Panel Mount
- Wire Insulation Support: With
- Wire Size: .13 – .3 mm²
- Accepts Wire Insulation Diameter Range: 1.3 – 2.1 mm
- Operating Temperature Range: -30 – 105 °C
- Circuit Application: Power
- Packaging Method: Reel
- Wire/Cable Type: Discrete Wire
- Wire Type: Stranded
- For Use With: Cap Housing
- EU RoHS Directive 2011/65/EU: Compliant
- EU ELV Directive 2000/53/EC: Compliant
- China RoHS 2 Directive MIIT Order No 32, 2016: No Restricted Materials Above Threshold
- EU REACH Regulation (EC) No. 1907/2006: Current ECHA Candidate List: JAN 2021 (211)
- Halogen Content: Low Halogen - Br, Cl, F, I < 900 ppm per homogenous material. Also BFR/CFR/PVC Free
