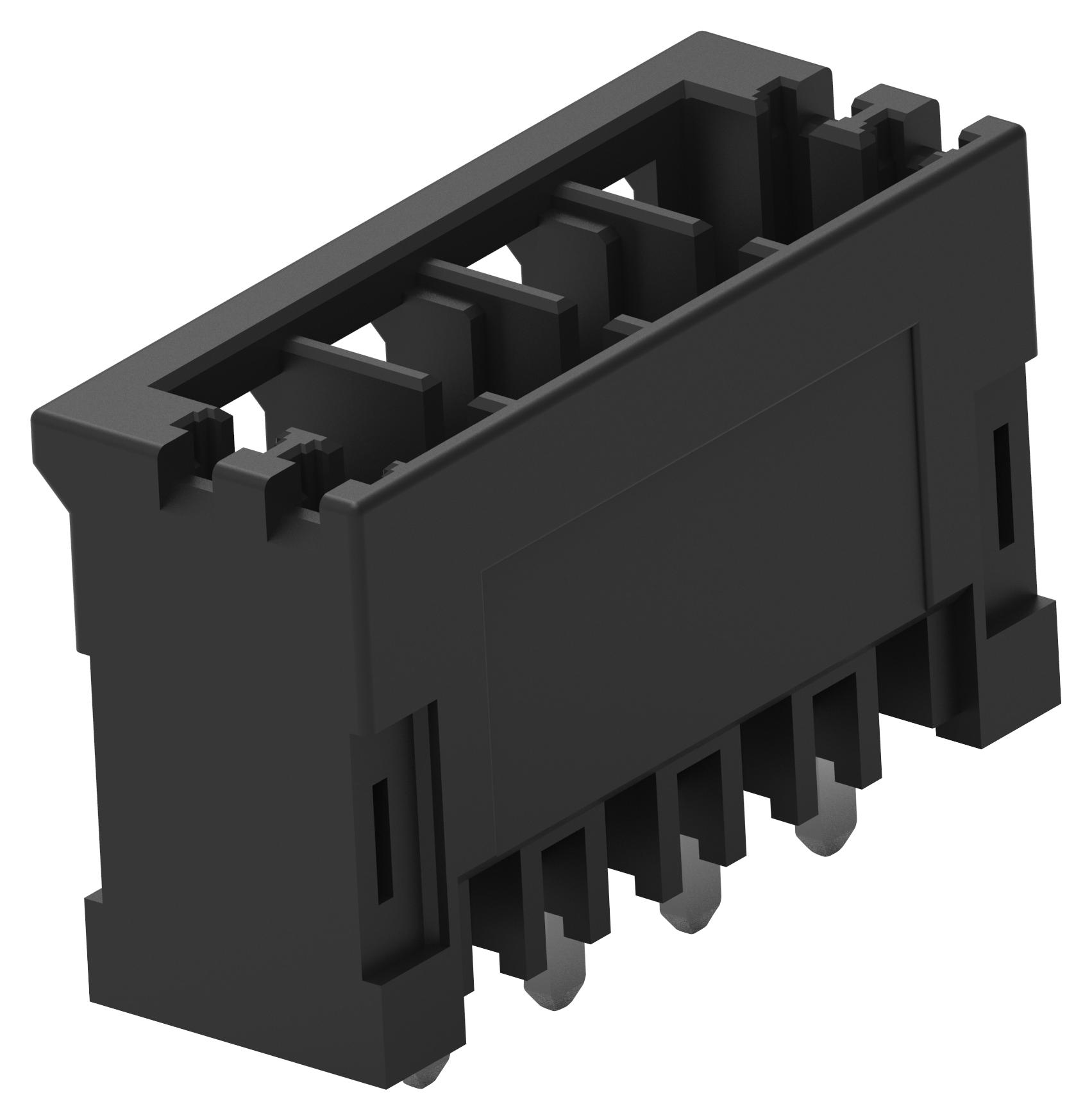

TE CONNECTIVITY 23364944 Wire-to-Board Connector
The D-2970 Dynamic Series is a compact 5-mm pitch wire-to-board PCB connector featuring field-installable push-in clamp termination, enabling quick, tool-free assembly. Its tactile and audible feedback ensures safe mating, while the low insertion force allows fingertip wire release. Suitable for industrial automation, robot controls, and PLC power interfaces, it supports up to 26A per pole and 400V AC/DC. Crafted with durable materials like PBT, LCP, and stainless steel, this connector offers robust, vibration-resistant connections with UL, IEC, and RoHS compliance, ensuring reliable performance in demanding environments.
TE CONNECTIVITY 23364944 Wire-to-Board Connector Specifications:
- Pitch: 5 mm
- Voltage: Up to 400V AC/DC (IEC 61984), 300V AC/DC (UL1059)
- Current: Up to 26A per pole at 20°C ambient
- Wire Size: Solid AWG 24-16 / 0.2-1.5 mm, Stranded AWG 26-14 / 0.13-2.5 mm
- Number of Mating Cycles: 50
- Material: Female Housing: PBT, Male Housing: LCP, Clamp: stainless steel, Contact: copper alloy
- Plating: Tin over nickel, Gold options available
- Environmental Standards: IEC 61249-2, RoHs, Reach, UL 94 V-0
- Mechanical: Extraction force >10N (0.2mm wire), >50N (2.5mm wire), operating temperature up to 55°C
- Certifications: UL, IEC, VDE, RoHs
- Operating Temperature: -55°C to +105°C
- Ingress Protection: IP20
- Locking: Tactile and audible latch, finger safe housing
Buy the TE Connectivity D-2970 – Reliable Industrial Connection for Industrial Applications
Purchase the TE Connectivity D-2970 wire-to-board connector online today to ensure quick, reliable, and safe connections for your industrial automation, robotics, and control systems. Its push-in clamp offers tool-free wiring, saving assembly time and reducing labor costs. Designed for high current capacity up to 26A and voltages up to 400V, it withstands vibration and environmental challenges. Available with tin or gold plating, this rugged connector guarantees optimal electrical performance and safety compliance, making it a smart choice for manufacturing, automation, and building control projects.
Order your TE Connectivity D-2970 series connector today and enhance your industrial projects with durable, easy-to-install wiring solutions.
