TE CONNECTIVITY 23378151 Mini-SAS Cable System
The External Mini-SAS HD Cable Assembly System is designed for high-speed data transfer with reliable electrical, mechanical, and environmental performance. Rated for 30 volts DC and 0.5A, it withstands temperatures from -20°C to 85°C and humidity levels up to 80% RH. The system features high-quality materials ensuring durability during cable flex, insertion, and extraction, plus rigorous testing including thermal shock, humidity cycling, and salt spray to meet industry standards. Ideal for industrial, networking, and data storage applications, it guarantees robust connectivity and longevity under demanding conditions.
TE CONNECTIVITY 23378151 Mini-SAS Cable System Specifications:
- Voltage / Current: 30V DC / 0.5A
- Operating Temperature: -20°C to 85°C
- Storage Temperature: -20°C to 55°C
- Humidity: 80% Relative Humidity
- Materials: Specified on product drawing
- Dimensions: As per product drawing
- Performance Tests: Thermal shock, humidity cycling, salt spray, cable flex, insertion and extraction force, latch retention, pull tab strength
- Mechanical: Cable flex 180° for 100 cycles, 90N cable retention, 100 N insertion force, 50 N extraction force
- Environmental: Salt spray, cold bend testing, dielectric withstand voltage at 300V AC, insulation resistance minimum 1000 MΩ
- Standards: Meets EIA-364, SFF-8644, SFF-8417 specifications
- Qualifies through rigorous environmental and electrical testing per industry standards

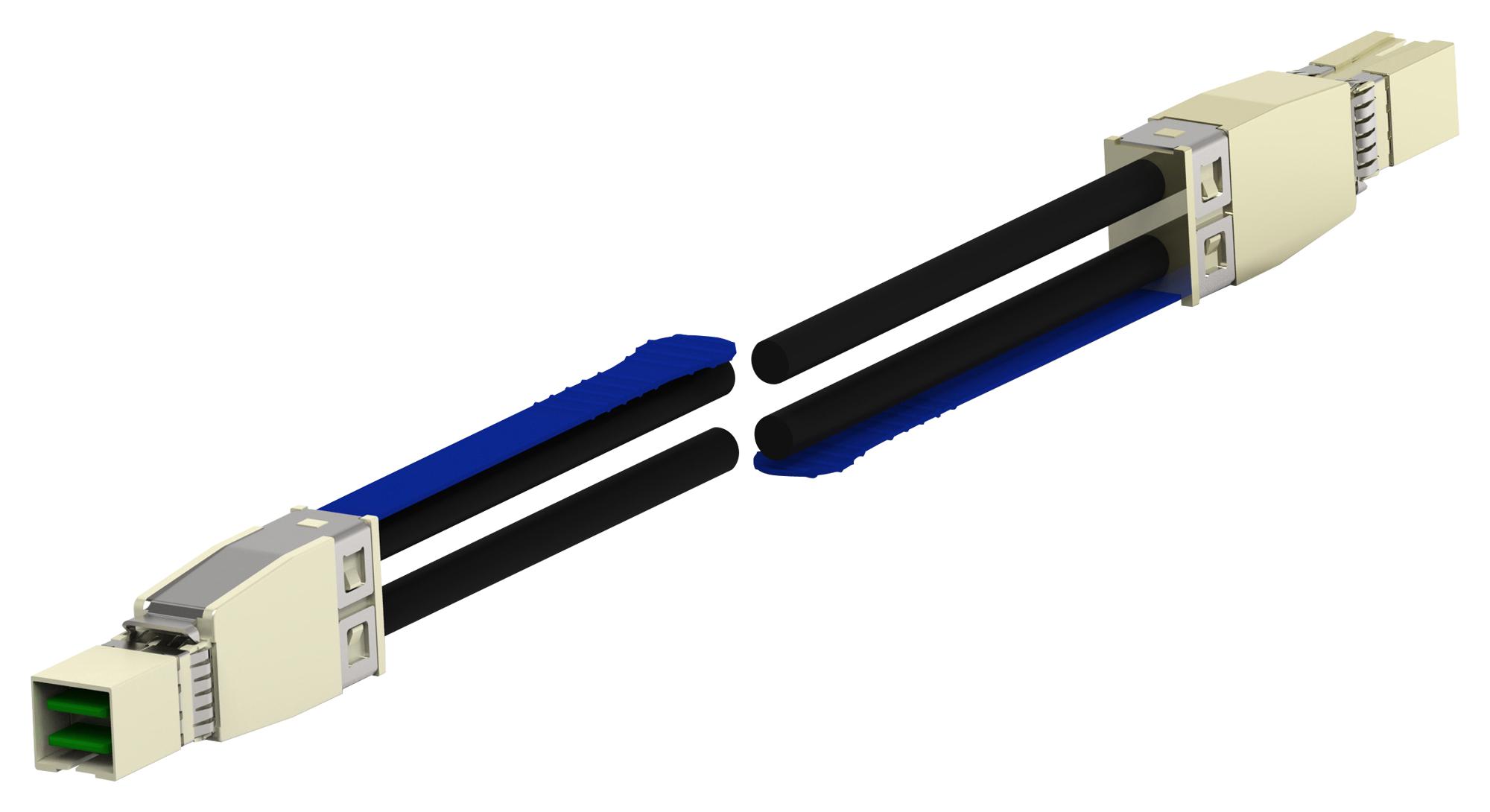

Buy the TE Connectivity 108-152051 – Reliable External Mini-SAS HD Cable System for Industrial Applications
Purchase the TE Connectivity Mini-SAS Cable System online today to ensure durable, high-performance connectivity for your industrial and data storage needs. This robust cable assembly is designed to withstand demanding environments, including temperature extremes, humidity, and mechanical stress. The system guarantees reliable high-speed data transfer at 30V and 0.5A with superior electrical properties, ensuring seamless operation in industrial, networking, and storage applications. Quick online ordering ensures fast delivery, enabling you to enhance your equipment’s performance without delays or concerns about durability.
Buy TE Connectivity 108-152051 now and experience unmatched reliability and performance in high-speed industrial data transfer.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 23378151?
You can click on the BUY or RFQ button to purchase 23378151 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 23378151?
You can download the 23378151 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 23378151?
TE CONNECTIVITY
