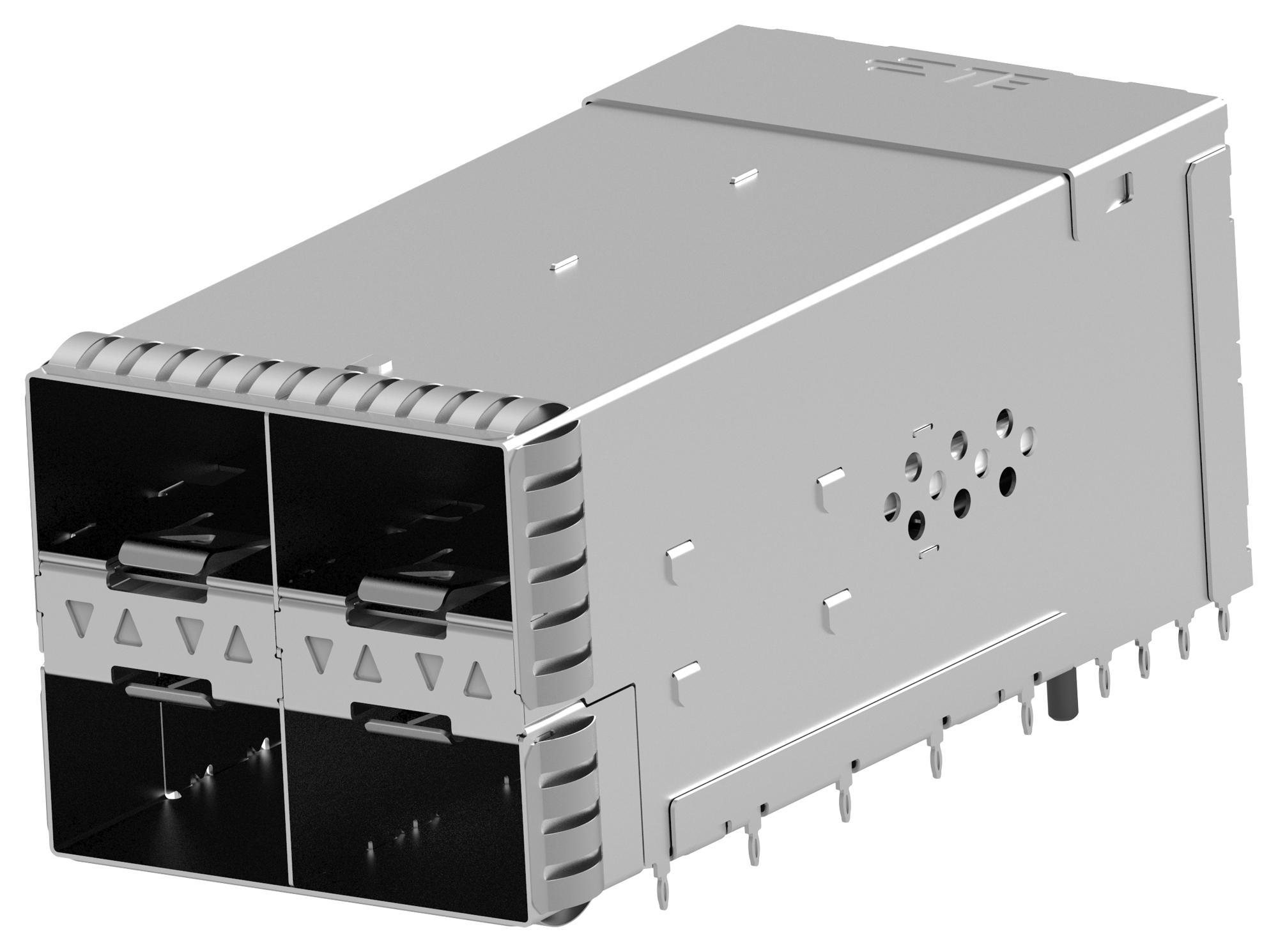

TE CONNECTIVITY 23435226 zSFP+ Interconnect
The zSFP+ pluggable I/O interconnect offers high-speed data transfer up to 28 Gbps NRZ and 56 Gbps PAM-4, compatible with SFP+ modules. It features a surface-mount design for easy PCB assembly, superior signal integrity through coupled contact beam geometry, and backward compatibility with existing SFP+ cages and connectors. Available in configurations supporting multiple ports, it includes options for EMI containment and heat sinks, making it suitable for telecommunications, data centers, medical equipment, and networking applications. Designed for -40 to +85°C operation, it ensures reliable performance in demanding environments.
TE CONNECTIVITY 23435226 zSFP+ Interconnect Specifications:
- Data Rates: Up to 28 Gbps NRZ and 56 Gbps PAM-4, 10 Gbps Ethernet, 16 Gbps Fibre Channel
- Voltage (max.): 120V AC
- Current (max.): 0.5A
- Dielectric Withstanding Voltage: 300V AC between contacts
- Operating Temperature: -40 to +85°C
- Material: High-temperature thermoplastic housing, high-performance copper alloy contacts
- Plating: Nickel underplating; Tin plating on solder tail; Gold plating on mating area
- Physical Dimensions: Compatible with standard SFP+ cage footprint, multiple port configurations
- Mechanical: Mating force 25N, un-mating force 11.5N, durability minimum 250 cycles
- Certifications: UL Listed, RoHS compliant
Buy the Molex Series zSFP+ I/O Interconnect: 23435226
Enhance your network infrastructure with the high-speed Molex zSFP+ interconnect, supporting data rates up to 28 Gbps. This versatile, backward-compatible solution fits seamlessly into existing SFP+ cages, offering easy upgrades for telecom, data centers, and networking. Its robust construction, thermal stability, and reliable performance ensure top-tier operation in demanding environments. Available in multiple configurations with EMI containment and heat sink options, it’s ideal for high-performance applications. Purchase online today and boost your system’s efficiency and scalability with confidence.
Buy Molex zSFP+ 23435226 now and experience unmatched reliability and high-speed data transfer for advanced telecommunications and data center needs.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 23435226?
You can click on the BUY or RFQ button to purchase 23435226 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 23435226?
You can download the 23435226 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 23435226?
TE CONNECTIVITY
