TE CONNECTIVITY 23446576 Multi-Protocol Wireless Antenna
This triple-band embedded PCB antenna supports ZigBee, Bluetooth, and WLAN applications, featuring a 100 mm cable with MHF4 compatibility. Designed for seamless integration, it offers a VSWR less than 2.7:1, impedance of 50Ω, and operates across multiple frequency bands from 2400 MHz to 7125 MHz. The lightweight antenna weighs approximately 1.2 grams and includes an adhesive mounting for secure placement. Its compact dimensions include a 7 mm diameter and 35 mm length, making it ideal for space-constrained wireless devices requiring reliable multi-protocol connectivity.
TE CONNECTIVITY 23446576 Multi-Protocol Wireless Antenna Specifications:
- Frequency Bands: 2400–2500 MHz, 5150–5875 MHz, 5925–7125 MHz
- Antenna Type: Thin PCB
- Configuration: Embedded, Single Port
- VSWR (Max): <2.7:1
- Impedance: 50 Ω
- Cable Length: 100 mm (3.937 in)
- Antenna Connector: MHF4 Compatible
- Antenna Style: Adhesive Mount
- Weight: Approx. 1.2 g (.042 oz)
- Dimensions: Diameter 7 mm, Length 35 mm
- Polarization: Linear
- Radiation Pattern: Omnidirectional
- Wireless Standards Supported: Bluetooth, WLAN (802.11 a/b/g/n/ac/ax), ZigBee
- Compliance: EU RoHS, REACH, Halogen-free
- Operating Temperature: Not specified
- Max Gain: 5.3 dB
- Max Power: Not specified

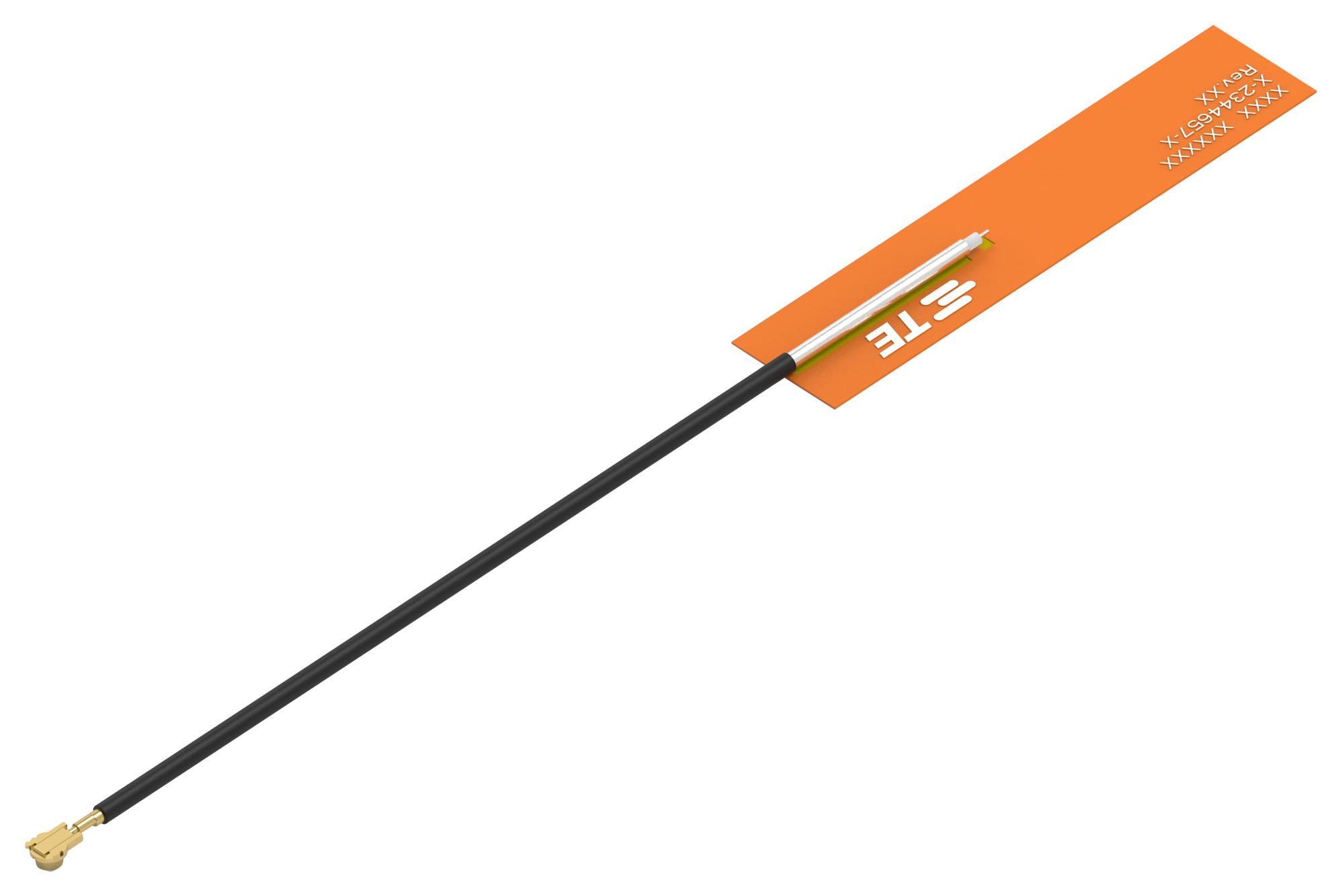

Buy the TE Series 2344657-6 ZigBee Bluetooth WLAN Antenna
Enhance your wireless devices with the TE Series 2344657-6 multi-protocol antenna, supporting Bluetooth, WLAN, and ZigBee. This compact, lightweight antenna features a 100 mm cable with MHF4 connector and adhesive mounting for easy integration into space-constrained applications. It operates across multiple frequency bands with low VSWR for optimal performance. Ideal for IoT, embedded systems, and smart devices, it ensures robust signal strength, reliability, and compliance with environmental standards. Upgrade your wireless connectivity today with this versatile antenna for seamless device performance.
Buy TE 2344657-6 antenna now and experience reliable multi-frequency wireless connectivity for your IoT devices.
