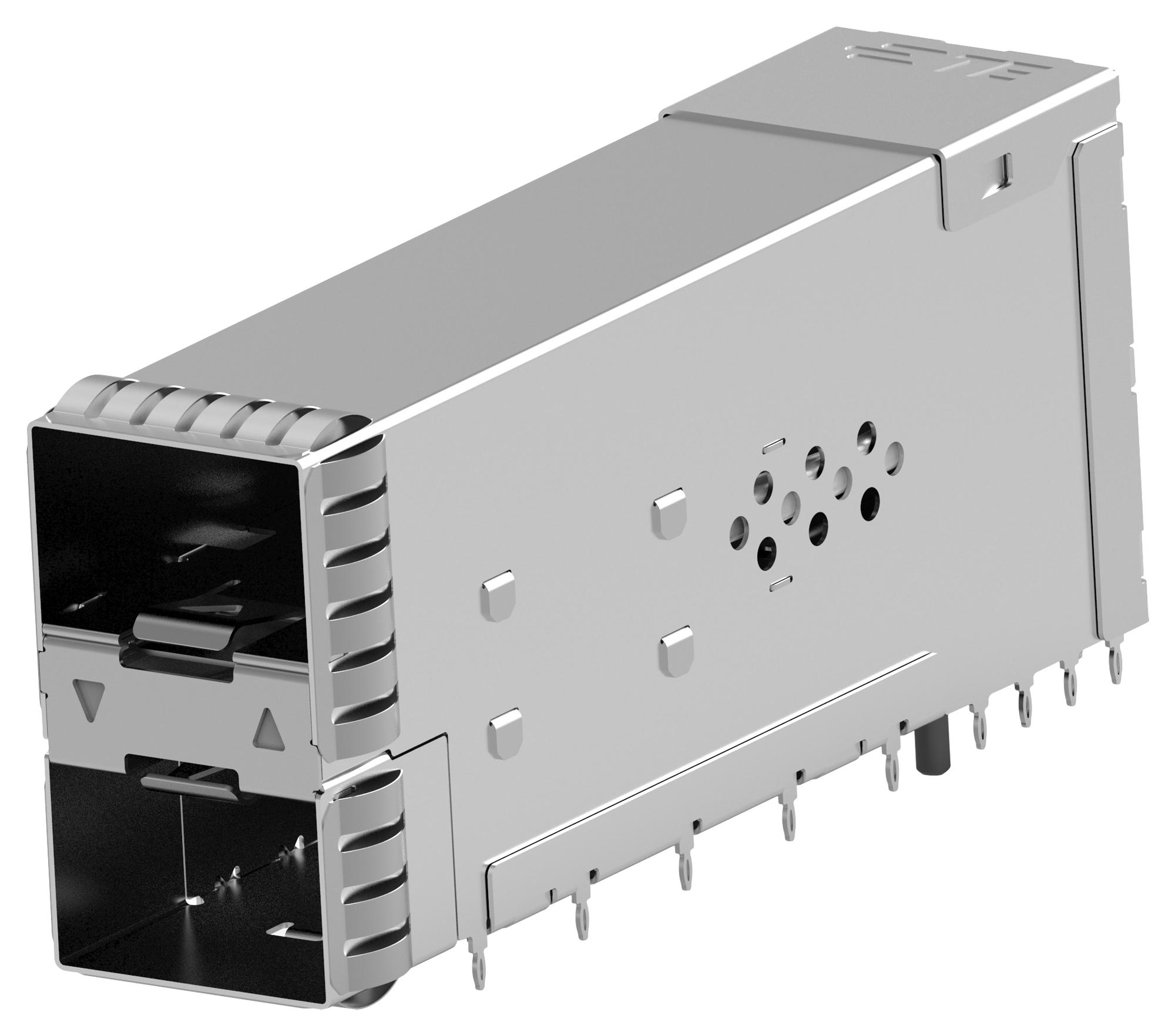

TE CONNECTIVITY 23492028 zSFP+ Interconnect
The zSFP+ pluggable I/O interconnect is the fastest single-channel connector, supporting data rates up to 28 Gbps NRZ and 56 Gbps PAM-4, with backward compatibility to SFP+ systems. Designed for high-density applications, it features a surface-mount design with superior signal integrity, mechanical resilience, and flexible configurations such as stacked assemblies and various port options. Suitable for telecommunications, data centers, and networking equipment, this connector ensures reliable performance and easy PCB integration. Multiple light pipe and plating options are available for enhanced EMI containment and aesthetic customization.
TE CONNECTIVITY 23492028 zSFP+ Interconnect Specifications:
- Data rates: Up to 28 Gbps NRZ and 56 Gbps PAM-4, 10 Gbps Ethernet, 16 Gbps Fibre Channel
- Voltage (max.): 120V AC
- Current (max.): 0.5A
- Dielectric Withstanding Voltage: 300V AC between contacts
- Operating Temperature: -40 to +85°C
- Housing Material: UL 94V-0 high-temperature thermoplastic
- Contact Material: Copper alloy with Nickel underplating, Tin or Gold plating
- Physical Dimensions: Compatible with SFP+ footprint, various configurations for port density
- Durability: Minimum 250 mating cycles
- Insertion Force: Max 34 N without heat sink, 45.37 N with heat sink and clip
- Unmating Force: Max 11.5 N
- Cage Material: Nickel Silver, suitable for belly-to-belly and high-density designs
- EMI containment options: Elastomeric gasket, spring fingers, light pipe configurations
- Supported Standards: IEEE 802.3by, Fibre Channel, SFF-8402, SFF-8665
- Application areas include telecommunications, data centers, medical diagnostics, and network switching.
Buy the Buy TE Connectivity zSFP+ Part Number 23492028 Online
Enhance your high-speed data transfer capabilities with the TE Connectivity zSFP+ interconnect, supporting data rates up to 28 Gbps. Its backward compatibility with SFP+ systems allows easy upgrades for telecommunications, data centers, and networking applications. Designed with a durable high-temperature thermoplastic housing and copper alloy contacts, this connector ensures reliable, EMI-contaminated performance over numerous mating cycles. Available in various configurations, including stacked assemblies and light pipe options, it provides flexible solutions for high-density, high-performance networking environments. Purchase online today for quick, dependable delivery.
Buy TE Connectivity zSFP+ now and experience unmatched reliability and performance in high-speed network interconnections.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 23492028?
You can click on the BUY or RFQ button to purchase 23492028 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 23492028?
You can download the 23492028 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 23492028?
TE CONNECTIVITY
