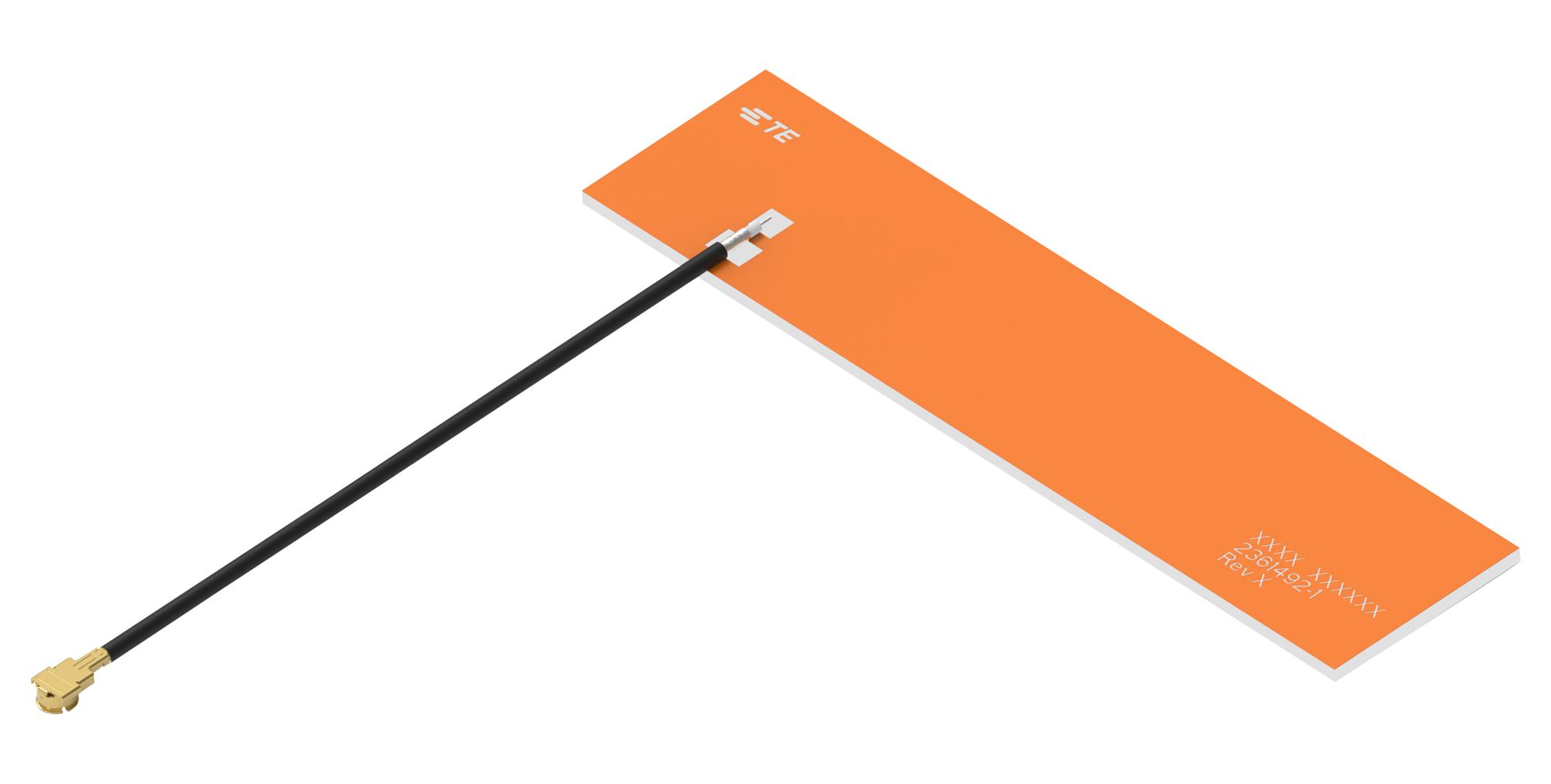

TE CONNECTIVITY 23614921 LTE Chassis Antenna
This LTE antenna is designed for chassis mounting with adhesive, featuring a 200 mm cable assembly compatible with MHF connectors. It operates across three bands—1710-2170 MHz, 2300-2700 MHz, and 698-960 MHz—supporting LTE, UMTS, WCDMA, and dual-band applications. Weighing 2.9 grams, it has a linear polarization, a gain of 4 dB, and dimensions of 65 mm length, 1.13 mm diameter body, with a cable insulation diameter of 7 mm. Its compact design ensures reliable connectivity in wireless communication systems worldwide, compliant with RoHS and ELV standards.
TE CONNECTIVITY 23614921 LTE Chassis Antenna Specifications:
- Frequency Band: 1710-2170 MHz, 2300-2700 MHz, 698-960 MHz
- Connection Type: Cable Assembly, MHF Compatible
- Number of Ports: 1
- Impedance: 50 Ω
- VSWR (Max): <4.0:1
- Gain (Max): 4 dB
- Polarization: Linear
- Mechanical Attachment: Adhesive, Chassis Mount
- Dimensions: Length 65 mm, Diameter 1.13 mm, Cable Length 200 mm
- Body Features: Weight 2.9 g, Product Width 15 mm, Height 1 mm
- Material: Not specified, designed for durability
- Operating Conditions: Suitable for global use, compliance with industry standards
- Standards and Compliance: RoHS, ELV, REACH compliant
- Application: LTE, WCDMA, UMTS, dual-band wireless communication
- Cable Insulation Diameter: Max 7 mm
Buy the Buy TE LTE Antenna Part Number 23614921 Online
Order the TE LTE Chassis Antenna with 200 mm cable assembly and MHF compatibility today. Its tri-band support from 698 MHz to 2700 MHz ensures seamless connectivity for LTE and WCDMA networks. Designed for chassis mounting with adhesive, this lightweight antenna provides a maximum gain of 4 dB, linear polarization, and sturdy construction for global wireless applications. Perfect for embedded systems requiring compact, high-performance LTE antenna solutions—shop now to enhance your wireless communication systems effortlessly.
Buy TE wireless LTE antenna with adhesive chassis mount and 200 mm cable now and experience reliable connectivity across multiple bands.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 23614921?
You can click on the BUY or RFQ button to purchase 23614921 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 23614921?
You can download the 23614921 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 23614921?
TE CONNECTIVITY
