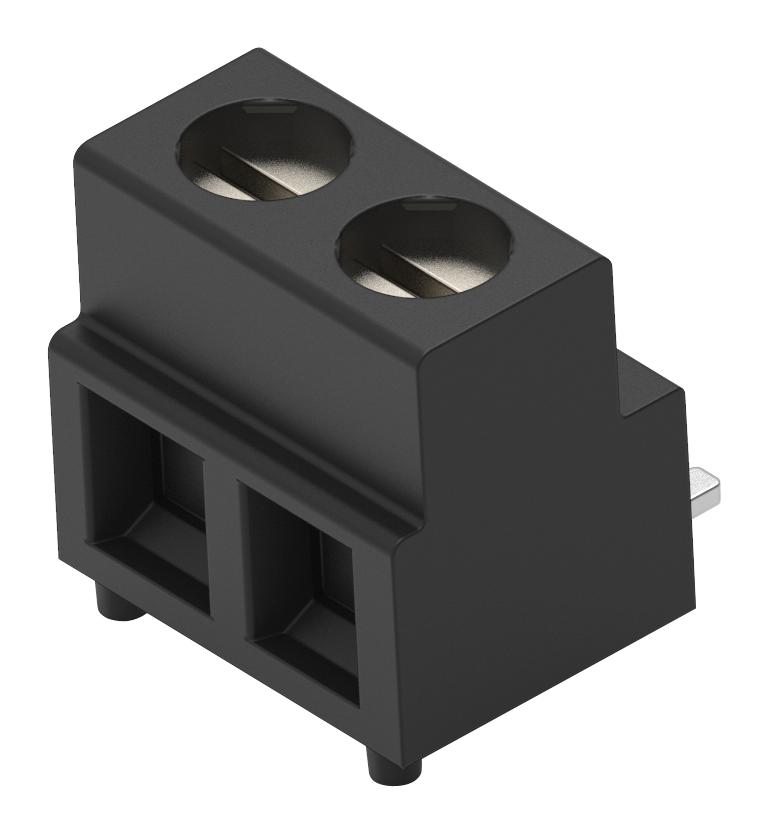

TE CONNECTIVITY 23839412 PCB Terminal Block
The PCB terminal block is a wire-to-board connection component designed for reliable electrical connections in power and signal applications. Featuring a 3.81 mm centerline pitch and a single row configuration, this header supports side wire entry and accommodates wire sizes from 28 to 18 AWG. With a maximum current rating of 7A and voltage rating of 300 VAC, it is suitable for various electronic assemblies. Made from high-temperature polyamide with tin-plated copper alloy contacts, it ensures durability, corrosion resistance, and efficient assembly in controlled environments. It is ideal for high-temperature reflow soldering and surface mounting applications, providing secure and efficient connectivity.
TE CONNECTIVITY 23839412 PCB Terminal Block Specifications:
- Connector Type: Header
- System: Wire-to-Board
- Number of Positions: 2
- Centerline (Pitch): 3.81 mm [.15 in]
- Number of Rows: 1
- Wire Entry Angle: Side
- Wire Size: 28 — 18 AWG
- Current Rating: 7A
- Voltage Rating: 300 VAC
- Body Material: High-Temperature Polyamide
- Contact Material: Copper Alloy with Tin Plating
- Mounting Type: Surface Mount
- Screw Size: M3
- Screw Material: Tin
- Operating Temperature Range: -40°C to 105°C
- Packaging: Tape & Reel, 300 pieces
- Compliance: EU RoHS, REACH, China RoHS 2
Buy the TE Series PCB Terminal Block: 23839412
Enhance your electronic projects with this high-quality PCB terminal block featuring a 3.81 mm pitch and side wire entry for easy assembly. Designed for reliable power and signal connections, it supports wire sizes from 28 to 18 AWG with a maximum current of 7A and voltage of 300 VAC. Made from durable high-temperature polyamide and copper alloy contacts with tin plating, it ensures long-lasting performance in demanding environments. Perfect for surface mount applications and high-temperature reflow soldering, this terminal block guarantees secure connections and streamlined assembly for your next project.
Order your TE Series PCB Terminal Block 23839412 today and upgrade your electronic assemblies with reliable wire-to-board connectivity solutions.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 23839412?
You can click on the BUY or RFQ button to purchase 23839412 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 23839412?
You can download the 23839412 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 23839412?
TE CONNECTIVITY
