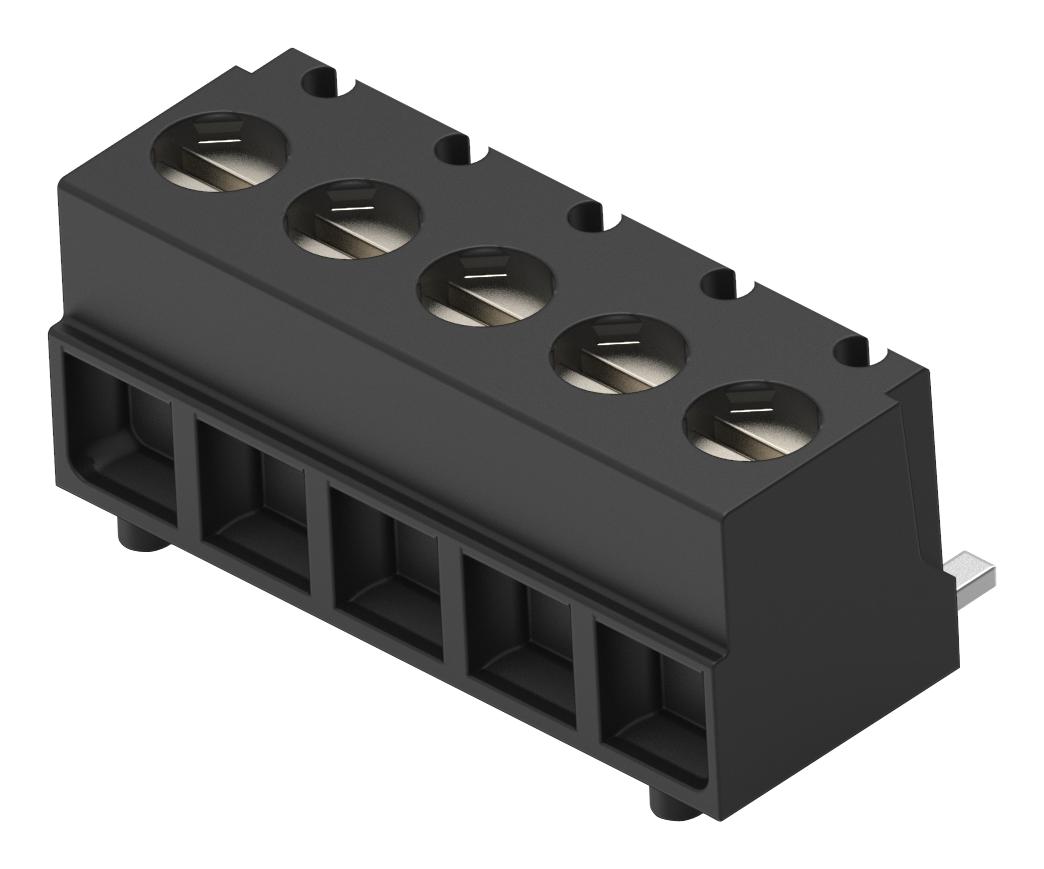

TE CONNECTIVITY 23839415 PCB Terminal Block
The PCB terminal block features a 5-position header with a 3.81mm centerline pitch, suitable for wire-to-board connections. Made from high-temperature polyamide with tin-plated copper alloy contacts, it supports wire sizes from 28 to 18 AWG. The screwless design and side wire entry facilitate easy installation. Rated for up to 7A and 300 VAC, it ensures reliable electrical performance. The compact housing is black, surface-mounted, and suitable for power and signal applications, operating from -40°C to 105°C, with UL and RoHS compliance for safety and environmental standards.
TE CONNECTIVITY 23839415 PCB Terminal Block Specifications:
- Number of Positions: 5
- Centerline (Pitch): 3.81 mm [.15 in]
- Number of Rows: 1
- Wire Size: 28 — 18 AWG
- Operating Temperature Range: -40°C to 105°C
- Voltage Rating: 300 VAC
- Current Rating (Max): 7A
- Housing Material: High Temperature Polyamide
- Housing Color: Black
- Contact Material: Copper Alloy with Tin Plating
- Mounting Type: Surface Mount
- Screw Size: M2
- Screw Plating Material: Tin
- Screw Material: Copper Alloy
- Solder Process Capability: Reflow solder capable to 260°C
- Packaging: Tape & Reel, Quantity: 300 units
- Compliance: UL Listed, EU RoHS, China RoHS 2, REACH compliant
Buy the Buy TE PCB Terminal Block Part Number 23839415 Online
Purchase the TE PCB terminal block with five positions, a 3.81mm pitch, and a screwless, high-temperature polyamide housing. Designed for power and signal applications, rated for 7A and 300VAC, it supports wire sizes from 28 to 18 AWG. Its reliable design features surface mounting and is UL and RoHS compliant, suitable for harsh environments with an operating temperature from -40°C to 105°C. Order online today for fast, secure delivery and exceptional electrical performance in your projects.
Order your TE Series23839415 PCB terminal block today and ensure reliable wire-to-board connections with high-temperature, screwless design and safety compliance.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 23839415?
You can click on the BUY or RFQ button to purchase 23839415 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 23839415?
You can download the 23839415 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 23839415?
TE CONNECTIVITY
