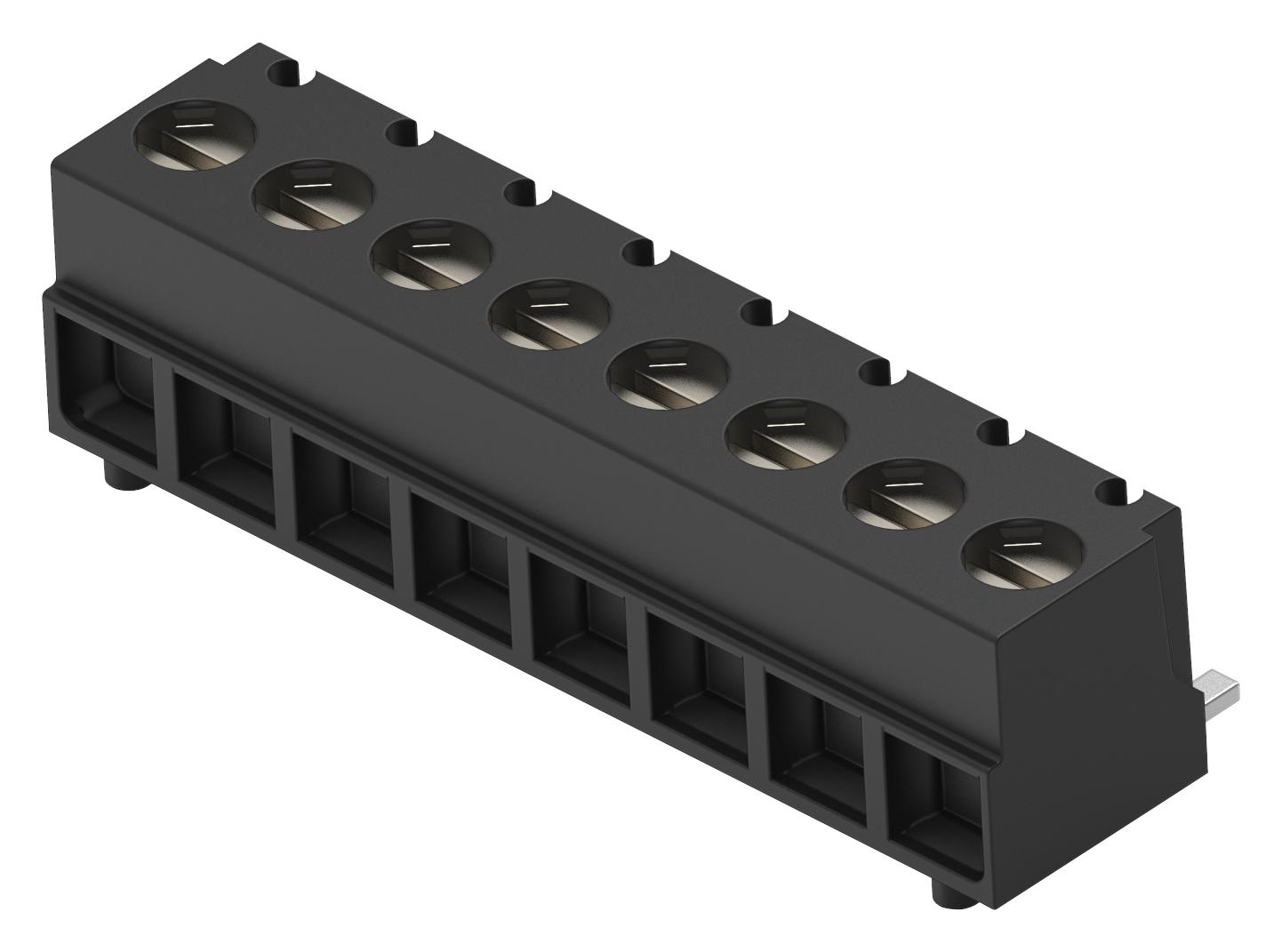

TE CONNECTIVITY 23839418 PCB Terminal Block Header
This PCB terminal block header is a wire-to-board connector designed for power and signal applications. It features 8 positions with a 3.81mm (0.15 inch) centerline pitch, suitable for wire sizes from 28 to 18 AWG. The terminal block includes side wire entry, compact 1-row design, and a black housing made of high-temp polyamide. It supports a maximum current of 7A and voltage rating of 300 VAC. Suitable for power, signal, and control circuits with board mount compatibility, these connectors are ideal for reliable, space-efficient PCB wiring solutions.
TE CONNECTIVITY 23839418 PCB Terminal Block Header Specifications:
- Number of Positions: 8
- Centerline (Pitch): 3.81 mm (0.15 in)
- Number of Rows: 1
- Wire Entry Angle: Side
- Wire Size: 28—18 AWG
- Current Rating (Max): 7A
- Voltage Rating: 300 VAC
- Housing Material: High Temperature Polyamide
- Color: Black
- Contact Base Material: Copper Alloy
- Contact Plating Material: Tin
- Mounting Type: Board Mount
- Operating Temperature Range: -40 — 105 °C (-40 — 221 °F)
- Solder Process Capability: Reflow solder capable to 260°C
- Package Quantity: 300 pieces
- Certification/Compliance: EU RoHS, China RoHS 2, REACH Candidate List
Buy the Buy TE PCB Terminal Blocks Header Wire-to-Board Part Number 23839418 Online
Purchase the TE PCB Terminal Block Header with 8 positions and 3.81mm pitch online today. Designed for power and signal applications, it features side wire entry, compact single-row design, and a durable high-temp polyamide housing. Rated 7A and 300 VAC, this connector ensures secure connections on your PCB for reliable operation in various industrial and electronic projects. Easy to install, reflow solder capable, and compliant with environmental standards, this component is ideal for efficient electrical wiring solutions.
Order your TE Series23839418 PCB Terminal Block today and secure reliable, space-efficient wiring solutions for power and signal circuits.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 23839418?
You can click on the BUY or RFQ button to purchase 23839418 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 23839418?
You can download the 23839418 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 23839418?
TE CONNECTIVITY
