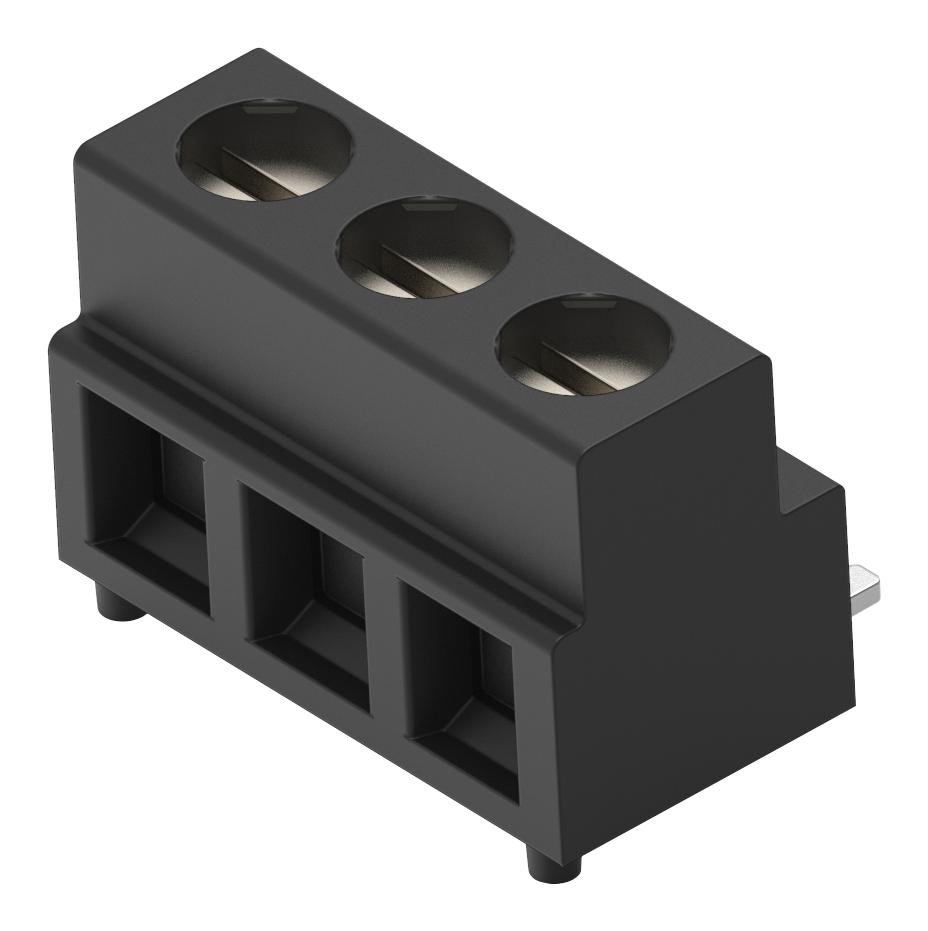

TE CONNECTIVITY 23839423 PCB Terminal Block Connector
The PCB terminal block offers a durable wire-to-board connection solution with a 3.5mm centerline pitch and a single row configuration suitable for power and signal applications. Designed with a wire entry angle on the side, it supports wire sizes from 16 to 28 AWG, rated for up to 12A at 300 VAC. Made from high-temperature polyamide with tin-plated copper alloy contacts, this component ensures reliable electrical and mechanical performance in various electronic assemblies. Ideal for power and signal distribution in industrial and electronic equipment.
TE CONNECTIVITY 23839423 PCB Terminal Block Connector Specifications:
- Centerline (Pitch): 3.5mm [.13 in]
- Number of Positions: 3
- Number of Rows: 1
- Wire Entry Angle: Side
- Wire Size: 16 — 28 AWG
- Current Rating (Max): 12A
- Voltage Rating: 300 VAC
- Housing Material: High Temperature Polyamide
- Contact Material: Copper Alloy with Tin Plating
- Mounting Type: Board Mount
- Screw Size: M2
- Temperature Range: -40 — 105 °C
- Surface Mount: Yes
- Packaging Quantity: 300
- Compatible with reflow soldering to 260°C
- RoHS, REACH, and China RoHS compliant
Buy the TE Series PCB Terminal Blocks: 3 Position Wire-to-Board Connector 2383943
Enhance your electronic assemblies with this durable PCB terminal block featuring a 3.5mm pitch, side wire entry, and high-temperature housing. Designed for reliable wire-to-board connections, it supports wire sizes from 16 to 28 AWG and is rated for up to 12A at 300 VAC. The component is suitable for industrial applications, offering robust mechanical and electrical performance. Its compact design and reflow solder compatibility make it ideal for power and signal distribution in manufacturing and repair environments. Purchase online today for seamless integration into your projects.
Buy TE Series PCB Terminal Blocks now and experience reliable power and signal connections in your electronic projects.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 23839423?
You can click on the BUY or RFQ button to purchase 23839423 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 23839423?
You can download the 23839423 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 23839423?
TE CONNECTIVITY
