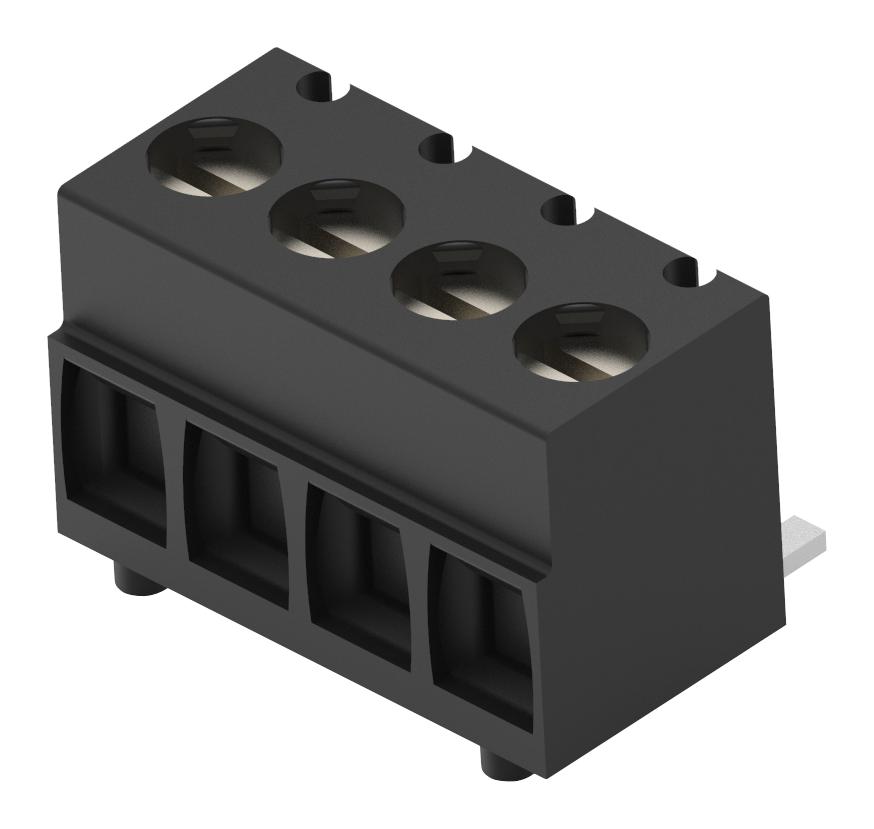

TE CONNECTIVITY 23839424 PCB Terminal Block
This PCB terminal block is a high-quality wire-to-board connector designed for robust power and signal connections. Featuring a 3.5mm centerline pitch, side wire entry, and single row configuration, it supports 28 to 16 AWG wire sizes with a maximum current of 12A and voltage rating of 300VAC. Constructed from durable copper alloy with tin plating, it is suitable for reflow soldering up to 260°C. Its high-temperature polyamide housing ensures reliable performance in various industrial and electronic applications, offering secure mounting and easy installation for power and signal routing.
TE CONNECTIVITY 23839424 PCB Terminal Block Specifications:
- Centerline (Pitch): 3.5mm [.13 in]
- Number of Positions: 4
- Number of Rows: 1
- Wire Size: 28 — 16 AWG
- Current Rating (Max): 12A
- Voltage Rating: 300 VAC
- Mounting Angle: Vertical
- Housing Material: High Temperature Polyamide
- Contact Base Material: Copper Alloy
- Contact Plating Material: Tin
- Solder Process Capability: Reflow solder capable to 260°C
- Operating Temperature Range: -40 — 105 °C [-40 — 221 °F]
- Product Color: Black
- Mounting Type: Board Mount
- Packaging Method: Tape & Reel
- Packaging Quantity: 300
Buy the TE Series PCB Terminal Blocks: Wire-to-Board 4 Position 3.5mm: 2383942-4
Order the TE PCB terminal block online today to ensure secure and efficient power connections in your electronic projects. This 4-position, wire-to-board connector features a 3.5mm pitch, supports 28 to 16 AWG wire sizes, and has a maximum current capacity of 12A and a voltage rating of 300VAC. The rugged copper alloy contacts are tin-plated for corrosion resistance, and the high-temperature polyamide housing guarantees durability under demanding conditions. Designed for easy assembly, it’s ideal for industrial equipment, power supplies, and electronic systems requiring reliable and safe connections.
Buy TE Series PCB Terminal Blocks 2383942-4 now and experience reliable power and signal connections with a durable design and easy mounting.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 23839424?
You can click on the BUY or RFQ button to purchase 23839424 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 23839424?
You can download the 23839424 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 23839424?
TE CONNECTIVITY
