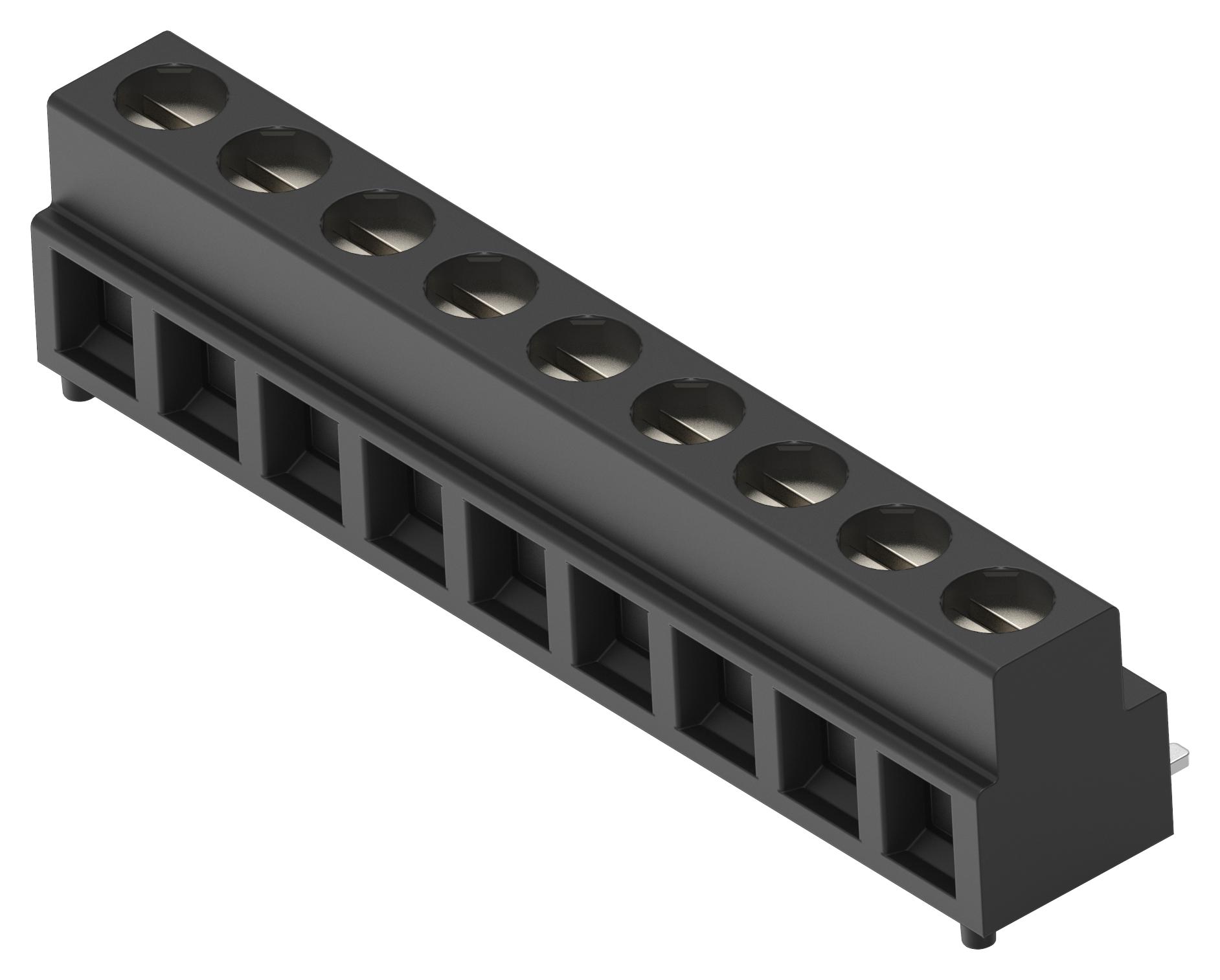

TE CONNECTIVITY 23839429 9 Position Wire-to-Board Header
The TE Connectivity 2383942-9 is a PCB terminal block header designed for secure wire-to-board connections in power and signal applications. This header features 9 positions arranged in a single row with a 3.5mm centerline. Its side wire entry angle simplifies wire termination, and it is compatible with 28-16AWG wire sizes. Constructed with a high-temperature polyamide housing and copper alloy contacts, this terminal block offers reliable performance in a variety of industrial environments. It is RoHS compliant and suitable for applications requiring a robust and space-efficient connection solution.
TE CONNECTIVITY 23839429 9 Position Wire-to-Board Header Specifications:
- Wire Protection: With
- Block Type: PCB Mount
- Terminal Block Connector Type: Header
- Connector System: Wire-to-Board
- Connector & Contact Terminates To: Printed Circuit Board
- Threaded Flange: Without
- Stacked Levels: Level 1
- Stacking Configuration: Side Stackable
- Number of Positions: 9
- Number of Rows: 1
- Wire Entry Angle: Side
- Current Rating (Max): 12 A
- Voltage Rating: 300 VAC
- Interlock: Without
- Color: Black
- Contact Mating Area Plating Material: Tin
- Contact Mount: Surface Mount
- Contact Base Material: Copper Alloy
- Contact Current Rating (Max): 12 A
- Screwless Terminal Block: No
- Mounting Angle: Vertical
- Screw Size: M2
- Screw Plating Material: Tin
- Screw Material: Copper Alloy
- Screw Flange: Without
- Connector Mounting Type: Board Mount
- Housing Color: Black
- Housing Material: High Temperature Polyamide
- Centerline (Pitch): 3.5 mm[.13 in]
- Wire Size: .08 – 1.31 mm²
- Operating Temperature Range: -40 – 105 °C[-40 – 221 °F]
- Circuit Application: Power & Signal
- Packaging Method: Tape & Reel
- Packaging Quantity: 300
