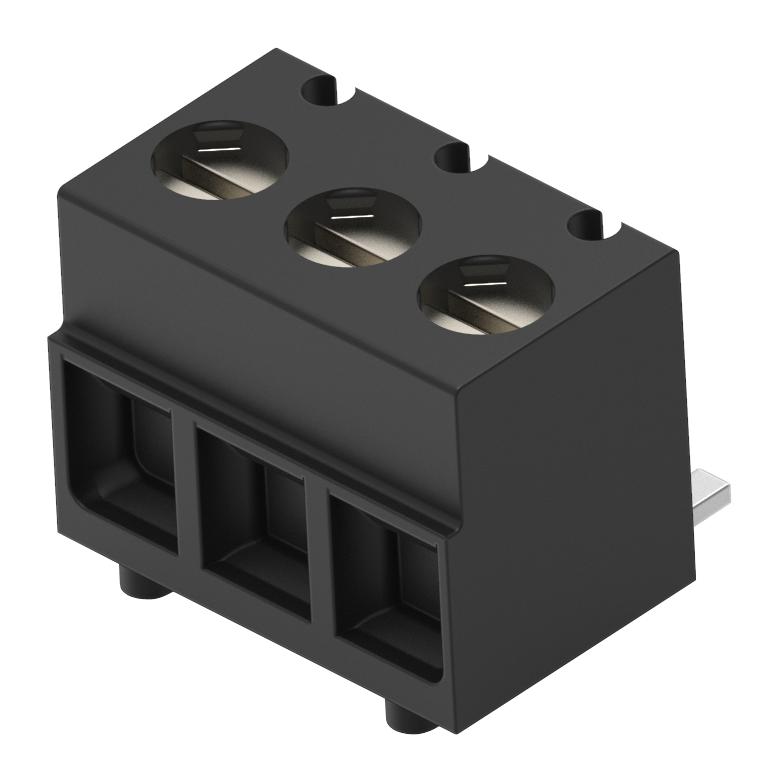

TE CONNECTIVITY 23839453 3 Position PCB Terminal Block
The TE Connectivity 2383945-3 is a PCB terminal block header specifically engineered for reliable wire-to-board connections in a variety of industrial applications. This component offers 3 positions with a 3.81mm centerline, making it suitable for compact designs. It accommodates wire sizes ranging from 28 to 16 AWG and is designed for side wire entry. The block is RoHS compliant, indicating adherence to environmental standards, and boasts a maximum current rating of 12A, ensuring efficient power and signal transmission. Its robust construction and secure mounting capabilities make it ideal for power and signal applications in diverse industries.
TE CONNECTIVITY 23839453 3 Position PCB Terminal Block Specifications:
- Wire Protection: With
- Block Type: PCB Mount
- Terminal Block Connector Type: Header
- Connector System: Wire-to-Board
- Connector & Contact Terminates To: Printed Circuit Board
- Threaded Flange: Without
- Stacked Levels: Level 1
- Stacking Configuration: Side Stackable
- Number of Positions: 3
- Number of Rows: 1
- Wire Entry Angle: Side
- Current Rating (Max): 12 A
- Voltage Rating: 300 VAC
- Interlock: Without
- Color: Black
- Contact Mating Area Plating Material: Tin
- Contact Mount: Surface Mount
- Contact Base Material: Copper Alloy
- Contact Current Rating (Max): 12 A
- Screwless Terminal Block: No
- Mounting Angle: Vertical
- Screw Size: M2
- Screw Plating Material: Tin
- Screw Material: Copper Alloy
- Screw Flange: Without
- Connector Mounting Type: Board Mount
- Housing Color: Black
- Housing Material: High Temperature Polyamide
- Centerline (Pitch): 3.81 mm[.15 in]
- Wire Size: .08 – 1.31 mm²
- Operating Temperature Range: -40 – 105 °C[-40 – 221 °F]
- Circuit Application: Power & Signal
- Packaging Method: Tape & Reel
- Packaging Quantity: 300
Buy the 2383945-3 TE CONNECTIVITY 3 Position PCB Terminal Block | myMectronic
Purchase the TE Connectivity 2383945-3 PCB Terminal Block securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 23839453?
You can click on the BUY or RFQ button to purchase 23839453 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 23839453?
You can download the 23839453 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 23839453?
TE CONNECTIVITY
