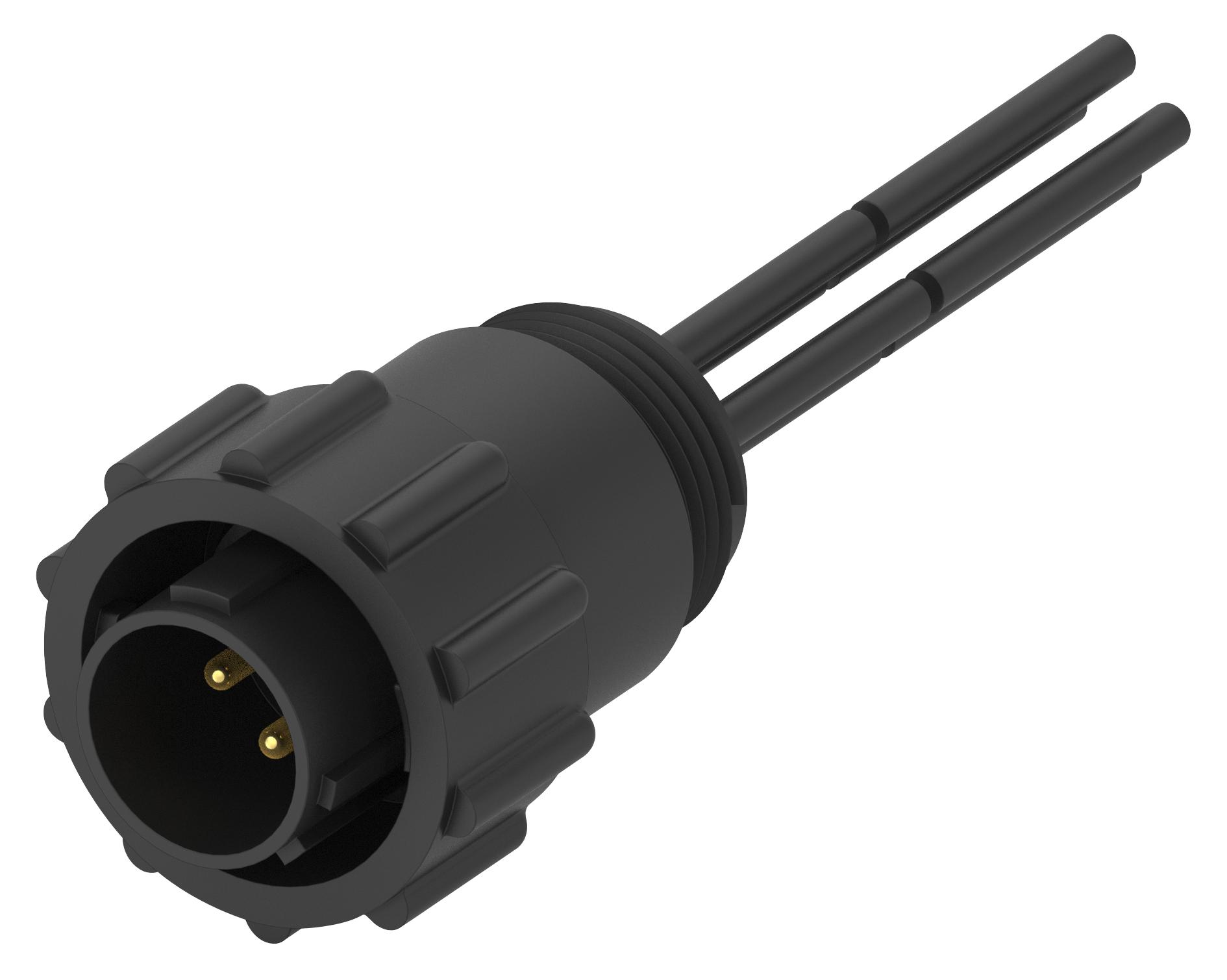

TE CONNECTIVITY 23869061 Circular Plastic Connector Cable
The TE Connectivity CPC cable assemblies are robust, cost-effective connectors designed to provide power input and output to a wide range of devices. These assemblies reduce installation time, meet harsh environment requirements, and enable high-performance designs. Featuring thermoplastic materials, built-in pin and socket protection, and removable contacts, they are ideal for industrial machinery, control cabinets, rail and transit systems, HVAC equipment, and communication equipment. With a long history of market presence, CPC cable assemblies offer a reliable and proven solution for prototyping and production applications.
TE CONNECTIVITY 23869061 Circular Plastic Connector Cable Specifications:
- Series: Series 1
- Density: Standard
- Max Signals: Up to 13A, 600V
- Operating Temperature: -55 to 105°C
- Mating Cycles: 500 (gold/silver), 250 (tin)
- Housing Material: Heat resistant thermoplastic
- Contact Material: Copper alloy with stainless steel retention spring
- Plating: Gold over palladium-nickel over nickel (mating), tin over nickel (wire crimp)
- Product Specification: 108-10024, 108-11024, 108-10024-3, 108-10024-4
- Application Specification: 114-10038
- Size: 11 to 4
- Type: STD
- Plug Part Number: 2386907
- Plug Description: CPC Plug Connector Cable
- Receptacle Part Number: 2386899
- Receptacle Description: CPC Free Hanging Receptacle Connector Cable
Buy the 2386906-1 TE CONNECTIVITY Circular Plastic Connector Cable | myMectronic
Purchase the TE Connectivity 2386906-1 CPC cable assembly securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 23869061?
You can click on the BUY or RFQ button to purchase 23869061 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 23869061?
You can download the 23869061 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 23869061?
TE CONNECTIVITY
