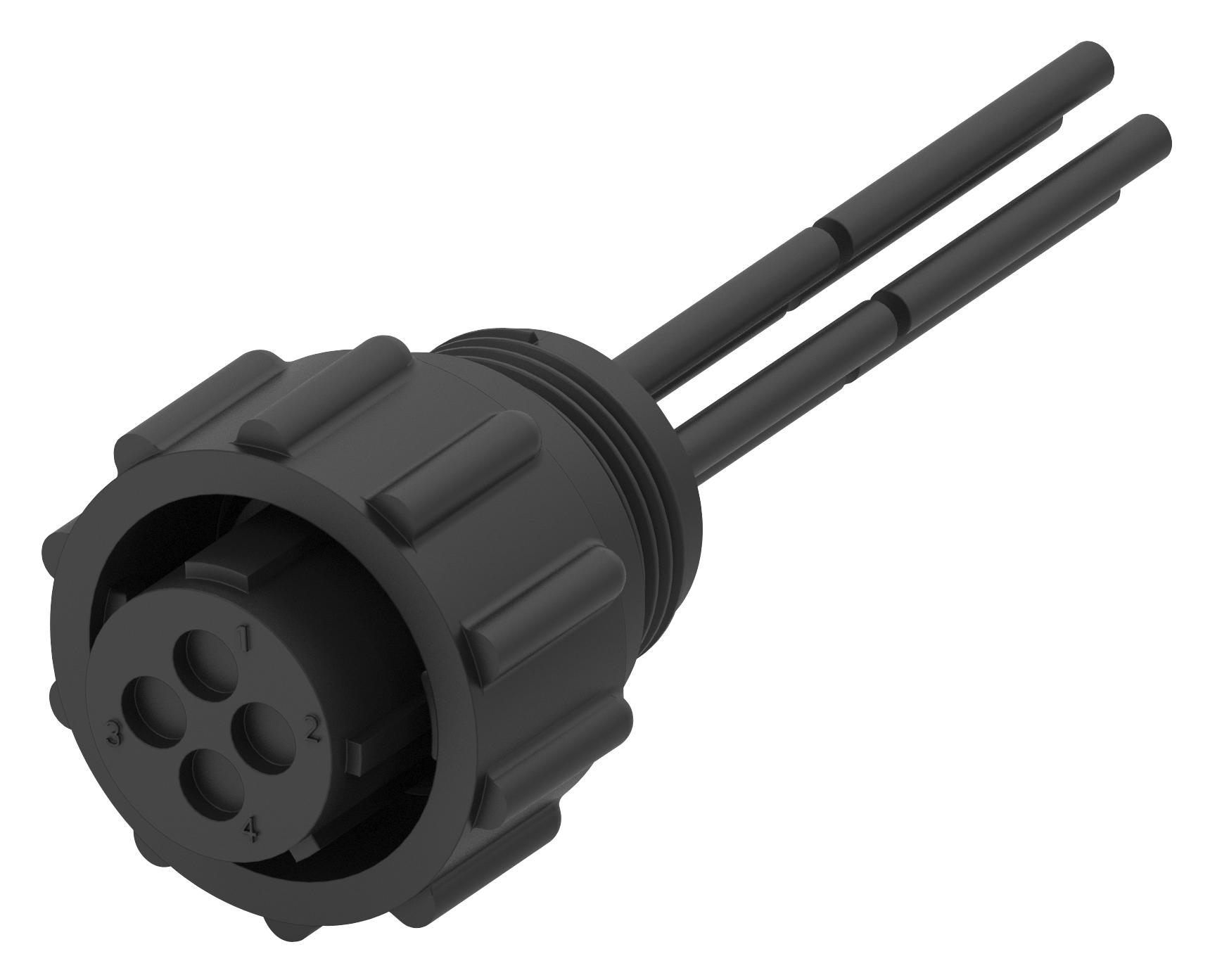

TE CONNECTIVITY 23869073 Circular Plastic Connector Cable
TE Connectivity's Circular Plastic Connector (CPC) cable assemblies offer a robust and economical solution for power input and output needs across various applications. These assemblies reduce installation time, address harsh environment requirements, and enable rapid prototyping. Featuring thermoplastic materials, built-in pin and socket protection, and removable contacts, CPC cable assemblies are ideal for industrial machinery, control cabinets, rail and transit systems, HVAC equipment, and communication equipment. They are available in standard and high-density configurations to meet diverse signal and power requirements.
TE CONNECTIVITY 23869073 Circular Plastic Connector Cable Specifications:
- Material: Housings: Heat resistant thermoplastic. Contacts: Copper alloy with stainless steel retention spring. Gold over palladium-nickel over nickel plating in the mating area, tin over nickel plating in the wire crimp area.
- Operating temperature: -55 to 105°C
- Mating cycles: 500 max (gold or silver), 250 cycles (tin)
- Series 1 - Standard density: signals up to 13A, 600V
- Series 2 - High density: signal only, 250V
- Product specification: 108-10024 connectors, 108-10042 contacts
- Application specification: 114-10038
- Size: 11 to 4
- Type: STD
- Plug: 2386907
- Description: CPC Plug Connector Cable
- Receptacle: 2386899
- Description_Receptacle: CPC Free Hanging Receptacle Connector Cable
- REV: Reverse Sex
- STD: Standard Sex
Buy the 2386907-3 TE CONNECTIVITY Circular Plastic Connector Cable | myMectronic
Purchase the TE Connectivity 2386907-3 CPC Cable Assembly securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 23869073?
You can click on the BUY or RFQ button to purchase 23869073 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 23869073?
You can download the 23869073 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 23869073?
TE CONNECTIVITY
