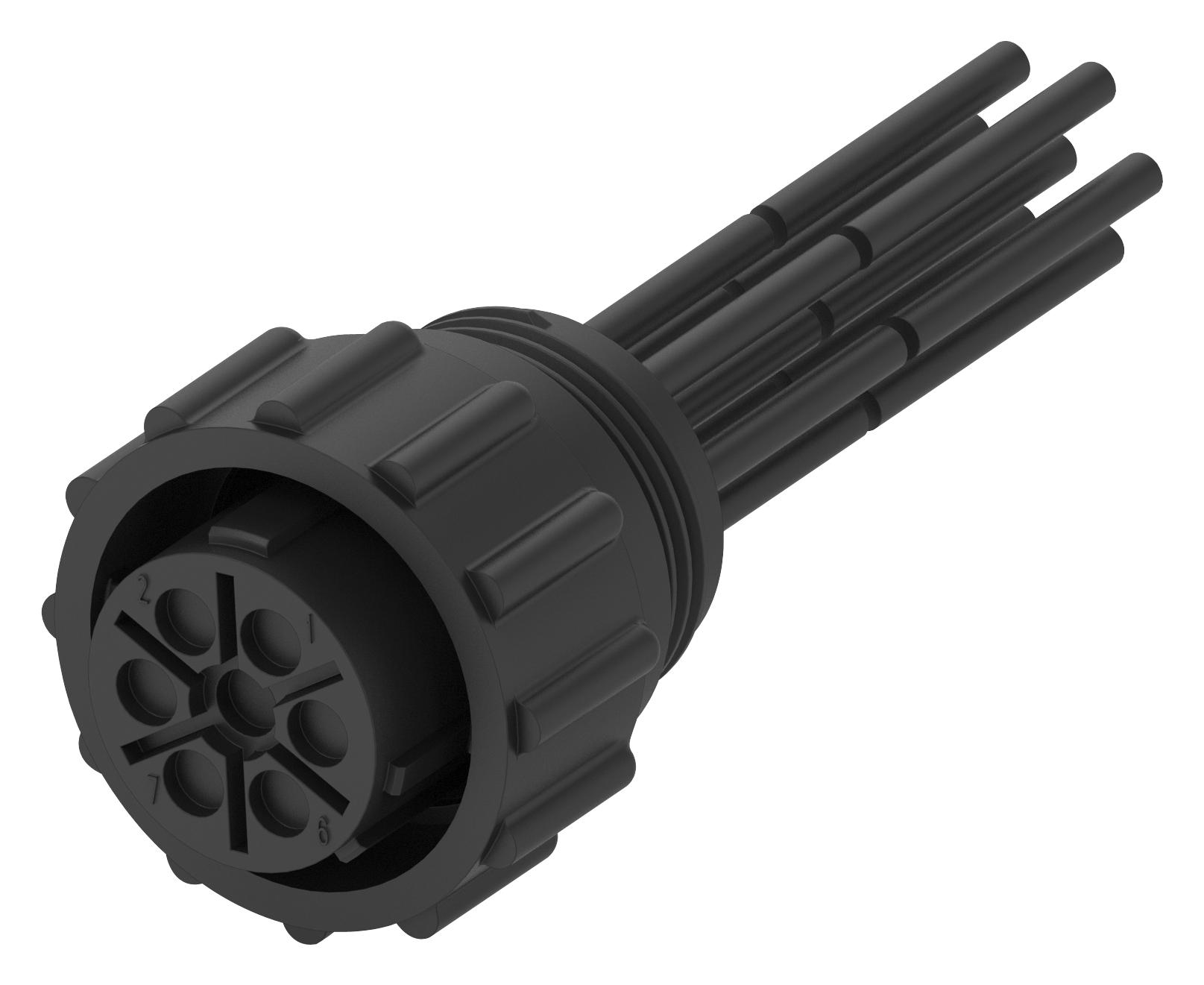

TE CONNECTIVITY 23871012 Circular Plastic Connector Cable
TE Connectivity's circular plastic connector (CPC) cable assemblies offer a robust and economical solution for power input and output needs across a wide range of applications. These assemblies reduce installation time, meet demanding space-saving requirements, and enable the use of high-performance materials, accelerating time to market. With a proven track record spanning nearly 50 years, CPC standard cable assemblies provide a reliable platform for prototyping and production, suitable for industrial machinery, control cabinets, rail systems, HVAC equipment, and communication infrastructure. They feature thermoplastic housings, built-in pin and socket protection, and removable contacts, ensuring durability and ease of use.
TE CONNECTIVITY 23871012 Circular Plastic Connector Cable Specifications:
- Material: Housings: Heat resistant thermoplastic. Contacts: Copper alloy with stainless steel retention spring. Gold over palladium-nickel over nickel plating in the mating area, tin over nickel plating in the wire crimp area.
- Operating_temperature: -55 to 105°C
- Mating_cycles: 500 max (gold or silver), 250 cycles (tin)
- Series_1_signals: Up to 13A, 600V
- Series_2_signals: Signal only, 250V
- Product_specification: 108-10024 connectors, 108-10042 contacts
- Application_specification: 114-10038
- Size: 13 to 7
- Type: STD
- Description: CPC Plug Connector Cable
Buy the 2387101-2 TE CONNECTIVITY Circular Plastic Connector Cable | myMectronic
Purchase the TE Connectivity 2387101-2 Circular Plastic Connector Cable securely and efficiently online.
