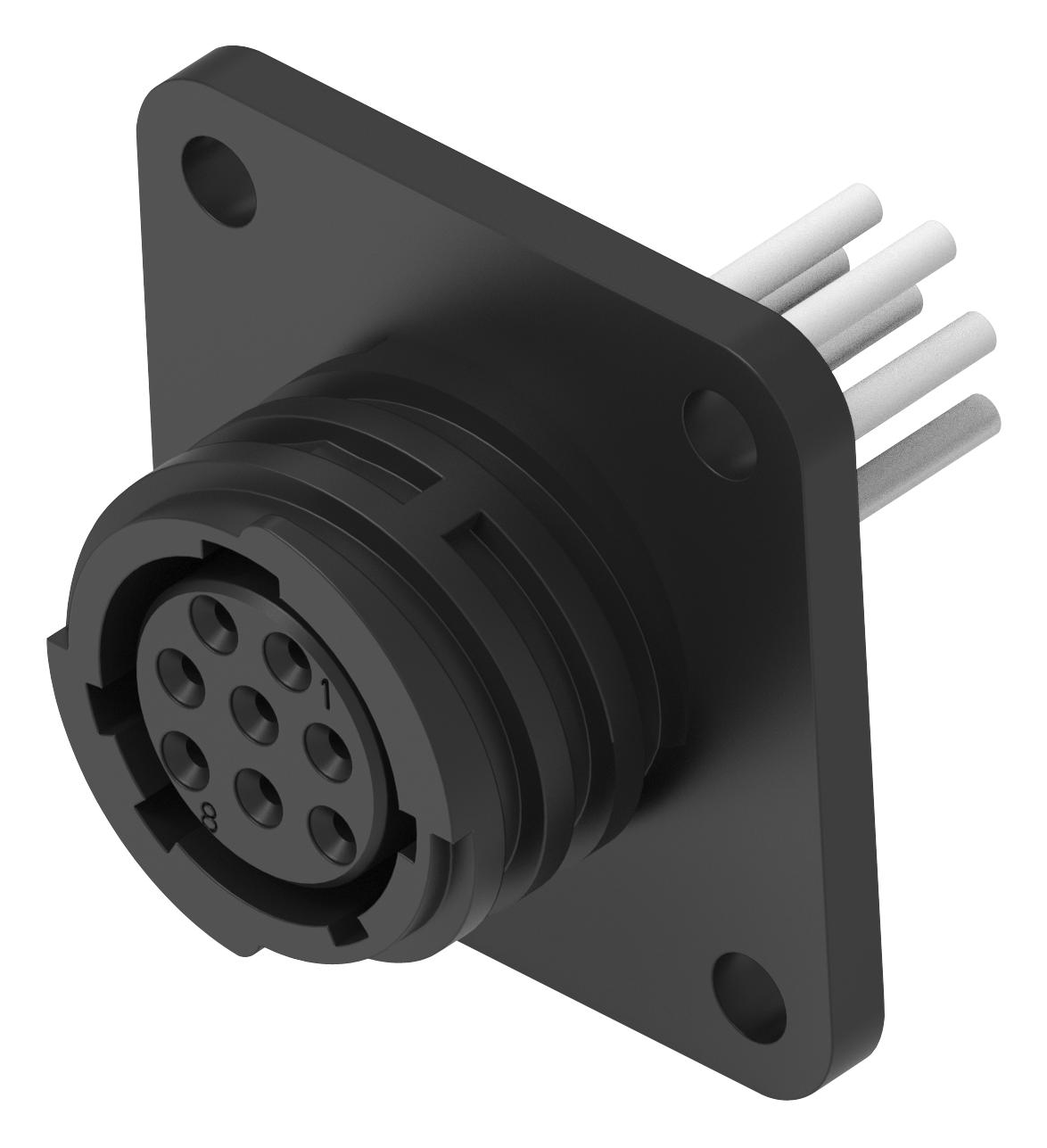

TE CONNECTIVITY 23871322 Circular Plastic Connector Cable
TE Connectivity's Circular Plastic Connector (CPC) cable assemblies provide a robust and economical solution for power input and output applications. Designed for rapid prototyping and meeting harsh environment requirements, these assemblies reduce installation time and enable high-performance designs. Featuring thermoplastic housings, built-in pin and socket protection, and removable contacts, CPC cable assemblies are ideal for industrial machinery, control cabinets, rail and transit systems, HVAC equipment, and communication equipment. They are available in standard and high-density configurations to accommodate various signal and power requirements.
TE CONNECTIVITY 23871322 Circular Plastic Connector Cable Specifications:
- Series: Series 2
- Size: 11 to 8
- Type: REV
- Plug: 2387131
- Description: CPC Plug Connector Cable
- Receptacle: 2387132
- Description_Receptacle: CPC Square Flange Receptacle Connector Cable
- Operating_temperature: -55 to 105°C
- Mating_cycles: 500 max (gold or silver), 250 cycles (tin)
- Series_1_signals: up to 13A, 600V
- Series_2_signals: signal only, 250V
- Contact_material: Copper alloy with stainless steel retention spring
- Plating_mating_area: Gold over palladium-nickel over nickel
- Plating_wire_crimp_area: Tin over nickel
- Housings: Heat resistant thermoplastic
- Product_specification: 108-10024 connectors, 108-10042 contacts
- Application_specification: 114-10038
