TE CONNECTIVITY 28340491 Wire Connector

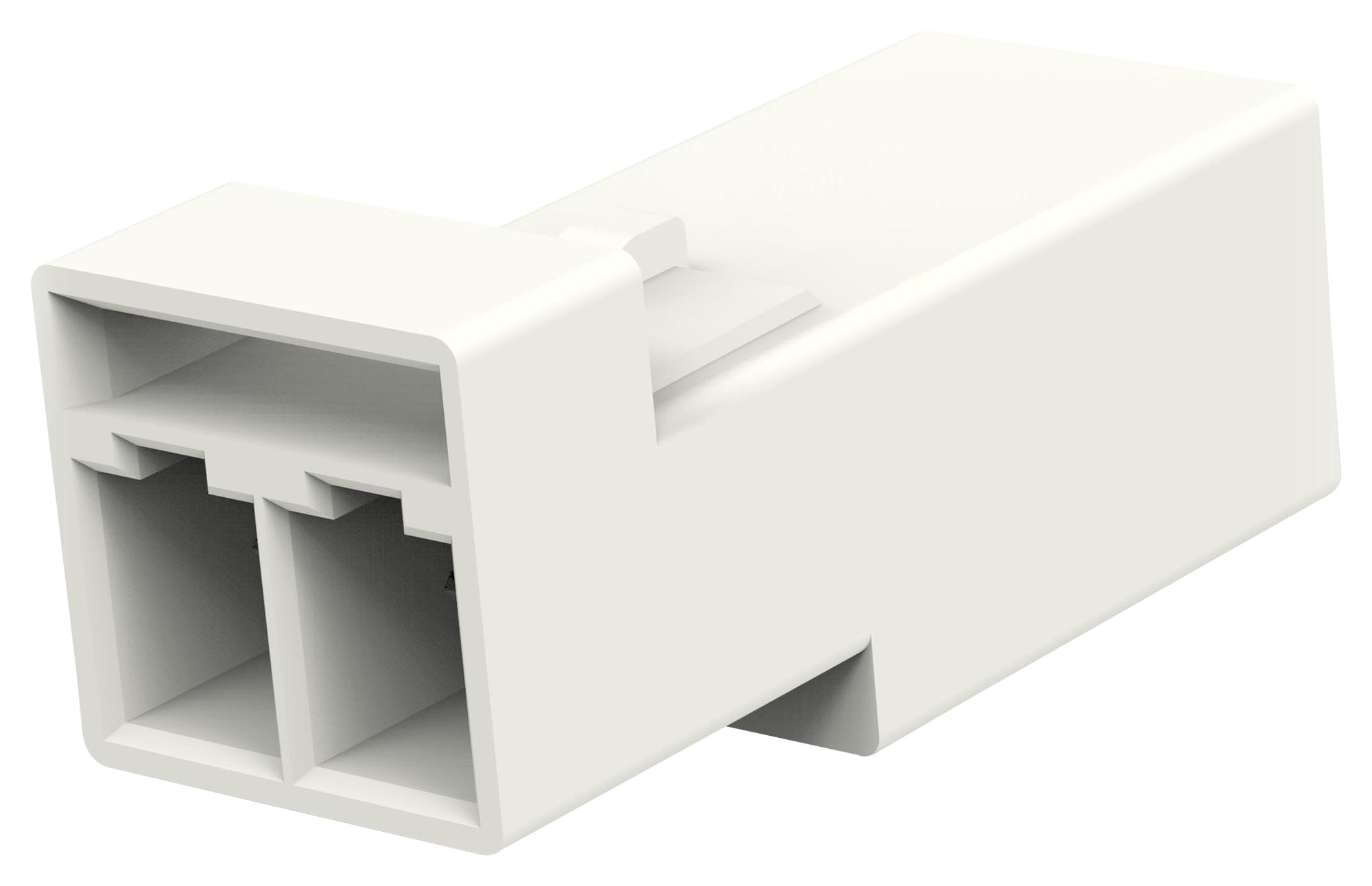

The 2 position latched wire-to-wire connector by TE Connectivity offers a compact, space-saving design suitable for indoor lighting applications. Features include poke-in termination for tool-free and quick installation, multiple color options for easy identification, and modular technology for flexible design. The connector supports various wire sizes with rated current capacities of 8A for 16 and 18 AWG, and 3A for 22 AWG. It has a maximum voltage of 600 VAC, dielectric strength of 2200 VAC, operating temperature from -40°C to +105°C, and is UL approved. Made from durable UL94 V-O rated PA housing and copper alloy contacts with tin plating.
TE CONNECTIVITY 28340491 Wire Connector Specifications:
- Current rating: 16 AWG: UL2459 @ 600V 8A; 18 AWG: UL2459 @ 600V 5A; 22 AWG: UL2459 @ 600V 3A
- Voltage rating: 600 VAC Max.
- Dielectric strength: 2200 VAC
- Operating Temperature: -40°C to +105°C
- Material: Housing: PA, UL94 V-O; Contact: Copper Alloy with Tin plating
- Durability: 10 cycles
- Color options: Black, Orange, Red, White
- UL approvals: UL1977 E28476, UL2459 E308110
- Dimensions: Compact size designed for space-saving applications
Buy the TE Series 2 Position Latched Wire Connector: 28340491
Order the TE Connectivity 2 position latched wire connector online today for reliable and easy wiring solutions. Its compact design and poke-in termination enable quick, tool-free installation, making it ideal for space-constrained indoor lighting setups. Available in multiple colors for easy identification, this connector supports various wire sizes with rated currents up to 8A and a maximum voltage of 600 VAC. Crafted with durable materials, it offers excellent dielectric strength and temperature tolerance. Enhance your electrical projects with this versatile, UL-approved wire connector for dependable performance.
Get TE Connectivity 28340491 today—built for precise, space-saving wiring and long-lasting durability.
