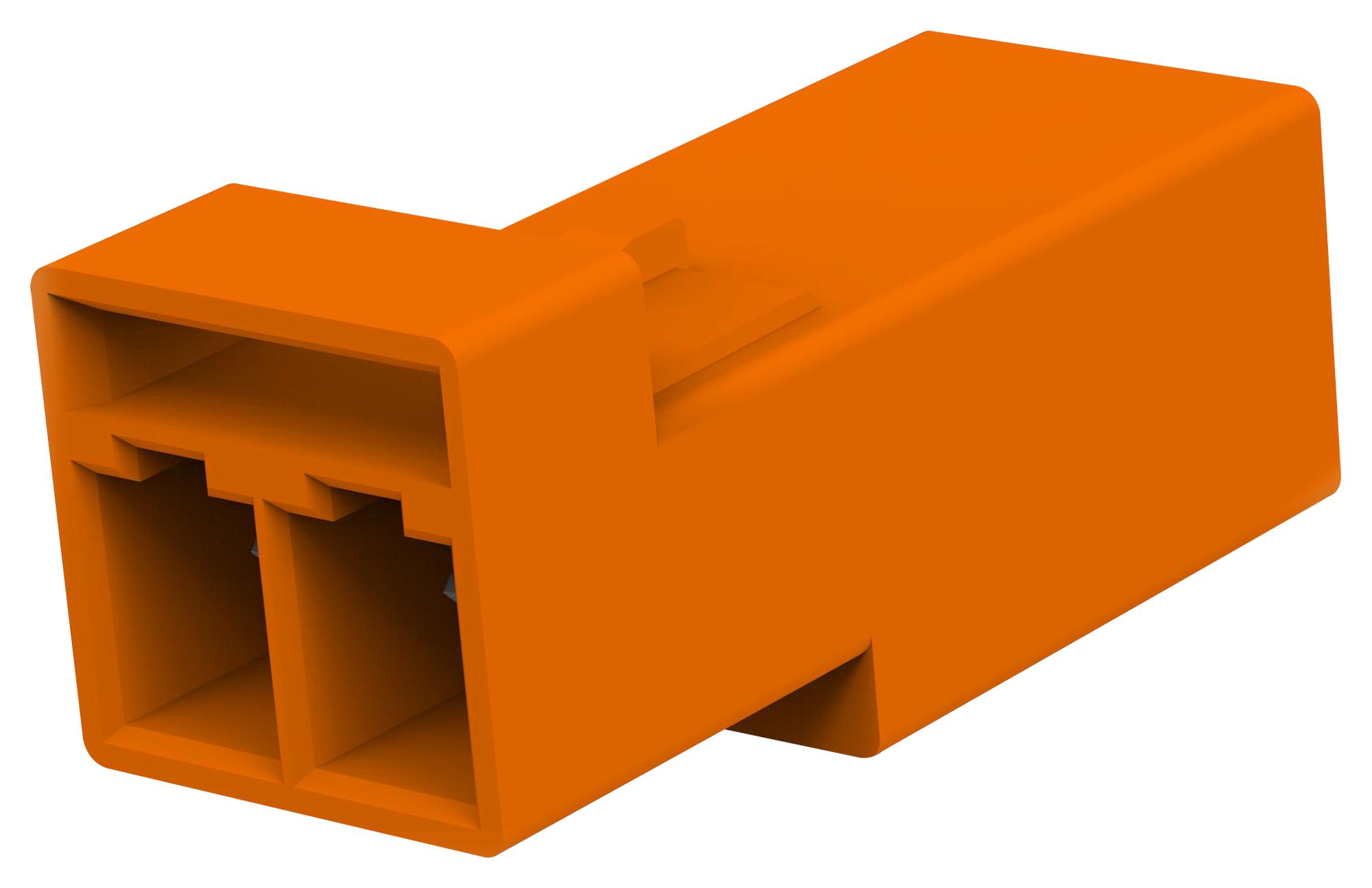

TE CONNECTIVITY 28340493 Wire-to-Wire Connector
This 2 position latched wire-to-wire connector by TE Connectivity features poke-in termination for quick, tool-free installation. Its compact design is perfect for space-constrained indoor lighting applications, offering easy identification through four color options. Made from durable materials, it supports a maximum voltage of 600 VAC, and has a dielectric strength of 2200 VAC. Suitable for various wire gauges including 16, 18, and 22 AWG, it provides reliable electrical performance with a temperature range of -40°C to +105°C and a lifecycle of 10 cycles, ensuring efficiency and safety in electrical assemblies.
TE CONNECTIVITY 28340493 Wire-to-Wire Connector Specifications:
- Current rating: 16 AWG: UL2459 @ 600V 8A; UL1977 @ 600V 8A
- 18 AWG: UL2459 @ 600V 5A; UL1977 @ 600V 8A
- 22 AWG: UL2459 @ 600V 3A; UL1977 @ 600V 3A
- Voltage rating: 600 VAC Max.
- Dielectric strength: 2200 VAC
- Operating temperature: -40°C to +105°C
- Mechanical durability: 10 cycles
- Housing: PA, UL94 V-O
- Contact material: Copper Alloy with Tin plating
- Color options: Black, Orange, Red, White
- Application Specification: 114-137159
- Product Specification: 108-137159
Buy the Buy TE Connectivity 2 Position Latched Wire-to-Wire Connector Part Number 28340493 Online
Secure your electrical projects with the TE Connectivity wire-to-wire connector, designed for quick and tool-free installation. Its compact size saves space and makes it ideal for indoor lighting systems. Available in four distinct colors, the connector supports wire gauges from 16 to 22 AWG and offers a maximum voltage of 600 VAC. Featuring UL approval, dielectric strength of 2200 VAC, and a temperature range of -40°C to +105°C, ensure durability and safety across various electrical applications. Order online today for fast delivery and reliable performance.
Order your TE Connectivity 28340493 2 Position Latched Wire-to-Wire Connector today and ensure reliable, space-saving electrical connections for indoor lighting projects.
