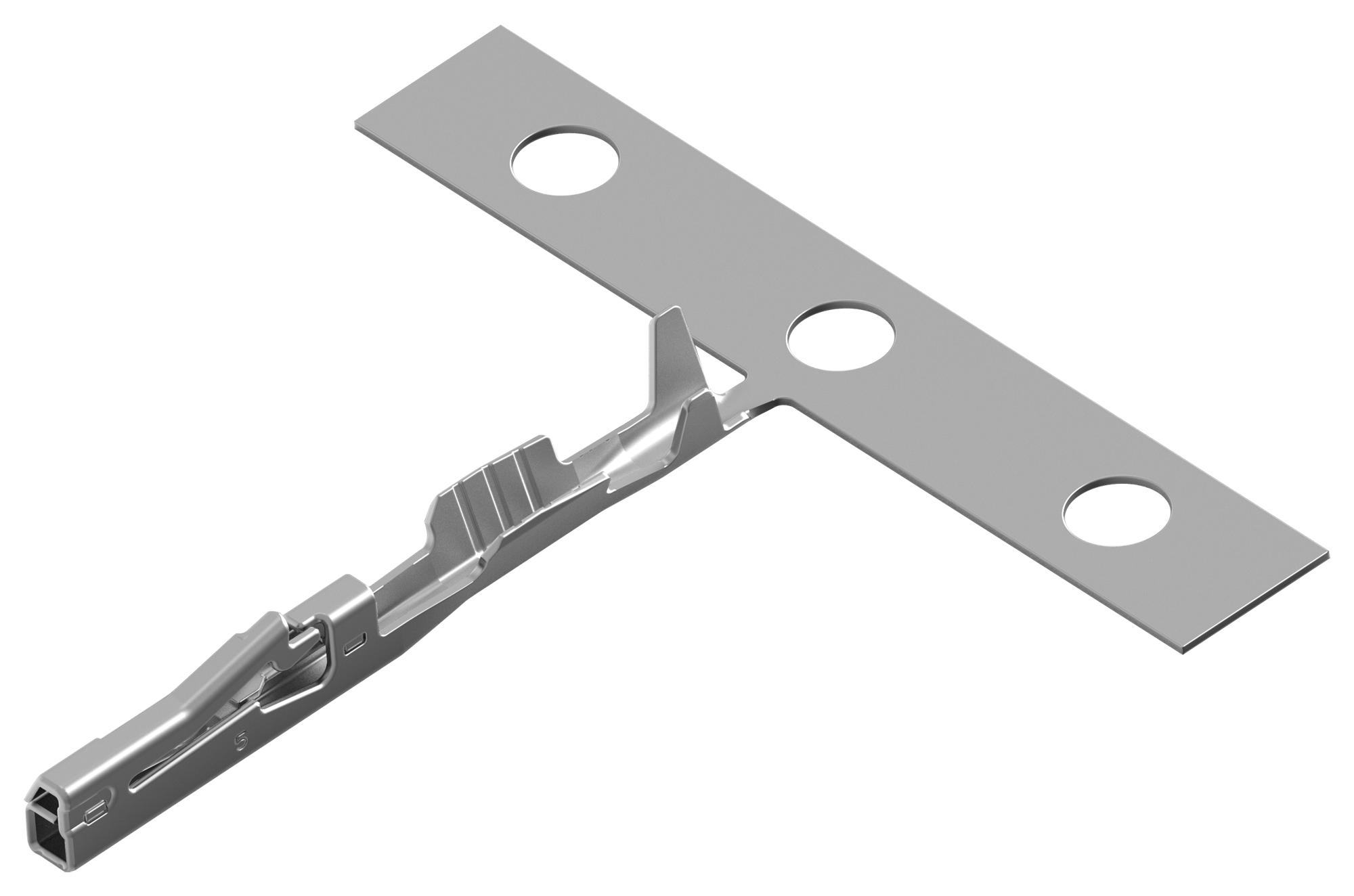

TE CONNECTIVITY 28344645 Dynamic Mini Series Connector
The TE Connectivity Dynamic Mini Series connectors are designed for signal transmission on PCBs, offering a compact and efficient solution. These connectors provide a lower profile than existing Dynamic D1000 connectors while maintaining the same performance, meeting LV 214 test requirements. The positive audible locking feature simplifies installation and maintenance, while the high-temperature nylon housing enables SMT reflow soldering for faster system assembly and reduced costs. The robust design, featuring a 'second lock' and protective latching concept, ensures high reliability and prevents accidental unlatching. Ideal for applications requiring smaller sizes but demanding performance, these connectors are suitable for new energy, automation, machinery, robotics, servo drives, and process controllers.
TE CONNECTIVITY 28344645 Dynamic Mini Series Connector Specifications:
- Rated Current: 3A
- Rated Voltage: 250V AC / 125V DC
- Withstand Voltage: 650V AC / 1000V DC
- AWG: 22-26
- Pitch: 1.80mm
- Durability: 30 cycles
- Position: 12, 16 & 20
- Operating Temperature: -40~125°C
- Contact: Copper alloy
- Plating: Tin over Nickel
- HDR Housing: Nylon
- Rec Housing: PBT
- Spacer: PBT
- Solder Peg: Copper alloy
- Product Specification: 108-137443
- Application Specification: 114-137527
- Nominal cross-section Insulation DIA: 0.85-1.10 mm
- DIM A (Header): 19.50, 23.10, 26.70
- DIM A (Receptacle): 19.30, 22.90, 26.50
- 180° DIM A (Receptacle): 19.30, 22.90, 26.50
Buy the 2834464-5 TE CONNECTIVITY Dynamic Mini Series Connector | myMectronic
Purchase the TE Connectivity 2834464-5 Dynamic Mini Series connector securely and efficiently online.
Buy Now
