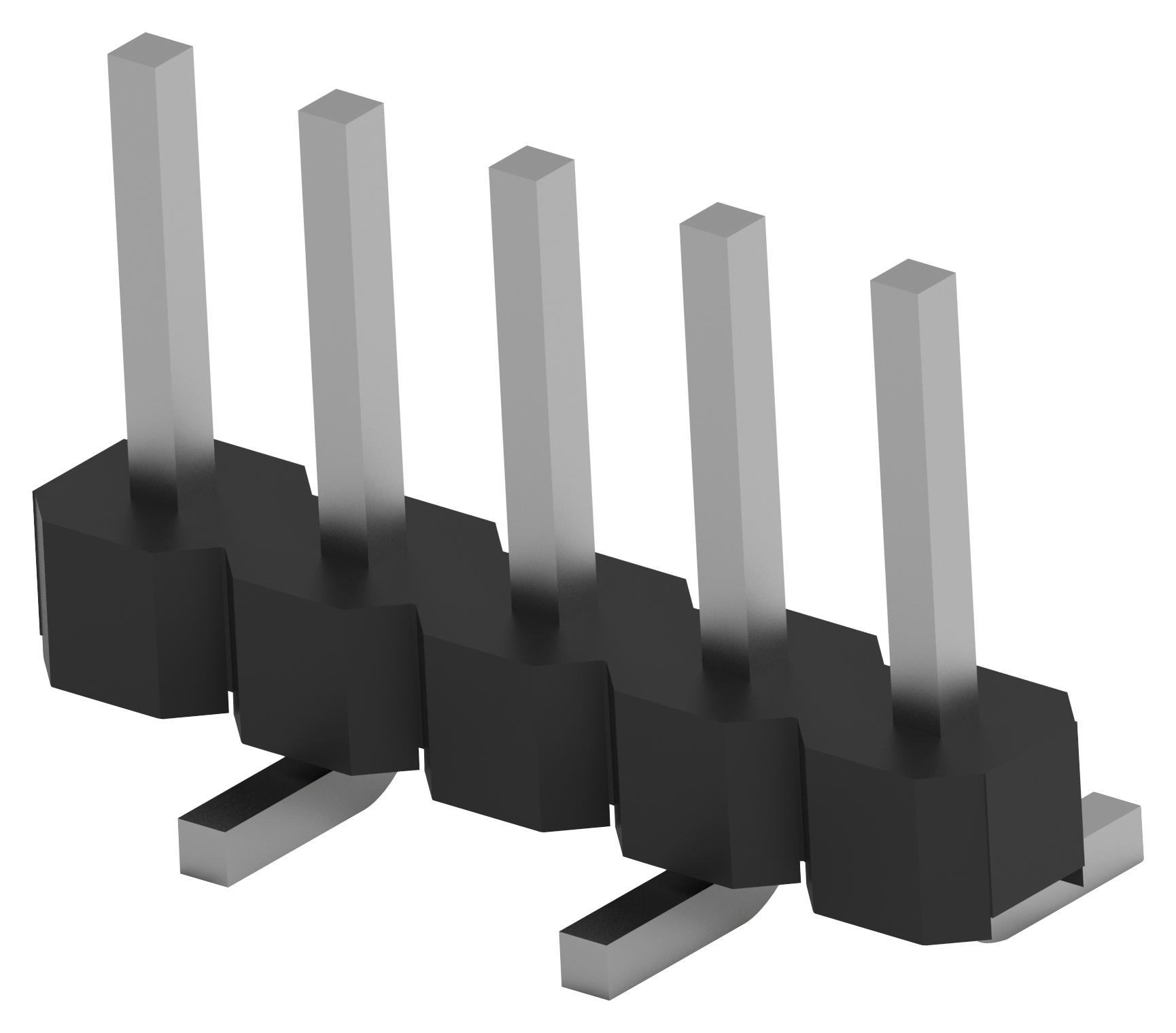

TE CONNECTIVITY 28421026 Industrial Breakaway Header
The AMPMODU 2mm breakaway header is a compact, space-saving connector designed for industrial applications such as PLCs, servo drives, and automation systems. Featuring 0.50mm square pins and a 2.00mm centerline, it supports PCB thicknesses from 1.6mm to 2.4mm. The header is compatible with automated surface mount and through-hole assembly methods. Made from high-temperature UL 94V-0 plastic with brass contacts plated in gold or tin, it offers reliable performance, up to 2A current, and withstands temperatures from -40°C to 125°C, ensuring durability and stability.
TE CONNECTIVITY 28421026 Industrial Breakaway Header Specifications:
- Centerline: 2.00mm [0.079]
- Contact Dimension: 0.50mm [0.02"] square pins
- Number of Positions: 2 to 25 per row, single or double row options
- PCB Thickness: 1.6mm to 2.4mm [0.063 to 0.094 inches]
- Operating Temperature: -40°C to 125°C
- Material: High-temperature plastic, UL 94V-0, black
- Contact Material: Brass with gold or tin plating
- Current Rating: 2A (max.)
- Dielectric Withstanding Voltage: 650VAC
- Operating Voltage: 125VDC
- Reflow Solder Capability: Up to 260°C
- Environmental Compliance: RoHS & REACH compliant
- Vibration Resilience: No electrical discontinuity greater than 1 microsecond, UL certified
Buy the TE Connectivity Series AMPMODU 2mm Breakaway Header: 28421026
Enhance your industrial automation projects with the TE Connectivity AMPMODU 2mm Breakaway Header. Engineered for reliability and space-saving design, it supports PCB thicknesses from 1.6mm to 2.4mm and handles currents up to 2A. Suitable for surface mount and through-hole assembly, this header features brass contacts plated with gold or tin for superior conductivity and corrosion resistance. Its robust plastic housing withstands temperatures from -40°C to 125°C, making it ideal for PLCs, servo drives, and control systems. Order online now for fast delivery and seamless integration into your manufacturing process.
Get TE Connectivity 28421026 today—built for precision and long-lasting durability in industrial automation settings.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 28421026?
You can click on the BUY or RFQ button to purchase 28421026 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 28421026?
You can download the 28421026 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 28421026?
TE CONNECTIVITY
