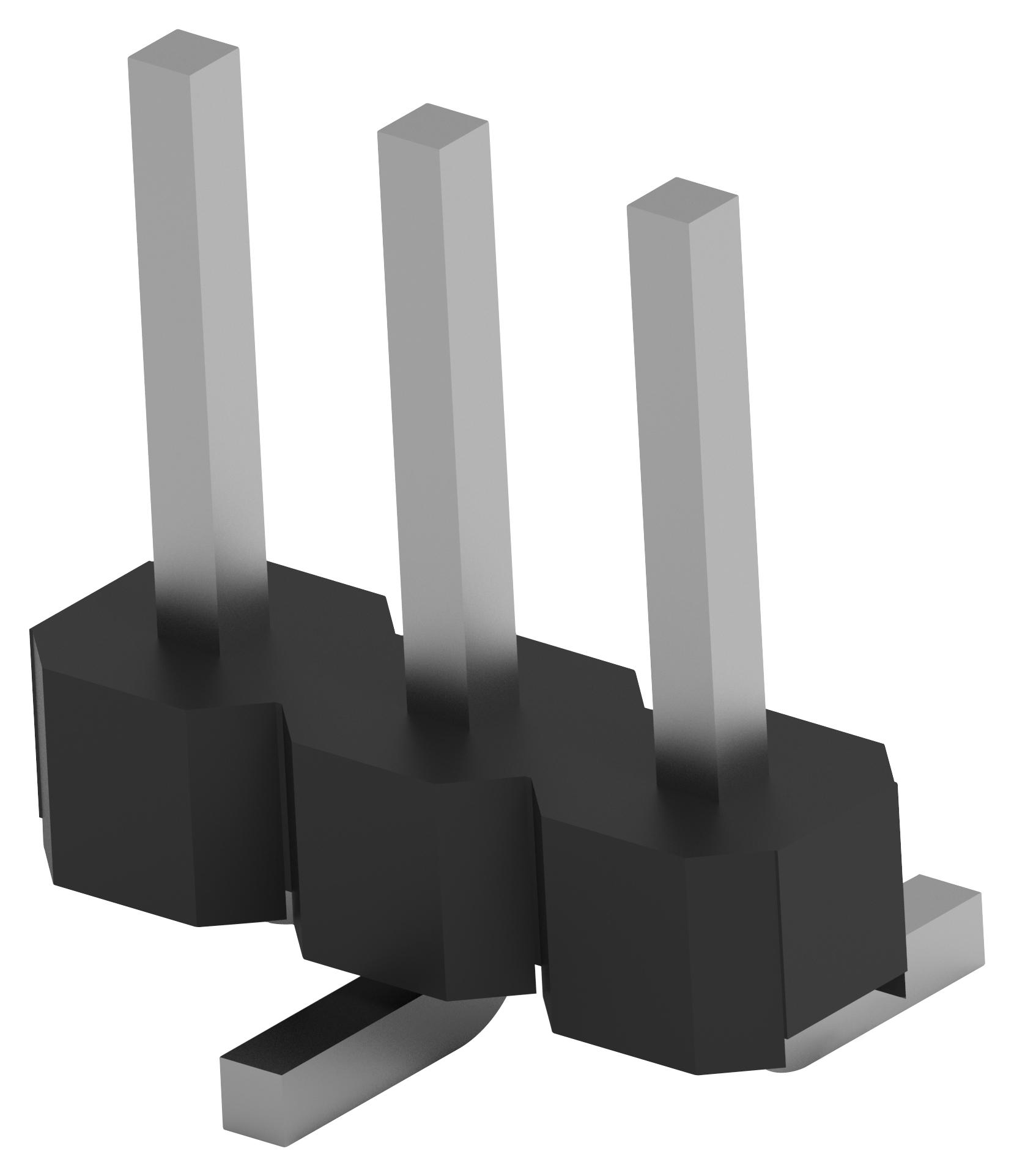

TE CONNECTIVITY 28421043 Breakaway Header
The TE Connectivity AMPMODU 2mm Breakaway Header is a compact, space-saving connector designed for versatile PCB applications including industrial control systems, automation, and instrument testing. Featuring 2-25 positions per row with 0.50mm square pins, it supports both surface-mount and through-hole assembly methods. Its robust construction includes high-temperature plastic housing, gold or tin plating, and a dielectric withstand voltage of 650VAC. Suitable for operating temperatures from -40°C to 125°C, it ensures reliable electrical performance in demanding industrial environments.
TE CONNECTIVITY 28421043 Breakaway Header Specifications:
- Centerline: 2.00mm [0.079]
- Contact Dimension: 0.50mm [0.02"] square pins
- Connector Size: 2-25 positions per row, single and double row options
- PCB Thickness: 1.6mm to 2.4mm [0.063" to 0.094"]
- Current Rating: 2A maximum
- Plating: 0.76um [30p"] Gold, 0.38μm [15u"] Gold, Tin
- Dielectric Withstanding Voltage: 650VAC
- Operating Voltage: 125VDC
- Housing Material: High Temperature Plastic, UL 94VO, Black
- Contact Material: Brass
- Operating Temperature: -40°C to 125°C
- Reflow Solder Capability: Up to 260°C
- Environmental: Operating Environment Class III
- Certifications: ROHS & REACH Compliant
Buy the Buy TE Connectivity AMPMODU 2mm Breakaway Header Part Number 28421043 Online
Enhance your PCB assemblies with the TE Connectivity Breakaway Header. Featuring space-saving 2mm pitch, high-temperature plastic housing, and reliable gold or tin plating, this connector is perfect for industrial controls, automation, and instrumentation. Its versatile configuration supports both surface-mount and through-hole mounting, facilitating automated manufacturing processes. Certified ROHS & REACH compliant with a dielectric withstand voltage of 650VAC, it performs reliably in demanding environments from -40°C to 125°C. Ensure durable, efficient, and flexible connections for your industrial applications by ordering online today.
Buy TE Connectivity 28421043 now and experience unmatched reliability and space-saving performance for industrial automation and PCB assembly.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 28421043?
You can click on the BUY or RFQ button to purchase 28421043 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 28421043?
You can download the 28421043 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 28421043?
TE CONNECTIVITY
