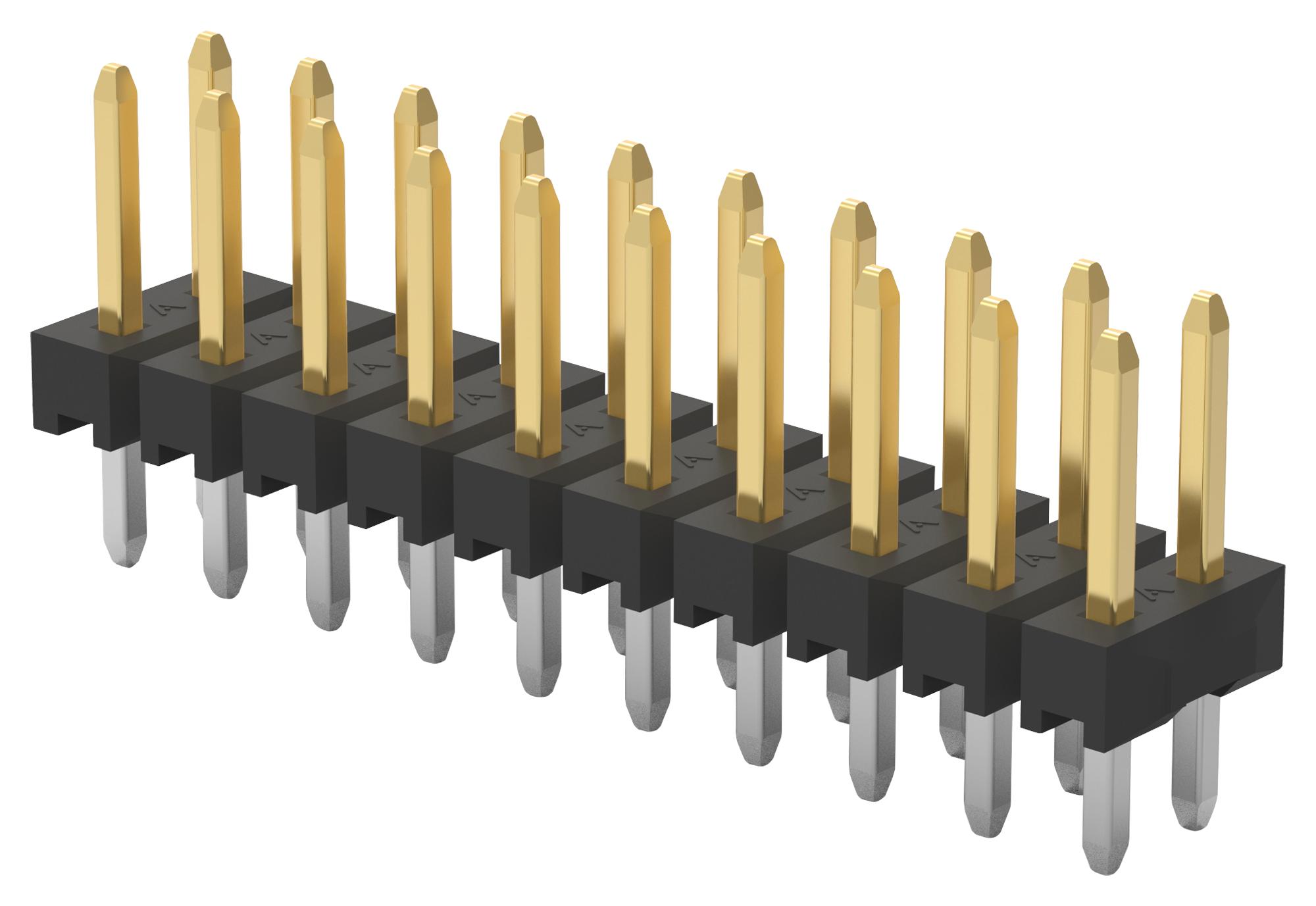

TE CONNECTIVITY 28421266 PCB Header
The TE Connectivity AMPMODU 2mm breakaway header is a high-density, space-saving connector designed for PCB assembly in industrial automation, control systems, and instrumentation. Featuring a 2.00mm centerline, 0.50mm square contact pins, and compatibility with surface mount and through-hole methods, it offers reliable electrical performance with a 2A current rating. Constructed with high-temperature plastic and brass contacts, this header withstands operating temperatures from -40°C to 125°C and reflow temperatures up to 260°C. It supports applications requiring RoHS and Reach compliance, vibration resistance, and robust connection stability.
TE CONNECTIVITY 28421266 PCB Header Specifications:
- Centerline: 2.00mm [0.079]
- Contact Dimension: 0.50mm [0.02"] square pins
- Connector Size: 2-25 positions per row, available in single and double row
- PCB Thickness: 1.6mm to 2.4mm [0.063” to 0.094”]
- Current Rating: 2A (max.)
- Plating: 0.76um [30p"] Gold, 0.38um [15u"] Gold, Tin
- Dielectric Withstanding Voltage: 650VAC
- Operating Voltage: 125VDC
- Housing Material: High Temperature Plastic, UL 94VO, Black
- Contact Material: Brass
- Operating Temperature: -40°C to 125°C
- Reflow Solder Temperature: Capable to 260°C
- Environmental Compliance: RoHS & REACH
- Vibration Resistance: No electrical discontinuity greater than 1 microsecond as per UL certification
Buy the Buy TE Connectivity AMPMODU 2mm Breakaway Header Part Number 28421266 Online
Order the TE Connectivity PCB header with 2mm pitch online today. This space-efficient connector is ideal for industrial control, instrumentation, and automation systems. With high-temperature plastic housing, gold or tin plating, and a current rating of 2A, it ensures reliable electrical connections under demanding conditions. Compatible with surface mount and through-hole assembly, it supports RoHS and REACH compliance, and withstands temperatures from -40°C to 125°C, making it perfect for rigorous industrial applications. Get yours now for seamless PCB integration and high-performance connectivity.
Buy TE Connectivity 28421266 now and experience unmatched reliability and high-density PCB connectivity with space-saving design and robust performance.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 28421266?
You can click on the BUY or RFQ button to purchase 28421266 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 28421266?
You can download the 28421266 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 28421266?
TE CONNECTIVITY
