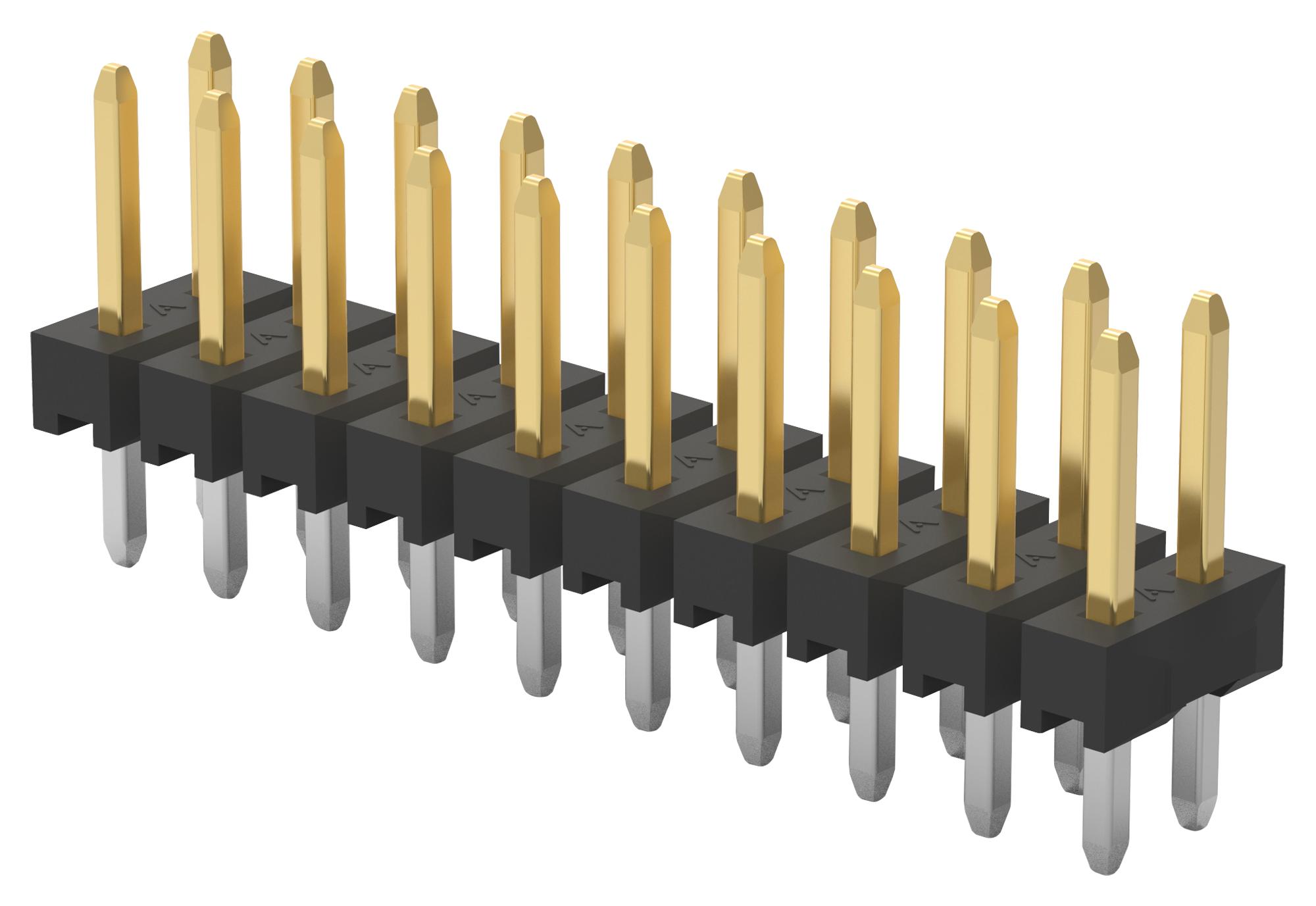

TE CONNECTIVITY 28421285 Industrial Connector
The TE Connectivity AMPMODU 2mm breakaway header offers space-efficient, reliable Board-to-Board and Wire-to-Board connections with a 2mm centerline, suitable for industrial automation and control applications. It supports automated surface mounting, through-hole reflow, and traditional mounting methods. The connector features brass contacts with gold or tin plating, a maximum current of 2A, dielectric withstand voltage of 650VAC, and operates in temperatures from -40°C to 125°C. Its robust design ensures durable performance in harsh environments, making it ideal for PLCs, servo drives, and test equipment.
TE CONNECTIVITY 28421285 Industrial Connector Specifications:
- Centerline: 2.00mm [0.079]
- Contact Dimension: 0.50mm [0.02"] square pins
- Number of Positions: 2-25 per row, available in single and double row configurations
- PCB Thickness Range: 1.6mm to 2.4mm [0.063" to 0.094"]
- Contact Material: Brass with gold or tin plating
- Current Rating: 2A (max.)
- Dielectric Withstanding Voltage: 650VAC
- Operating Voltage: 125VDC
- Housing Material: High-temperature plastic, UL 94VO, black
- Operating Temperature: -40°C to 125°C
- Reflow Solder Capable: Up to 260°C
- RoHS & REACH compliant
- Vibration resistance: No electrical discontinuity greater than 1 microsecond
Buy the TE Connectivity Series AMPMODU 2mm Breakaway Header: 28421285
Discover the high-quality TE Connectivity AMPMODU 2mm breakaway header, designed for robust PCB connections in industrial and automation systems. Its space-saving 2mm centerline allows for more functionality while maintaining reliability. Suitable for surface mounting, through-hole reflow, and traditional mounting methods, ensuring versatility in manufacturing. The brass contacts feature gold or tin plating for excellent corrosion resistance and electrical performance. With a maximum current of 2A and a dielectric withstand voltage of 650VAC, this connector ensures dependable operation even in demanding environments, making it a preferred choice for engineers and technicians.
Order your TE Connectivity Series AMPMODU 2mm breakaway header today and ensure reliable, space-efficient connections for your industrial automation needs.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 28421285?
You can click on the BUY or RFQ button to purchase 28421285 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 28421285?
You can download the 28421285 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 28421285?
TE CONNECTIVITY
