TE CONNECTIVITY 28421425 breakaway header

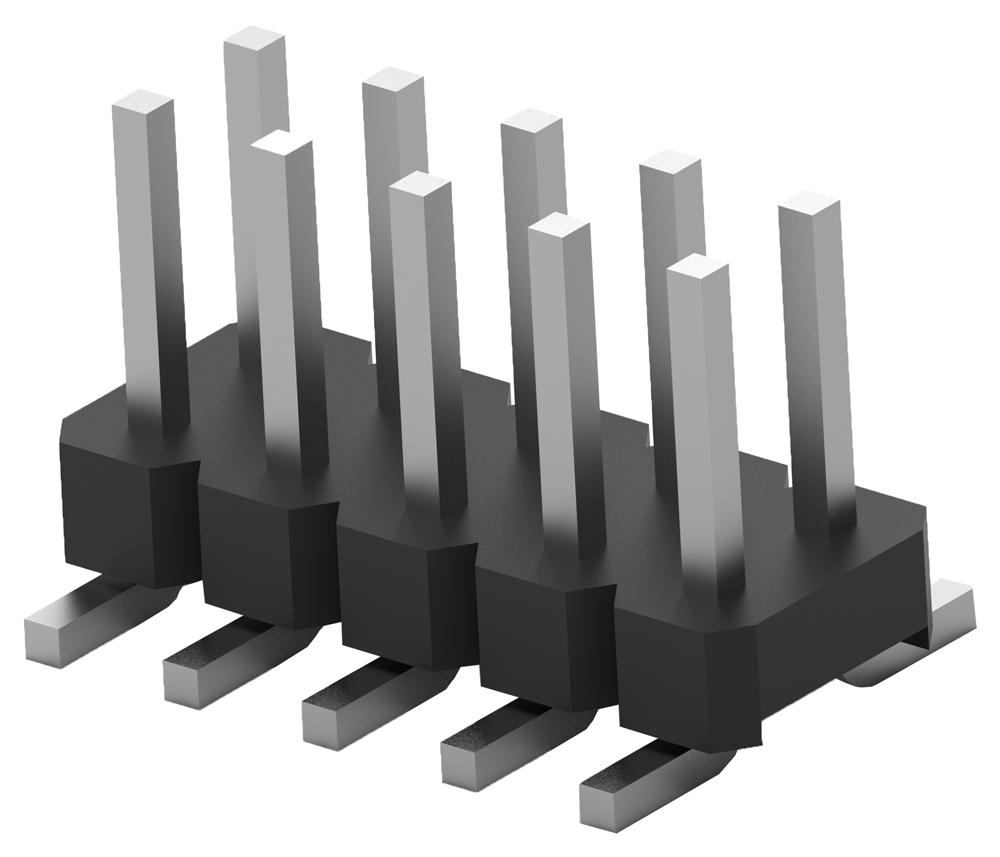

The TE Connectivity AMPMODU 2mm breakaway header is a compact, reliable connector designed for PCB applications, offering space savings of 38% over standard solutions. It features a 2mm centerline, 0.50mm square pins, and is suitable for surface-mount, through-hole, and reflow assembly methods. With a current rating of 2A and dielectric withstand voltage of 650VAC, it performs well in industrial automation, PLCs, instrumentation, and control systems. Made with high-temperature UL 94VO plastic, it ensures durability and environmental resistance from -40°C to 125°C.
TE CONNECTIVITY 28421425 breakaway header Specifications:
- Centerline: 2.00mm [0.079]
- Contact Dimension: 0.50mm [0.02"] square pins
- Connector Size: 2-25 positions per row, single and double row options
- PCB Thickness: 1.6mm to 2.4mm [0.063” to 0.094”]
- Operating Environment: Class III
- Current Rating: 2A (max.)
- Plating: 0.76um [30p"] Gold, 0.38um [15u"] Gold, Tin
- Dielectric Withstanding Voltage: 650VAC
- Operating Voltage: 125VDC
- Housing Material: High Temp Plastic UL 94VO, Black
- Contact Material: Brass
- Operating Temperature: -40°C to 125°C
- Reflow Solder Capability: up to 260°C
- RoHS & REACH compliant
- Vibration: No electrical discontinuity greater than 1 microsecond
Buy the Buy TE Connectivity AMPMODU 2mm Part Number 28421425 Online
Purchase the TE Connectivity AMPMODU 2mm breakaway header online for efficient assembly, space-saving design, and high reliability in industrial control applications. Suitable for surface-mount, through-hole, and reflow processes, thisconnector offers a current rating of 2A, dielectric withstand voltage of 650VAC, and operates between -40°C and 125°C. Made with high-temperature UL 94VO plastic and gold or tin plating, it ensures durability, environmental resistance, and compatibility with major receptacle brands for seamless intermateability and reliable PCB connections.
Buy TE Connectivity 28421425 now and experience unmatched reliability and space-efficient design for industrial automation and PCB solutions.
