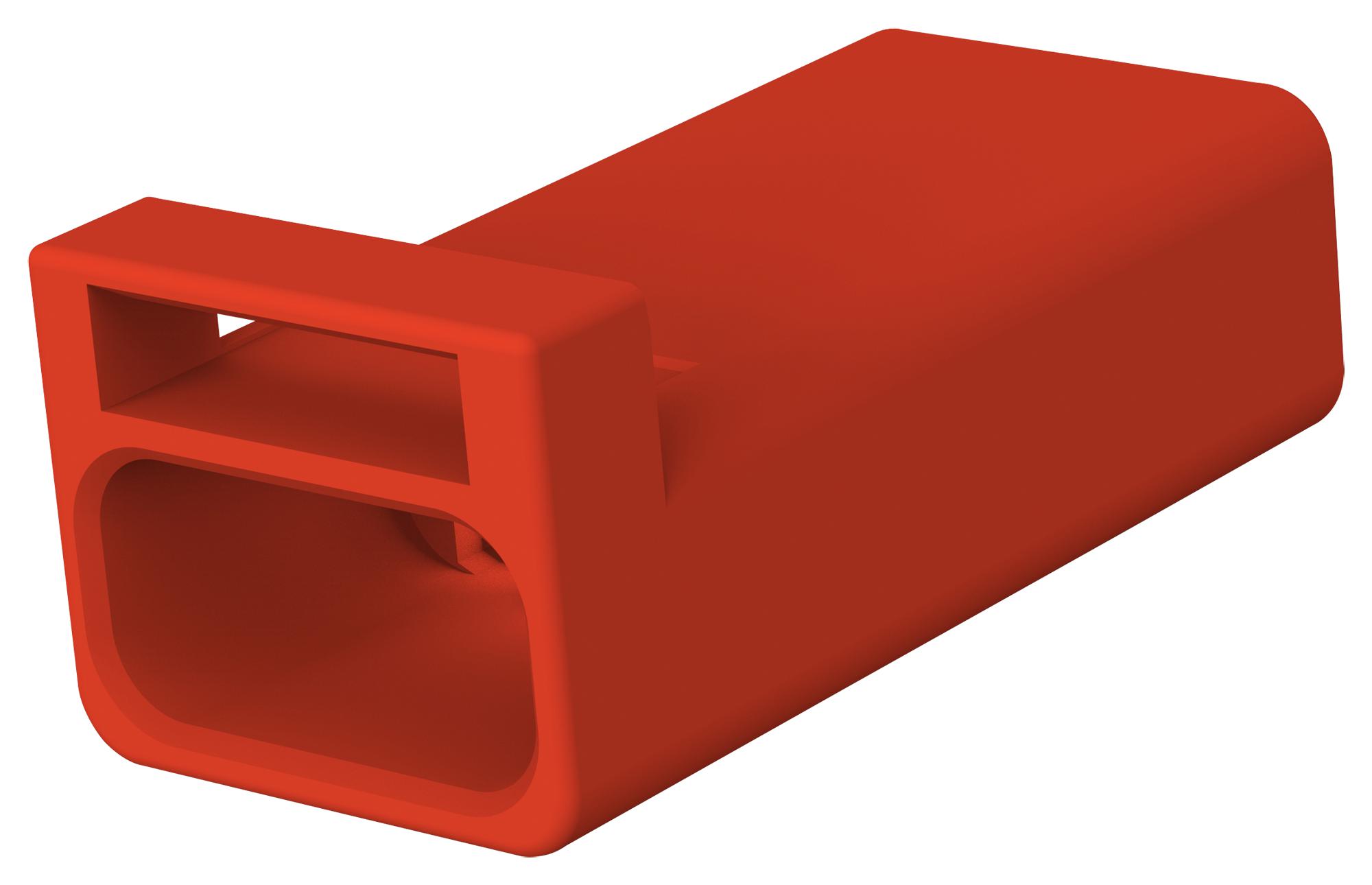

TE CONNECTIVITY 328340752 Sealed Wire Connector
The Miniature IP67 Sealed Wire-to-Wire Connector by TE Connectivity is designed for harsh outdoor environments, offering IP67 waterproof protection suitable for outdoor lighting, refrigeration, and HVAC systems. It features a press-to-release spring latch for secure mating, and comes in black, red, and white for easy identification. Made of UL 94 V-0 rated PA housing, with copper alloy contacts tin-plated for durability, and a rubber seal for environmental sealing, it supports up to 5A at 400V AC. Its compact design ensures space efficiency, complemented by pre-assembled seals for quick assembly and positive latching to prevent unintentional disconnection. Operating temperature ranges from -40°C to +105°C, with a durability rating of 30 cycles. Approved to application specification 114-137093, product spec 108-137093, and pending UL1977 approval, it is ideal for high-humidity, outdoor, and industrial applications requiring reliable, sealed wire connections.
TE CONNECTIVITY 328340752 Sealed Wire Connector Specifications:
- Current rating: 18 AWG: 5A Max., 20-22 AWG: 3.5A Max.
- Voltage rating: 400V AC Max.
- Dielectric Withstanding Voltage: 1800VAC
- Operating Temperature: -40°C to +105°C
- Durability: 30 cycles
- Housing Material: PA, UL 94 V-0
- Contact Material: Copper Alloy with Tin plating
- Seal Material: Rubber
- Seal Type: Pre-assembled for quick installation
- Color Options: Black, Red, White
- Environmental Protection: IP67 waterproof rating
- Press-to-release spring latch for secure connection
- UL 1977 approval in process
- Application Specification: 114-137093
- Product Specification: 108-137093
Buy the TE Connectivity 328340752 – Reliable Waterproof Connector for Industrial Applications
Order the TE Connectivity Sealed Wire Connector online today to ensure your outdoor and industrial wiring solutions are protected against harsh environments. This rugged, waterproof connector features a secure latch, quick assembly seals, and supports high current and voltage ratings. Its compact size makes it ideal for space-constrained applications like outdoor lighting, refrigeration, and HVAC systems. With optional color coding for easy identification and UL approval in progress, this connector guarantees durability and reliable electrical connections in demanding conditions. Purchase now for dependable, hassle-free wiring performance.
Buy TE Connectivity 328340752 now and experience unmatched waterproof sealing, reliable performance, and quick assembly for outdoor and industrial uses.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 328340752?
You can click on the BUY or RFQ button to purchase 328340752 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 328340752?
You can download the 328340752 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 328340752?
TE CONNECTIVITY
