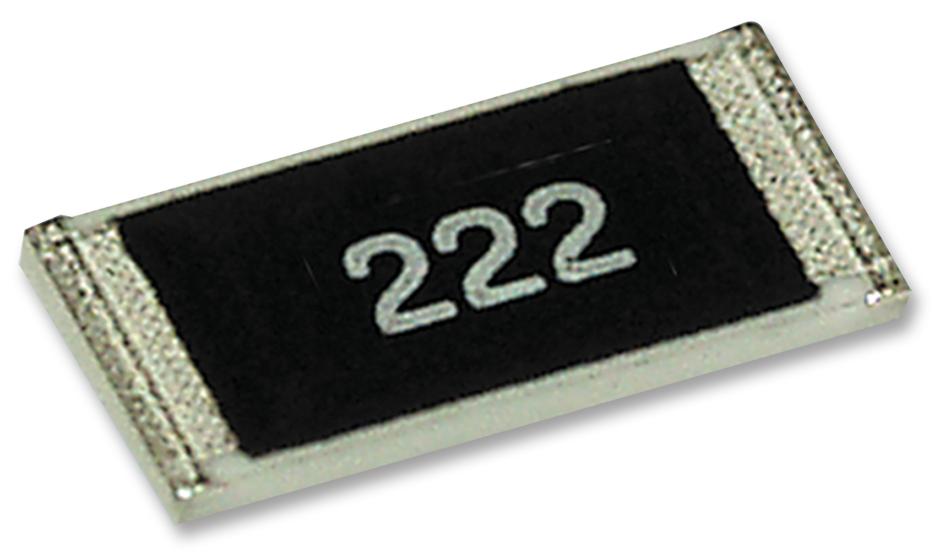

TE CONNECTIVITY 352136RFT SMD Power Resistor
The TE Connectivity Series 3521 SMD Power Resistors are compact, high-power components designed for efficient surface-mount applications. They offer a 2W power rating at 70°C, with a resistance range from 1Ω to 1MΩ, and are suitable for high frequency operations due to short lead structures. With a maximum overload voltage of 500V and a working voltage of 250V, these resistors feature matte Sn over Ni terminal finishes, are supplied on tape, and are ideal for high-volume auto placement and demanding electronic environments. They include markings for easy resistance identification and can be used in various industrial and automotive circuits.
TE CONNECTIVITY 352136RFT SMD Power Resistor Specifications:
- Power rating at 70°C: 2W
- Resistance range: 1Ω - 1MΩ
- Resistance Tolerance: 1%
- Temperature Coefficient: <10R +200PPM, 10R-1M +100PPM, >1MΩ +200PPM
- Maximum overload voltage: 500V
- Rated Continuous Working Voltage: 250V
- Ambient temperature: -55°C to +155°C
- Terminal finish: Matte Sn over Ni
- Size: 2512 (4-digit marking, significant figures and zeros)
- Mounting: Supplied on tape for high-volume pick-and-place
- Dimensions: Length 6.35mm, width 3.20mm, height 0.55mm
- Temperature derating at ambient above 70°C: power must be reduced proportionally
- Marking: Resistance value with 4-digit code, 'R' for decimal point below 100Ω
- Suitable for high frequency, automotive, industrial, and automation electronics
- Designed for volume manufacturing with easy identification and reliable performance
Buy the TE Connectivity Series 3521 SMD Power Resistors: 352136RFT
Order the TE Connectivity Series 3521 SMD Power Resistor 352136RFT online today to ensure high-performance, reliable power handling, and easy assembly for your electronic projects. Designed for high-frequency operation and volume manufacturing, these resistors provide outstanding durability, precise resistance values, and a compact form factor. With a 2W power rating at 70°C, maximum overload voltage of 500V, and resistances from 1Ω to 1MΩ, they are ideal for automotive, industrial, and automation applications. Simplify your procurement and ensure consistent quality with fast online ordering.
Get TE Connectivity Series 3521 SMD Power Resistors 352136RFT today—built for precision, high wattage, and reliable surface-mount performance.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 352136RFT?
You can click on the BUY or RFQ button to purchase 352136RFT from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 352136RFT?
You can download the 352136RFT datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 352136RFT?
TE CONNECTIVITY
