TE CONNECTIVITY 36501E13NJTDG High Frequency Chip Inductor
The 3650 Series high-frequency chip inductor is designed for low inductance and high Q factor applications, available in various package sizes including 0402, 0603, and 0805. It offers inductance values from 1.0 nanohenry to 4.7 microhenries with tight tolerances, high SRF, and excellent electrical characteristics. Engineered for automatic placement, these inductors are suitable for RF, filtering, and high-speed digital circuits, ensuring reliable performance in compact designs. Mechanical robustness and environmental resilience make them ideal for demanding electronic applications.
TE CONNECTIVITY 36501E13NJTDG High Frequency Chip Inductor Specifications:
- Inductance range: 1.0nH to 4.7uH
- Package sizes: 0402, 0603, 0805, 1008
- Inductance tolerance: 5% to 25%
- SRF min.: 45 MHz to 1500 MHz depending on series
- DCR max.: 0.03 to 1.50 Ohms
- Rated Current: 190mA to 2300mA
- Operating temperature: -40°C to +125°C
- Mechanical: Resists vibration, solder heat, and humidity
- Environmental: Resistance to thermal shock, humidity, and temperature extremes
- Application: RF filtering, high-speed digital, automotive, and aerospace electronics
- Marking: Color dot coding according to inductance value
- Reel Packaging: Standard and high-current options available

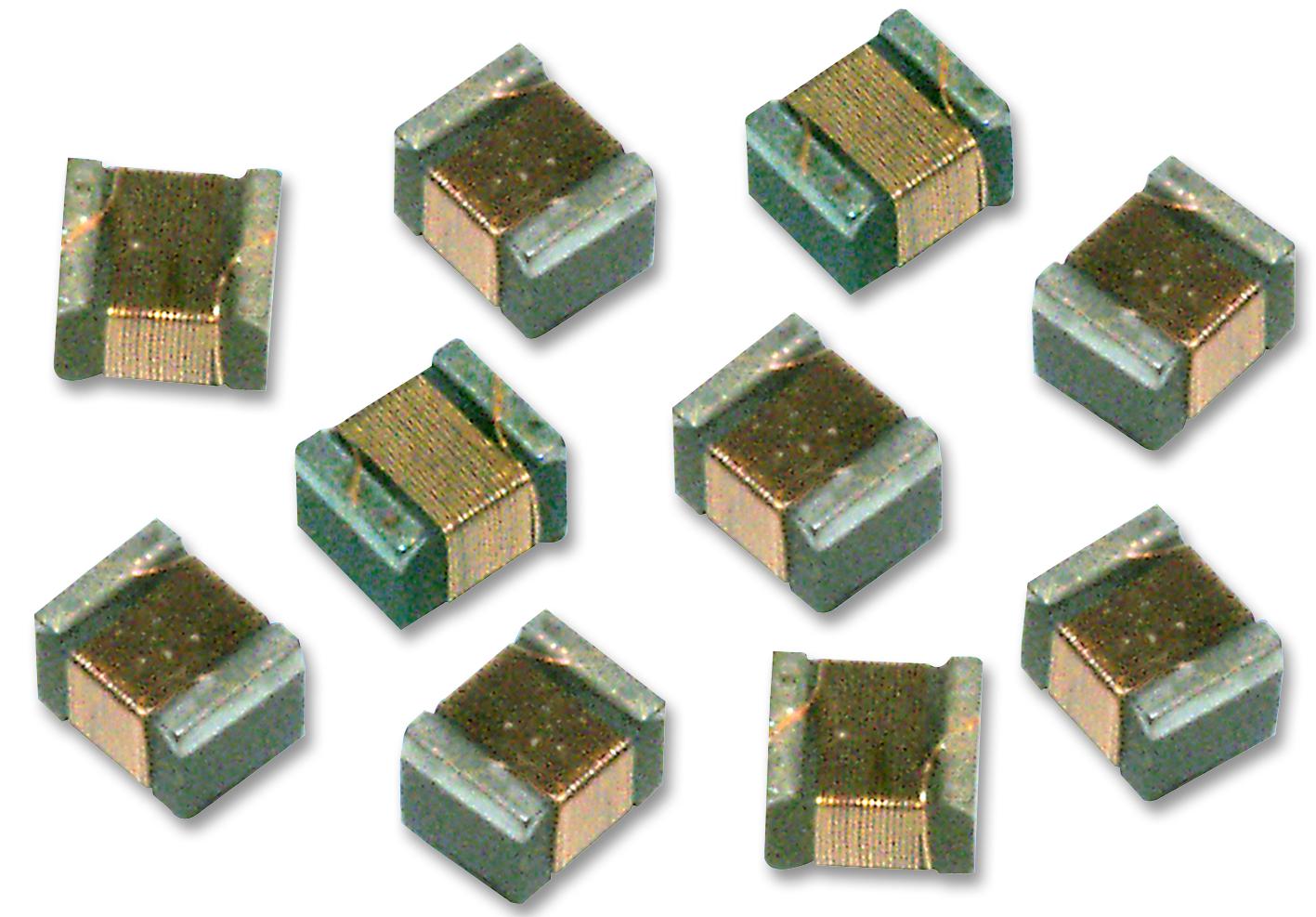

Buy the TE Series 3650 Chip Inductor: 36501E13NJTDG
Discover the TE Series 3650 high-frequency chip inductor, designed for low inductance, high Q factor, and high SRF applications. Offered in multiple package sizes including 0402, 0603, and 0805, with inductance values from 1.0 nanohenry to 4.7 microhenries. These inductors feature tight tolerances, excellent electrical characteristics, and robust mechanical and environmental resilience. Perfect for RF filtering, high-speed digital, and aerospace electronics, they support automated placement and deliver dependable performance in compact circuit designs. Buy online today to optimize your high-frequency electronic projects with trusted quality.
Order your TE Series 3650 high-frequency chip inductor today and ensure reliable, compact performance for RF and digital circuitry.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 36501E13NJTDG?
You can click on the BUY or RFQ button to purchase 36501E13NJTDG from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 36501E13NJTDG?
You can download the 36501E13NJTDG datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 36501E13NJTDG?
TE CONNECTIVITY
