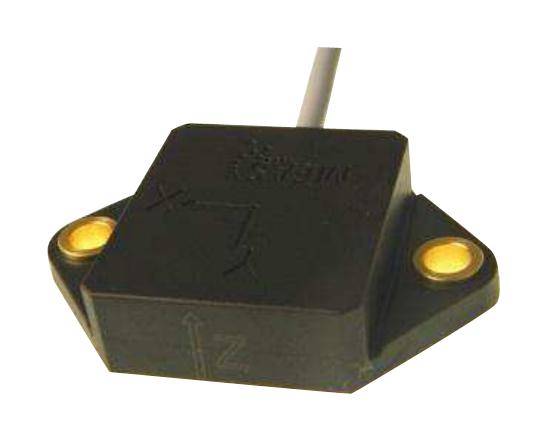

TE CONNECTIVITY 4030002120 Accelerometer Sensor
The Model 4020 and 4030 are high-performance, DC silicon MEMS accelerometers designed for vibration, tilt, and structural monitoring applications. The 4020 offers dual-axis measurement, while the 4030 provides triaxial sensing. These rugged, environmentally sealed sensors feature a RoHS-compliant 0-200Hz bandwidth, low noise, and high resolution for critical measurements. They operate on 5-30VDC, with customizable cable lengths, and include features like self-test and low pass filtering. Ideal for laboratory testing, motion analysis, and structural health monitoring, these accelerometers deliver stability and reliability in demanding environments.
TE CONNECTIVITY 4030002120 Accelerometer Sensor Specifications:
- Range: +2g & +6g
- Sensitivity: 1000 mV/g (for 2g range), 333 mV/g (for 6g range)
- Frequency Response: 0-200 Hz
- Non-Linearity: 0.10% FSO
- Transverse Sensitivity: 45%
- Shock Limit: 2000 g
- Residual Noise: 2.5 μV RMS
- Zero Acceleration Output: 4 V
- Excitation Voltage: 5-30 VDC
- Excitation Current: 4 mA
- Housing Material: Epoxy Sealed, IP65
- Operating Temperature: -40°C to +85°C
- Weight: 50 grams
- Mounting: Isolated from surface, M6 screws, torque 18 lb-in
- Dimensions: Length approximately 6.76 mm, Housing: Nylon 6-6, 30% GF
Buy the Buy TE Connectivity Accelerometer Model 4020 & 4030 Part Number 4030002120 Online
Get the TE Connectivity Series 4020 & 4030 accelerometers online today for reliable vibration, tilt, and motion measurement solutions. These robust sensors feature dual and triaxial configurations, high resolution, and excellent stability, making them ideal for structural health monitoring, laboratory testing, and industrial applications. With customizable cable lengths, low noise performance, and environmental sealing, they deliver accurate data in demanding environments. Purchase now to enhance your measurement capabilities with dependable, easy-to-install accelerometers designed for long-term reliability and precision.
Order your TE Series 4020 & 4030 accelerometer today and ensure accurate vibration and tilt measurements for your structural and motion monitoring needs.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 4030002120?
You can click on the BUY or RFQ button to purchase 4030002120 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 4030002120?
You can download the 4030002120 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 4030002120?
TE CONNECTIVITY
