TE CONNECTIVITY 422136783 LED Module Holder
The LUMAWISE Z35 MINI LED Holder is designed for high-performance LED lighting applications. Compatible with Everlight JU1215, Nichia S-Series, Lumileds LUXEON CoB 105/107/109, Sharp Mini Zenigata, and Zhaga-inspired modules, it features a wire-to-board connection with Poke-In terminations, supporting up to 3A current and 60 VDC operating voltage. Made from durable PBT GF housing material, it maintains a temperature range of -40°C to 105°C. Its compact design ensures secure LED positioning, optic compatibility, and adherence to RoHS and ELV directives for environmentally conscious manufacturing.
TE CONNECTIVITY 422136783 LED Module Holder Specifications:
- Material: PBT GF
- Maximum Current: 3A
- Operating Voltage: 60 VDC
- Temperature Range: -40°C to 105°C
- Circuit Application: LED Module Mounting
- Number of Positions: 2
- Connection Method: Poke-In
- Housing Material: PBT GF
- COB Substrate Thickness: 1mm
- Contact Material: Gold Plated Copper Alloy
- Certifications: RoHS, ELV compliant
- Environmental Compliance: Meets EU RoHS, REACH, and China RoHS 2
- Size and Dimensions: Suitable for 12x15mm LED modules, secure fit and optic compatibility

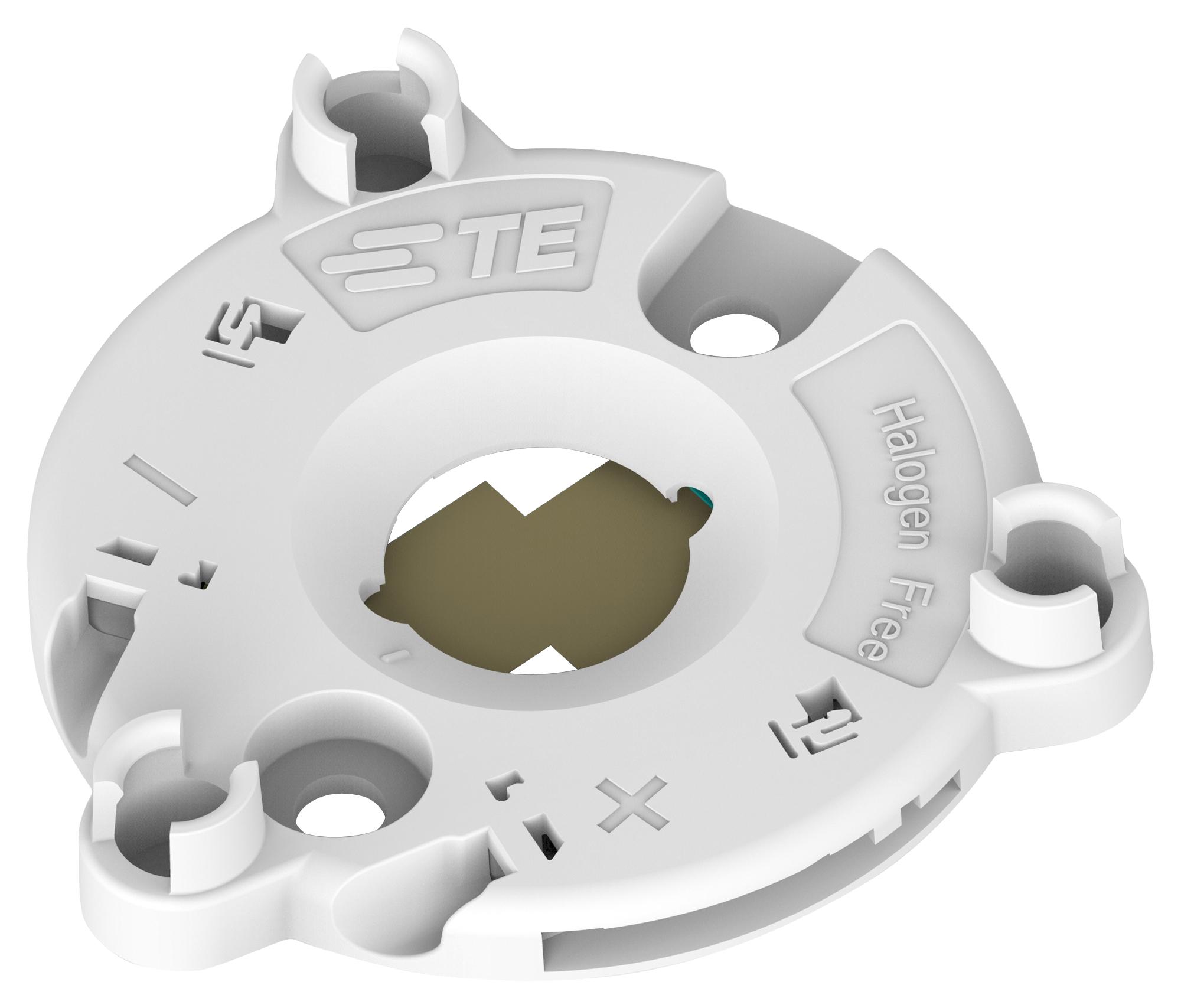

Buy the Buy Lumawise Z35 MINI LED Holder Part Number 422136783 Online
Enhance your LED lighting setup with the Lumawise Z35 MINI LED Holder, crafted from durable PBT GF material, supporting up to 3A at 60 VDC. Its wire-to-board poke-in connection simplifies installation, ensuring secure LED positioning for Nichia, Lumileds, Everlight, and Sharp modules. The holder is designed for temperatures between -40°C to 105°C and features optic compatibility, making it ideal for professional lighting, signage, and display applications. Easily purchase online for reliable, long-lasting LED mounting solutions that meet global environmental standards.
Get Lumawise Z35 MINI LED Holder today—designed for secure LED mounting with high current capacity and environment-friendly compliance.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 422136783?
You can click on the BUY or RFQ button to purchase 422136783 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 422136783?
You can download the 422136783 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 422136783?
TE CONNECTIVITY
