TE CONNECTIVITY 4525TP3A030GP pressure transducer
The MEAS MS4525 is a compact, ceramic-based, PCB-mounted pressure transducer built with proprietary UltraStable™ technology and advanced CMOS sensor conditioning circuitry. Designed for high performance at an affordable cost, it meets stringent OEM requirements. The transducer features a top port, operates at a 3V DC supply voltage, and provides a high-level analog output with a 10% to 90% output span. It has a gauge pressure measurement range of 0-30 PSI, through-hole pin configuration, and is suitable for applications such as blocked filter detection, altitude and airspeed measurements, medical devices, fire suppression systems, panel meters, environmental and air movement controls, and pneumatic systems.
TE CONNECTIVITY 4525TP3A030GP pressure transducer Specifications:
- Pressure Range: 0-30 PSI gauge
- Supply Voltage: 3V DC
- Output Type: Amplified ratiometric analog
- Output Span: 10% to 90%
- Operating Temperature: -40°C to +105°C
- Wetted Materials: Ceramic, silicon, borosilicate glass, epoxy, gold, aluminum
- Port Style: Top port, through-hole pin
- Pressure Type: Gauge
- Dimensions: Detailed in datasheet (approx. 0.70 inches length)
- Response Time: 1 ms
- Long term stability: 0.5% span per year
- Shock/Vibration: Mil Spec compliance
- Environmental Ratings: Operational up to 300 psi overpressure, humidity 95% RH non-condensing

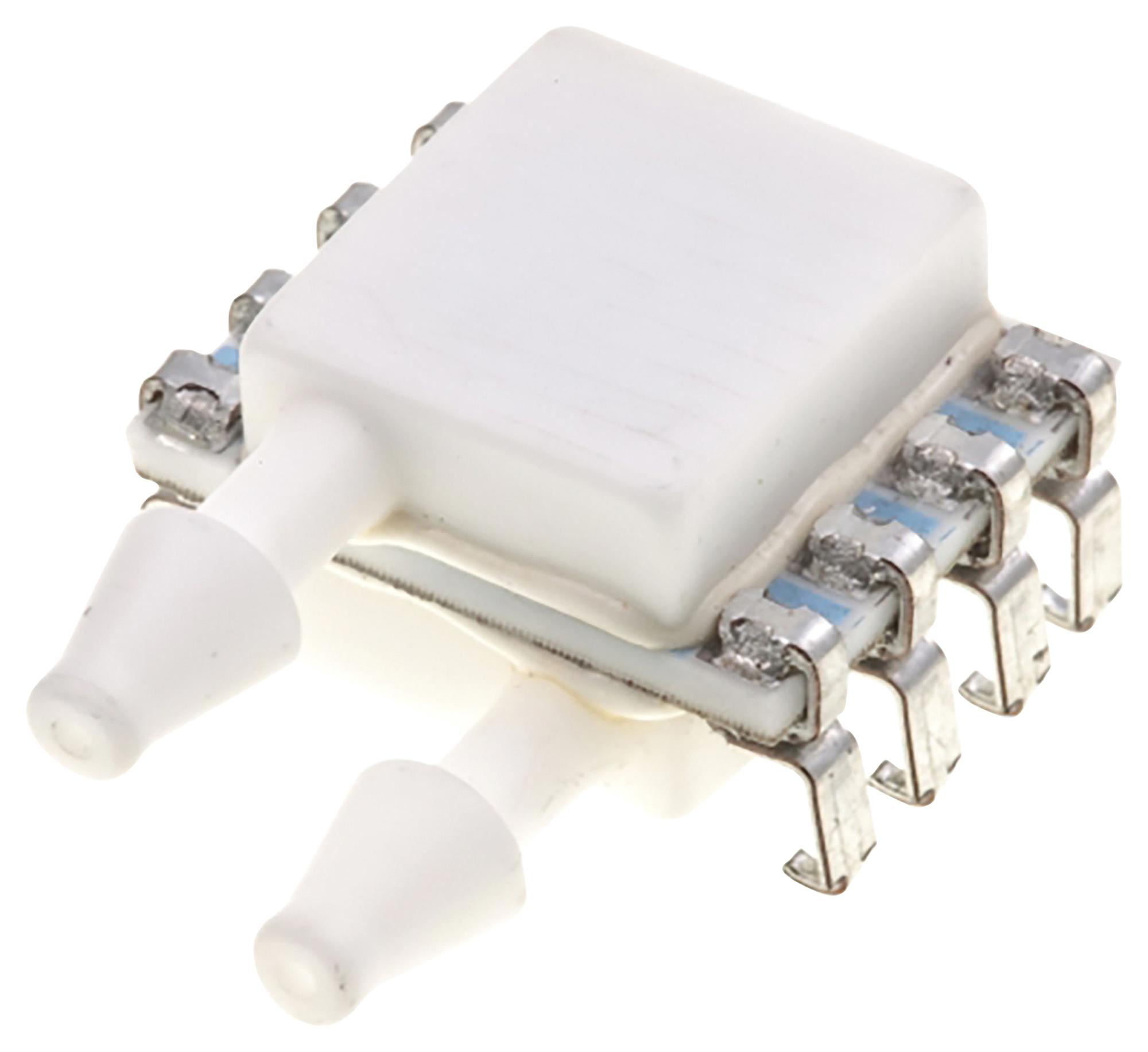

Buy the Buy TE Connectivity Pressure Transducer Part Number 4525TP3A030GP Online
Order the TE Connectivity pressure transducer online today—designed for high accuracy, long-term stability, and versatile applications in environmental, medical, and industrial systems. With a 0-30 PSI gauge range and low response time, this PCB-mounted device offers reliable analog output at 3V DC supply. Its compact form factor and robust wetted materials ensure durability in demanding conditions. Enhance your OEM projects with this trusted sensor solution, ensuring precise readings and dependable performance for airspeed, altitude, or fluid pressure measurements across various industries.
Get TE Connectivity 4525TP3A030GP today—built for precision, durability, and optimal OEM performance in environmental monitoring and medical systems.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 4525TP3A030GP?
You can click on the BUY or RFQ button to purchase 4525TP3A030GP from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 4525TP3A030GP?
You can download the 4525TP3A030GP datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 4525TP3A030GP?
TE CONNECTIVITY
