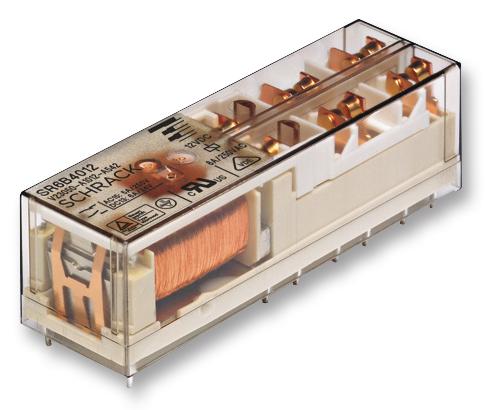

TE CONNECTIVITY 614155375 Force Guided Safety Relay
The force guided relay offers sealed contact configurations suitable for safety-critical applications like emergency shut-off, press control, and elevator control. It features reinforced insulation, multiple contact arrangements including 3 form A + 3 form B or 4 form A + 2 form B, and is built to IEC 61810-1 standards. With coil voltages ranging from 5VDC to 140VDC, it provides reliable switching for industrial automation and safety systems. The relay ensures high dielectric strength, contact resistance below 100mΩ, and robust insulation, making it ideal for industrial safety applications.
TE CONNECTIVITY 614155375 Force Guided Safety Relay Specifications:
- Contact arrangement: 3 form A + 3 form B or 4 form A + 2 form B or 6 NO + 1 NC
- Contact material: AgSnO2 with optional gold plating
- Coil voltage range: 5VDC to 140VDC
- Maximum coil power: 1200mW
- Dielectric strength: between open contacts 1500V, between contact and coil 4000V, between adjacent contacts 8000V
- Insulation: reinforced, compliant with IEC 61810-1
- Ambient temperature: -25°C to 70°C
- Weight: approximately 30g
- Soldering resistance: IEC 60068-2-20 260°C for THT
- Contact ratings: IEC 60947-5-1, AC 5A, DC 6A
- Mechanical endurance: 10^8 operations
- Environmental protection: IEC RTL, RoHS compliant
- Requires specific accessories including sockets and relays hold-down clips
Buy the Buy SCHRACK Force Guided Relay Part Number 614155375 Online
Purchase the SCHRACK Force Guided Safety Relay online for reliable safety performance in industrial automation systems. Featuring reinforced insulation and versatile contact configurations, this relay ensures compliance with IEC standards. Ideal for emergency shut-off, press control, and elevator applications, it offers high dielectric strength and extended mechanical life. Available with coil voltages from 5VDC to 140VDC, it delivers precise switching, robust construction, and quick installation options. Secure your safety-critical systems by ordering this high-quality relay directly from our online store for fast delivery and excellent customer support.
Get SCHRACK 614155375 today—built for industrial safety, precision switching, reinforced insulation, and long-lasting durability.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 614155375?
You can click on the BUY or RFQ button to purchase 614155375 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 614155375?
You can download the 614155375 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 614155375?
TE CONNECTIVITY
