TE CONNECTIVITY 614620376 Signal Relay
The product is a highly reliable and compact relay suitable for industrial and automation applications, featuring low coil power consumption, high dielectric and surge capability, and multiple contact configurations. Its rugged construction ensures high mechanical shock resistance up to 300g and dielectric strength up to 2500Vrms. Designed for telecommunication, industrial control, medical, testing, and automotive use, it operates with various coil voltages from 1.5VDC to 24VDC, supporting high switching power up to 62.5VA and resistive loads with long electrical endurance. It complies with IEC 61810 standards, ensuring durability and safety in demanding environments.
TE CONNECTIVITY 614620376 Signal Relay Specifications:
- Coil Voltage Range: 1.5 to 24VDC
- Coil Power: 50mW to 140mW depending on version
- Contact Arrangement: 2 form C (double pole, double throw)
- Switching Power: Up to 62.5VA (resistive load)
- Contact Resistance: <50mΩ at 10mA/20mV
- Dielectric Strength: Up to 2500Vrms between coil and contacts
- Maximum Switching Voltage: 220VDC / 250VAC
- Electrical Endurance: 2.5×10^8 operations (min), 5×10^8 operations (min for resistive loads)
- Mechanical Shock Resistance: Up to 300g
- Ambient Temperature Range: -40°C to +85°C
- Vibration Resistance: 20g, 10-500Hz
- Insulation Resistance: >10^10Ω
- Contact Material: PdRu, AgNi with Au plating
- Ingress Protection: IP67 (hermetically sealed)
- Mounting Types: THT, SMT, gull wing, J-legs
- Certifications: IEC 61810, UL 508 (File No. E 111441)

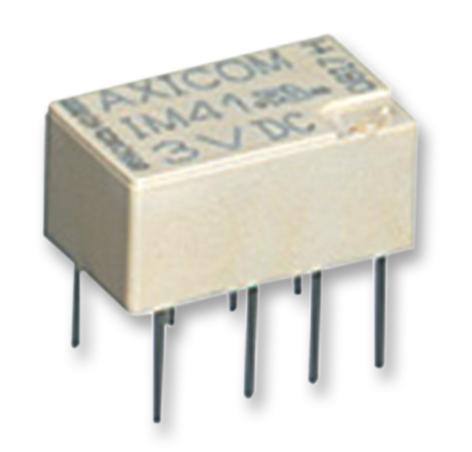

Buy the TE Connectivity IM Series Reliable Signal Relay for Industrial Applications
Order the TE Connectivity IM Series Signal Relay today online to ensure you get a compact, durable, and highly reliable component. Perfect for telecommunication, industrial control, medical, and automotive applications, it features low coil power consumption, high dielectric strength, and rugged design. With various coil voltages and configurations, it supports high switching power up to 62.5VA and withstands harsh environments with shock resistance up to 300g. Secure your supply now and enhance your system’s reliability.
Buy TE Connectivity IM Relay now and experience unmatched reliability and performance in demanding industrial and control environments.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 614620376?
You can click on the BUY or RFQ button to purchase 614620376 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 614620376?
You can download the 614620376 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 614620376?
TE CONNECTIVITY
