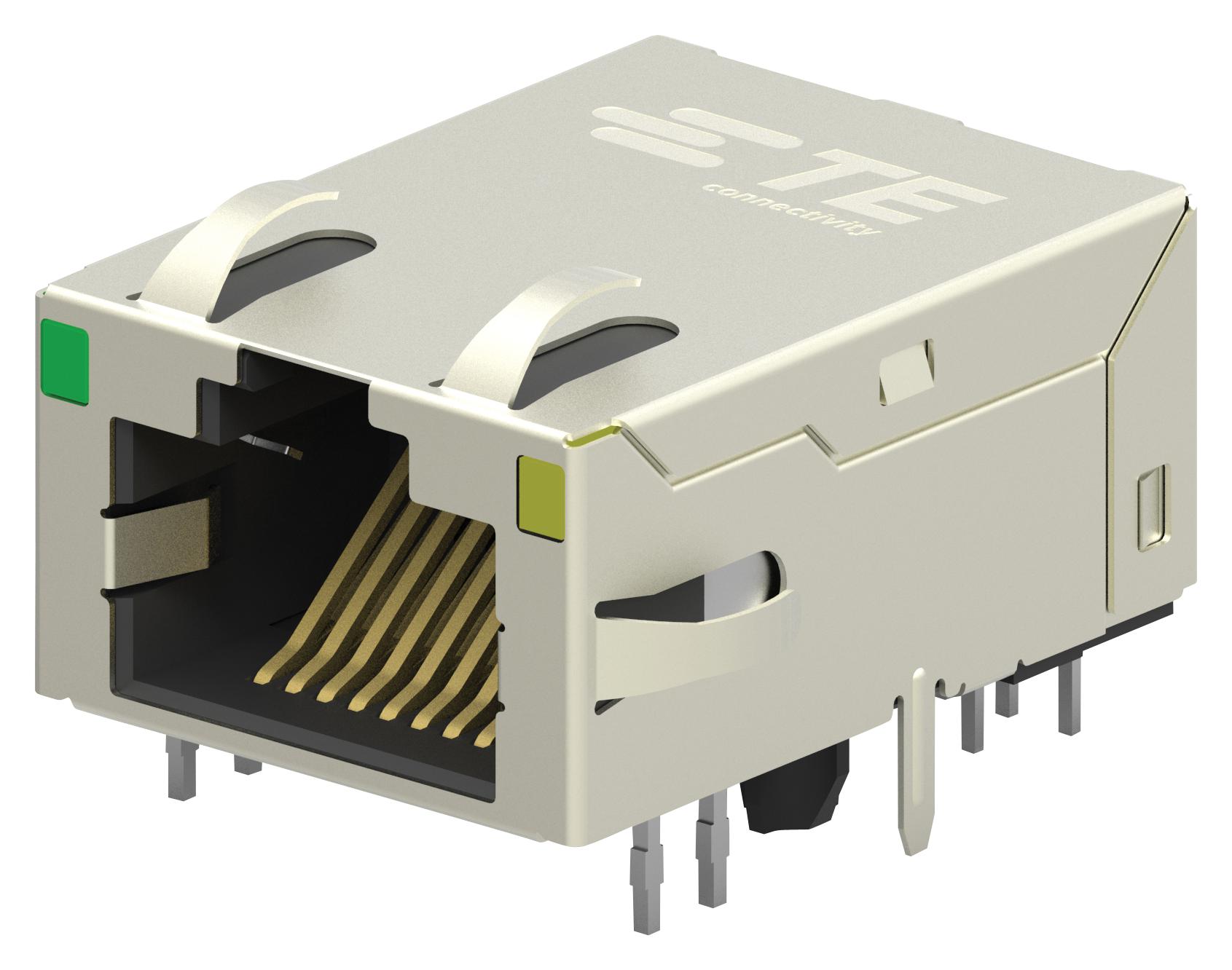

TE CONNECTIVITY 623019941 Industrial Ethernet RJ45 Jack
Industrial RJ45 jacks with integrated magnetics provide a highly reliable Ethernet connection solution for industrial environments. They feature enhanced EMI noise shielding, corrosion-resistant gold and nickel plating, and support for high temperatures from -40°C to +85°C. Designed for long-term operation with a minimum product lifetime of 10 years, these jacks support 10/100 Mbps and 1 Gbps speeds. They are reflow solderable at 260°C, meet IEC standards for industrial Ethernet, and are UL recognized and RoHS compliant, making them suitable for a wide range of industrial networking applications.
TE CONNECTIVITY 623019941 Industrial Ethernet RJ45 Jack Specifications:
- Extended temperature range: -40°C to +85°C
- Minimum product life: 10 years
- Reflow soldering temperature: 260°C
- Plating thickness: 0.76 um gold over 1.27 um nickel
- Supports 10/100 Mbps and 1 Gbps speeds
- Dielectric Withstanding Voltage: 2250 V DC
- Mechanical durability: Min. 750 mating cycles
- Materials: High grade LCP, UL 94 V-0 rated
- Standards: IEC 60603-7-51, IEC 60603-7-5
- Certifications: UL recognized, RoHS compliant
Buy the TE Connectivity Series Industrial Ethernet RJ45: 623019941
Order the TE Connectivity Industrial Ethernet RJ45 jack with integrated magnetics today and experience robust, EMI-shielded network connections for industrial applications. Designed for extended temperature ranges and long-term reliability, this product supports high-speed data transfer at 10/100 Mbps and 1 Gbps. It features corrosion-resistant gold and nickel plating, supports reflow soldering at 260°C, and meets IEC standards. Ideal for automation, control systems, and industrial networking, this RJ45 jack is available for online purchase with flexible packaging options for seamless integration.
Buy TE Connectivity Industrial Ethernet RJ45 jack with integrated magnetics now and ensure reliable networking even in harsh industrial environments.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 623019941?
You can click on the BUY or RFQ button to purchase 623019941 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 623019941?
You can download the 623019941 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 623019941?
TE CONNECTIVITY
