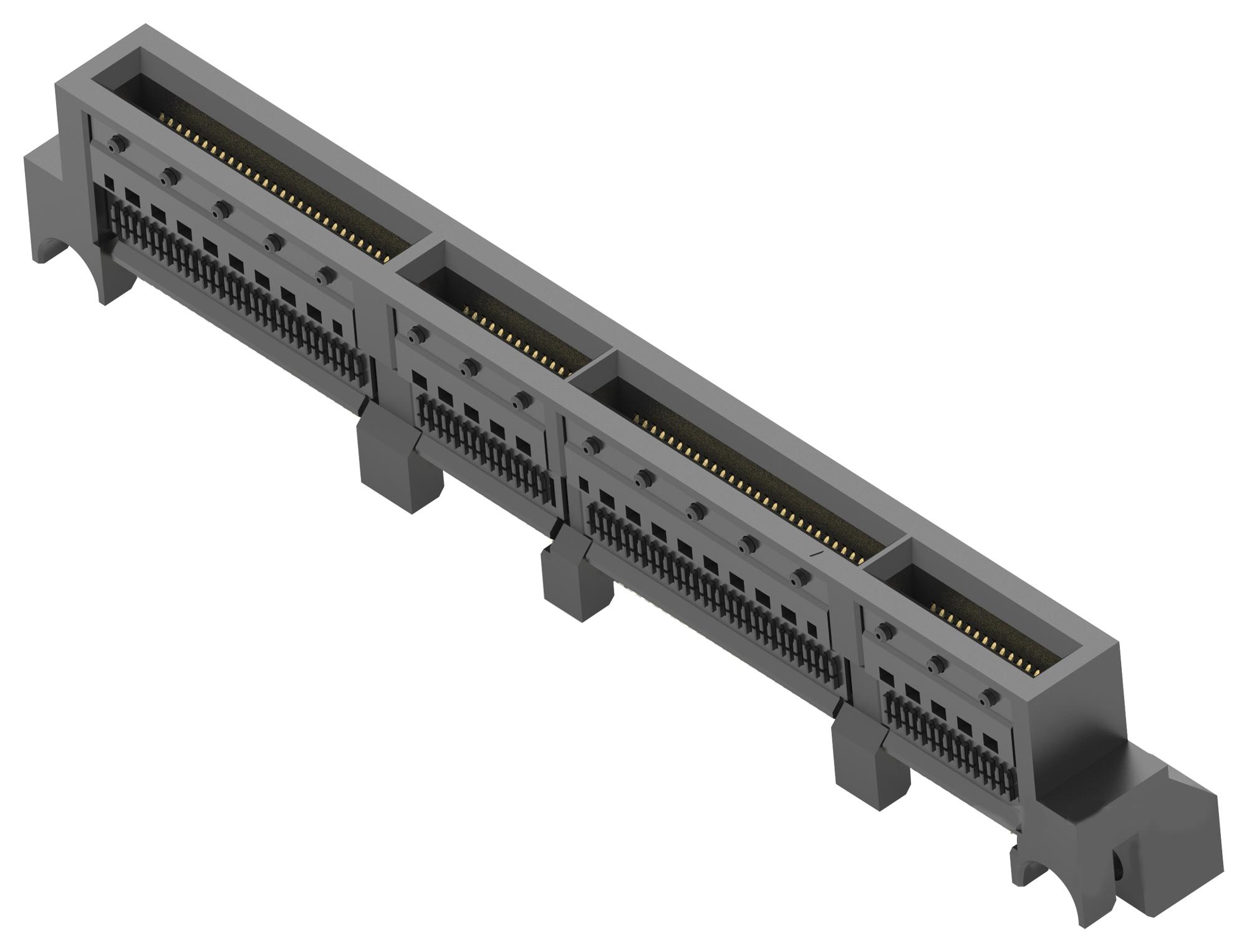

TE CONNECTIVITY 623403214 High-Density PCB Connector
This straddle mount connector features 168 positions and is compatible with industry standards such as Gen-Z and OCP NIC 3.0. Designed for PCB applications, it utilizes a card-edge connection type with gold-plated contacts for reliable mating. Made from copper alloy, it operates within a temperature range of -55°C to +85°C, and offers a 6 mm pitch with a surface-mount design for ease of installation. Its compliant, low halogen construction ensures suitability for modern electronic devices requiring high-speed data transfer and robust durability.
TE CONNECTIVITY 623403214 High-Density PCB Connector Specifications:
- Product Type: Connector
- PCB Mount Orientation: Straddle Mount
- Connector Type: Card-Edge
- Number of Positions: 168
- Number of Rows: 2
- Contact Mating Area Plating Material: Gold
- Contact Underplating Material: Nickel
- PCB Contact Termination Area Plating Material: Tin
- Shell Without Sealable
- Termination Method: Mechanical Attachment
- Housing Material: Copper Alloy
- Contact Material: Copper Alloy
- Centerline (Pitch): 6 mm
- Operating Temperature Range: -55°C to +85°C
- Usage Conditions: Signal applications
- Industry Standards: SFF-TA-1002, Gen-Z, OCP NIC 3.0
- RoHS Compliance: Yes, Low Halogen
- Material: Copper Alloy
- Mounting Type: Surface Mount
Buy the TE Series SFF-TA-1002 PCB Connector: 623403214
Order the TE Series SFF-TA-1002 PCB connector with 168 positions today to ensure your electronic assemblies have a secure, industry-standard connection. Featuring gold-plated contacts and a copper alloy body, it guarantees excellent conductivity and durability. The surface-mount design simplifies installation and provides high-performance reliability across temperature ranges from -55°C to +85°C. Whether for networking, data centers, or advanced electronic systems, this connector meets all industry standards, including RoHS and low halogen requirements, making it a trusted choice for professionals seeking quality and compliance.
Buy TE Series SFF-TA-1002 PCB connector with 168 positions now and experience unmatched reliability and performance in high-speed electronic applications.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 623403214?
You can click on the BUY or RFQ button to purchase 623403214 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 623403214?
You can download the 623403214 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 623403214?
TE CONNECTIVITY
