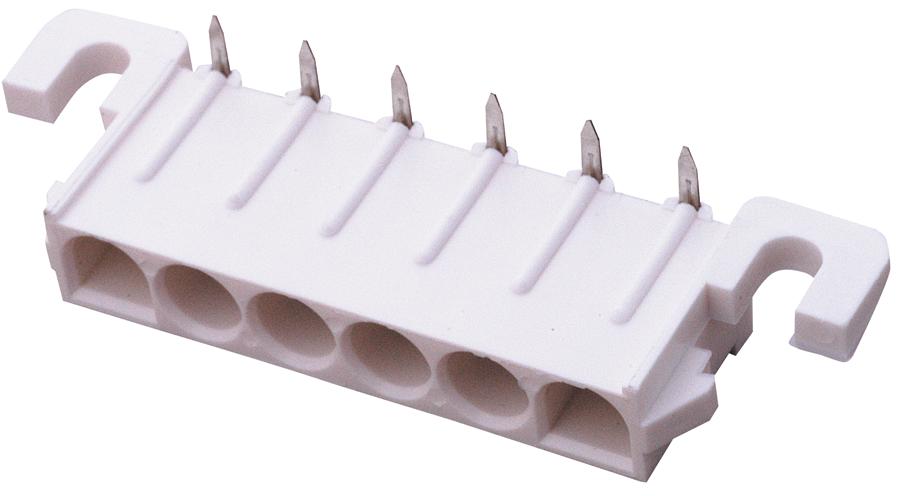

TE CONNECTIVITY 6405831 Pin and Socket Connector
The product is a nylon housing with crimp snap-in contacts designed for wire-to-wire and wire-to-board applications. It supports 20-10 AWG wire sizes, accepts insulation diameters up to .180 inches, and features polarized housings to prevent incorrect mating. Suitable for panel mounting or free-hanging setups, it is recognized under UL and CSA standards, offering high reliability and safety for electronic and industrial circuitry. The contact material is brass or phosphor bronze with gold or tin plating, ensuring performance durability and corrosion resistance in various environmental conditions.
TE CONNECTIVITY 6405831 Pin and Socket Connector Specifications:
- Housing Material: Nylon, UL 94V-0 rated
- Contact Material: Brass or Phosphor Bronze with Gold or Tin Plating
- Contact Diameter: .156 inches (3.96 mm)
- Wire Range: 20-10 AWG (.5-6 mm2)
- Insulation Diameter: Up to .180 inches (4.57 mm)
- Dimensions: Length varies with model, housing accommodates multiple circuit configurations (1 to 15 positions)
- Mounting Style: Panel mount or free-hanging
- Standards: UL 94V-0, CSA certified, recognized under UL File No. E28476
- Temperature Range: Not specified but suitable for typical electronic device environments
- Electrical Rating: 250 VAC/DC, current capacity up to 20 A depending on application
- Design Features: Polarized housings, dual locking lances, enclosed contacts, retention force minimum 10 Ib.
- Application: For industrial, automotive, lighting, vending, and appliance fields requiring reliable pin/socket connections with environmental resistance
Buy the Buy Tyco Electronics 6405831 Pin and Socket Connectors Online
Purchase the high-performance nylon pin and socket connector from Tyco Electronics online today. Designed for wire-to-wire and wire-to-board setups, this certified component offers polarization, dual locking lances, and enclosure features for shock protection. Compatible with 20-10 AWG wires and supporting up to 250 VAC/DC and 20 A, it ensures durable, safe connections in harsh environments. Easy to install, RoHS compliant, and available in multiple configurations, order now for quick delivery and reliable performance in your electronic projects.
Buy Tyco Electronics 6405831 pin and socket connectors now and ensure reliable, corrosion-resistant connections in your electronic and industrial applications.
