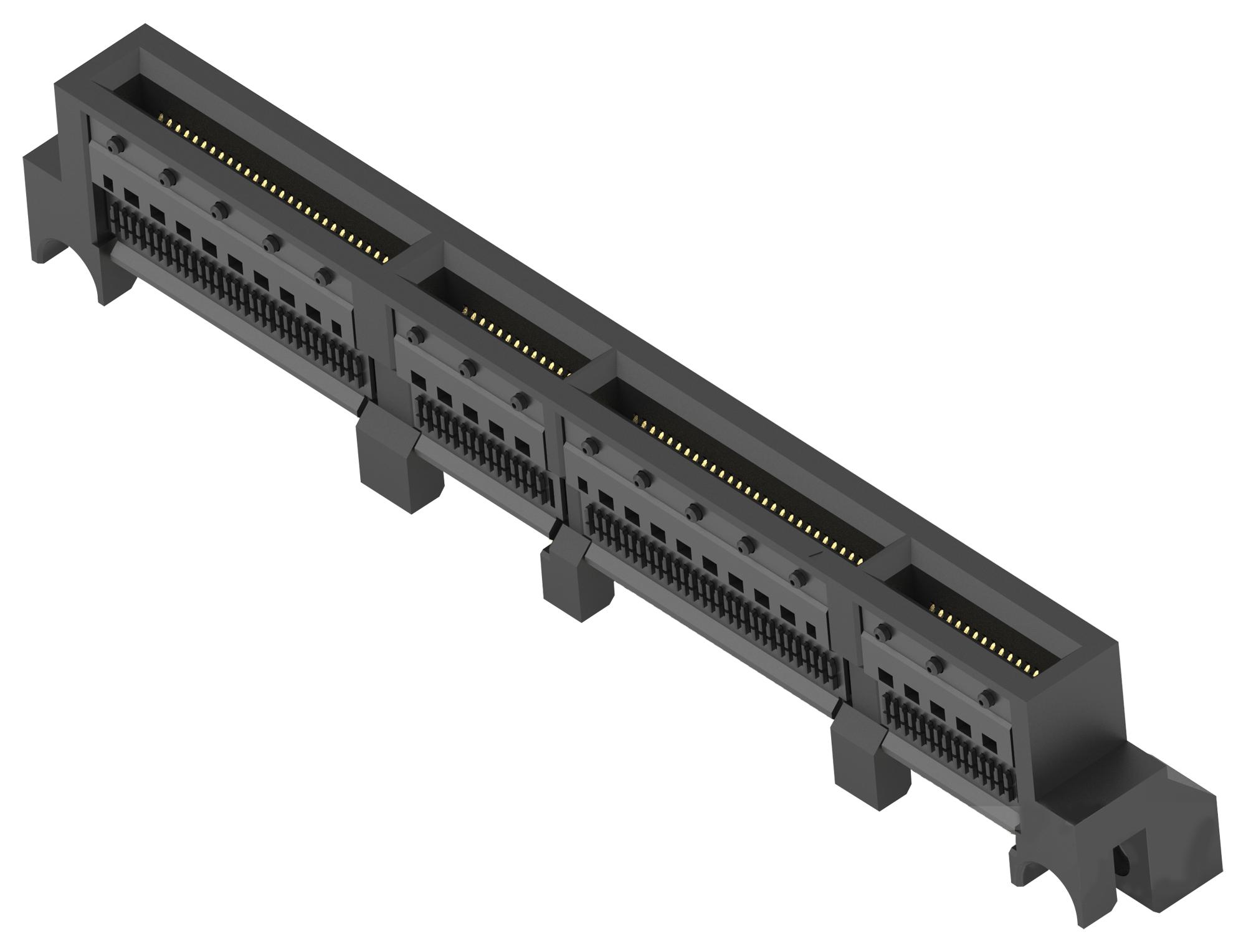

TE CONNECTIVITY 723403211 Single Board Edge Connector
The assembly features a 168-position sliver card-edge connector with straddle mount PCB orientation, compliant with Gen-Z and OCP NIC 3.0 standards. Made from copper alloy, it supports signal applications with a contact temperature range of -55°C to +85°C. The connector includes gold-plated contact mating areas and nickel underplating, ensuring reliable connectivity and corrosion resistance. It has a 6 mm centerline pitch, suitable for PCB mounting, and meets low halogen and RoHS standards for environmentally conscious designs. Designed for high-density networking and electronic system integration, it offers robust mechanical and electrical performance for professional technological applications.
TE CONNECTIVITY 723403211 Single Board Edge Connector Specifications:
- Number of Positions: 168
- PCB Mount Orientation: Straddle Mount
- Connector Type: Card-Edge
- Contact Material: Copper Alloy
- Contact Mating Area Plating Material: Gold
- Contact Underplating Material: Nickel
- PCB Contact Termination Area Plating Material: Tin
- Centerline (Pitch): 6 mm
- Operating Temperature Range: -55°C to +85°C
- Material: Copper Alloy
- Surface Finish: Gold and Nickel plating
- Compliance: RoHS, EU RoHS Directive, EU ELV Directive, China RoHS 2
- Halogen Content: Low Halogen, Br, Cl, F < 900 ppm
- Mounting Type: Board Mount (Surface Mount)
- Industry Standards: SFF-TA-1002, Gen-Z, OCP NIC 3.0
- Certifications: UL Listed, CE Marked (see official approval documents)
Buy the TE Series Sliver SFF-TA-1002 Card-Edge Connectors: 723403211
Order the TE Series Sliver SFF-TA-1002 168-position card-edge connector now to ensure high-density and reliable PCB connections. With gold-plated contacts, nickel underplating, and compliance with RoHS and industry standards, this connector offers superior electrical performance and environmental safety. Its straddle mount design provides a secure fit for demanding electronic systems, making it ideal for data centers, networking equipment, and advanced electronic assemblies. Purchase today for trusted quality, durability, and easy integration into your project requirements.
Get TE Series Sliver SFF-TA-1002 connector today—designed for reliable signal connectivity and long-lasting durability in high-density applications.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 723403211?
You can click on the BUY or RFQ button to purchase 723403211 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 723403211?
You can download the 723403211 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 723403211?
TE CONNECTIVITY
