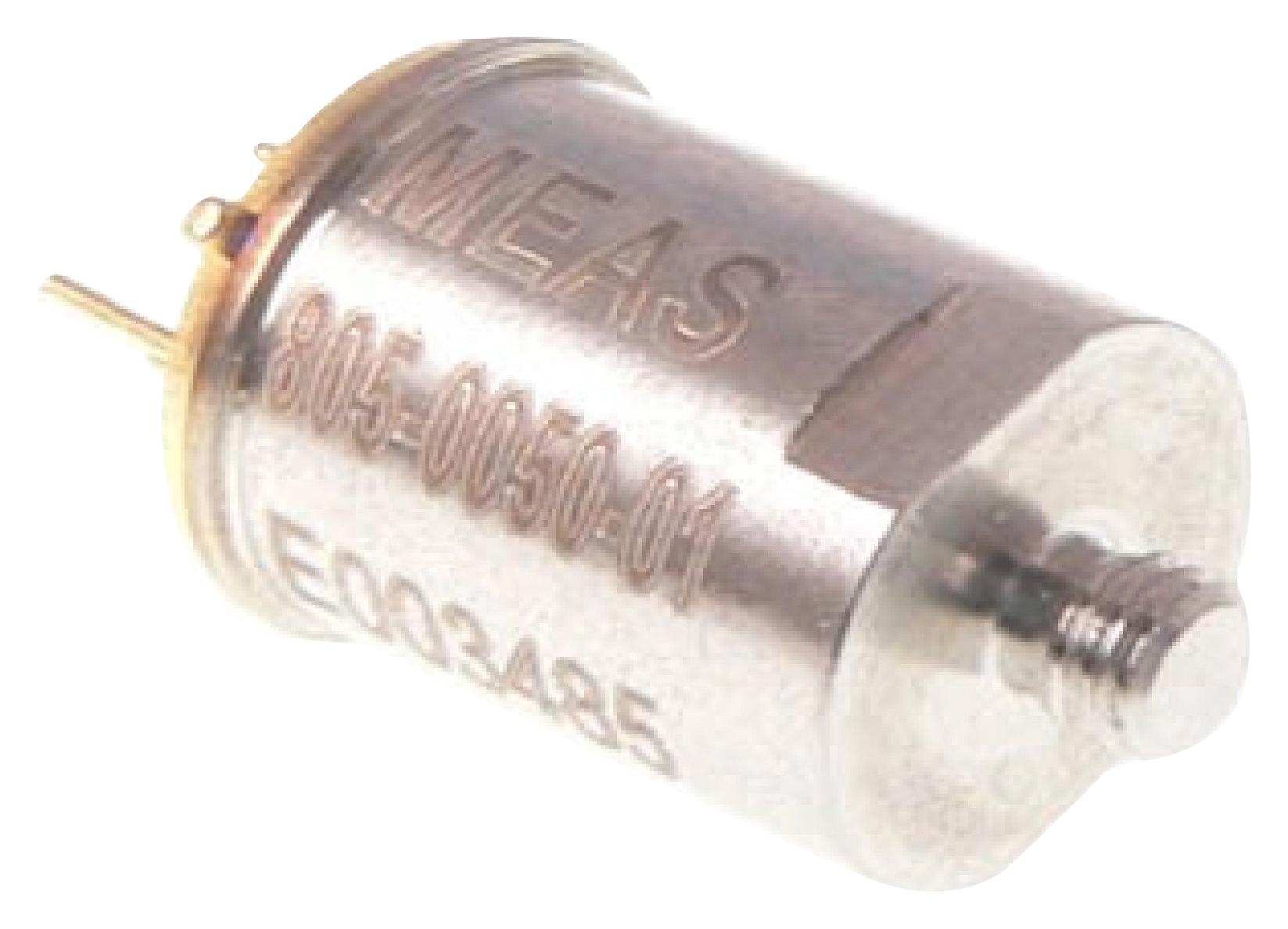

TE CONNECTIVITY 805M10200 Miniature Accelerometer
The Model 805M1 accelerometer is a compact, hermetically sealed device designed for embedded OEM applications with a wide range of ±20g to ±500g and flat frequency response up to 12kHz. Built on a piezo-ceramic sensing element in a stainless steel case, it offers reliable performance for machine monitoring, structural studies, and preventive maintenance. It operates from -40°C to +100°C, features low power consumption under 0.80mA, and includes options for adhesive or stud mounting with an isolating cover. Its case-grounded design ensures stability and durability for demanding industrial environments.
TE CONNECTIVITY 805M10200 Miniature Accelerometer Specifications:
- Range: +20g to +500g
- Sensitivity: 100mV/g at 20g, decreasing with higher ranges
- Frequency Response: 0.4-12000Hz
- Natural Frequency: 34000Hz
- Bias Voltage: 3.0-5.5Vdc
- Power Consumption: <0.80mA
- Output Impedance: <100Ω
- Operating Temperature: -40°C to +100°C
- Storage Temperature: -54°C to +125°C
- Case Material: Stainless Steel
- Dimensions: varies with model, typical length 9.38mm, width 11.5mm
- Mounting: Adhesive or M3 stud mount
- Shock Limit: 5000g
- Hermetically sealed, RoHS compliant
Buy the Buy TE Connectivity Model 805M1 Accelerometer Part Number 805M10200 Online
Order the TE Connectivity Model 805M1 accelerometer online today for reliable, high-performance vibration sensing in embedded applications. This miniature, hermetically sealed device features a broad measurement range from 20g to 500g and a flat frequency response up to 12kHz, making it ideal for machine monitoring, structural analysis, and preventive maintenance. Its low power consumption under 0.80mA, robust stainless steel case, and mounting flexibility provide durability and versatility. Purchase now to enhance your sensing solutions with a high-quality, precision accelerometer designed for demanding environments.
Get TE Connectivity Model 805M1 accelerometer today—built for precision and long-lasting durability in embedded OEM applications.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 805M10200?
You can click on the BUY or RFQ button to purchase 805M10200 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 805M10200?
You can download the 805M10200 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 805M10200?
TE CONNECTIVITY
