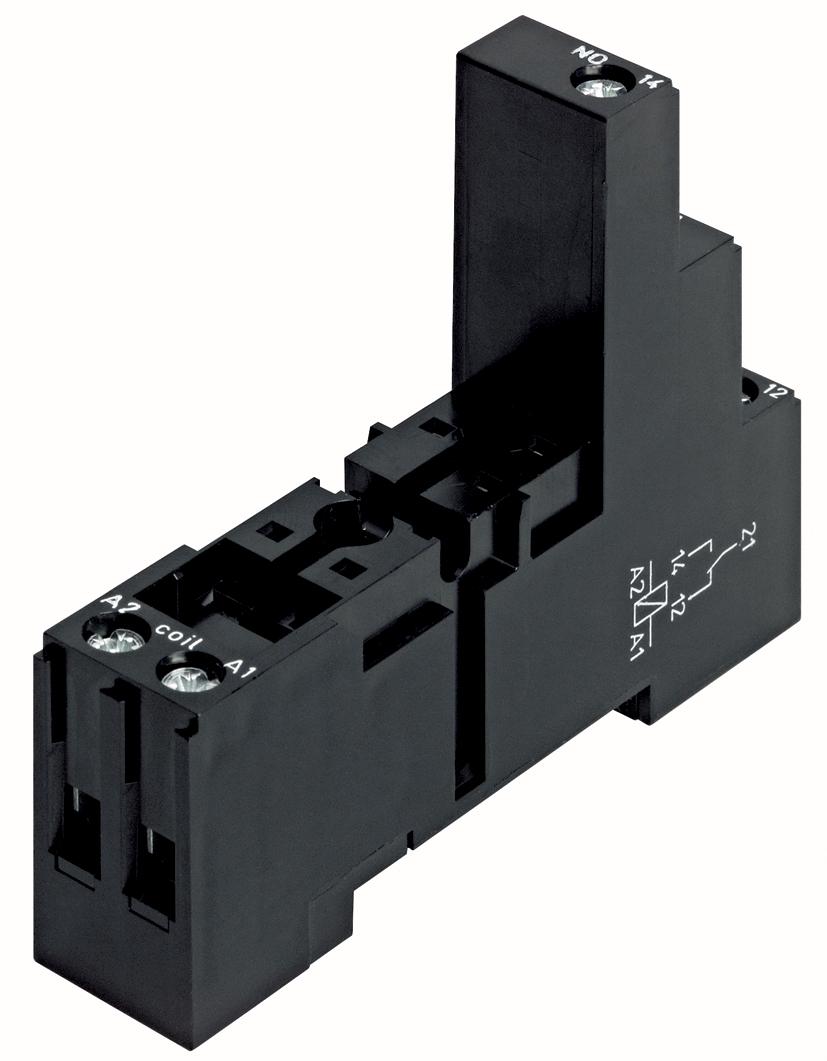

TE CONNECTIVITY 814150351 Industrial Relay Accessories
The TE Connectivity 8-1415035-1 is an accessory designed for Industrial Power Relay RT applications. It offers a convenient and secure mounting solution for relays on DIN rails, featuring a new retainer clip with an ejection function for easy replacement. The accessory maintains the relay's protection class and creepage/clearance with its plastic retainer, ensuring reliable performance in industrial environments. It also supports simple plug-in indicator and protection modules, along with white snap-on marking tags for clear identification.
TE CONNECTIVITY 814150351 Industrial Relay Accessories Specifications:
- pinning: 3.5 mm / 5 mm
- relay_height: 15.7 mm
- retainer_clip_function: ejection function
- protection_class: maintained
- creepage_clearance: maintained
- mounting: DIN rail
- terminal_arrangement: logical
- rated_voltage_AC: 240/400 VAC
- rated_current: 2 x 8 A, 16 A
- dielectric_strength_coil_contact: 5000 Vrms
- dielectric_strength_open_contact: 1000 Vrms
- dielectric_strength_adjacent_circuits: 2500 Vrms
- clearance_creepage_coil_contact: ≥ 10/10 mm
- material_group: IIIa
- insulation_type_coil_contact: reinforced
- insulation_type_open_contact: functional
- insulation_type_adjacent_circuits: functional
- rated_insulation_voltage: 250 V
- pollution_degree: 2
- rated_voltage_system: 230 / 400 V
- overvoltage_category: III
- ambient_temperature_range_mounting: -20…+70˚C
- ambient_temperature_range_operation: -40…+70˚C
- wire_size_solid: 1x0.75/1/1.5mm2
- wire_size_stranded: 1x0.75/1/1.5mm2
- insertion_cycles: A (10)
- max_insertion_force: 100 N
- mounting_distance: ≥ 0, dense packing
- weight: 36 g
