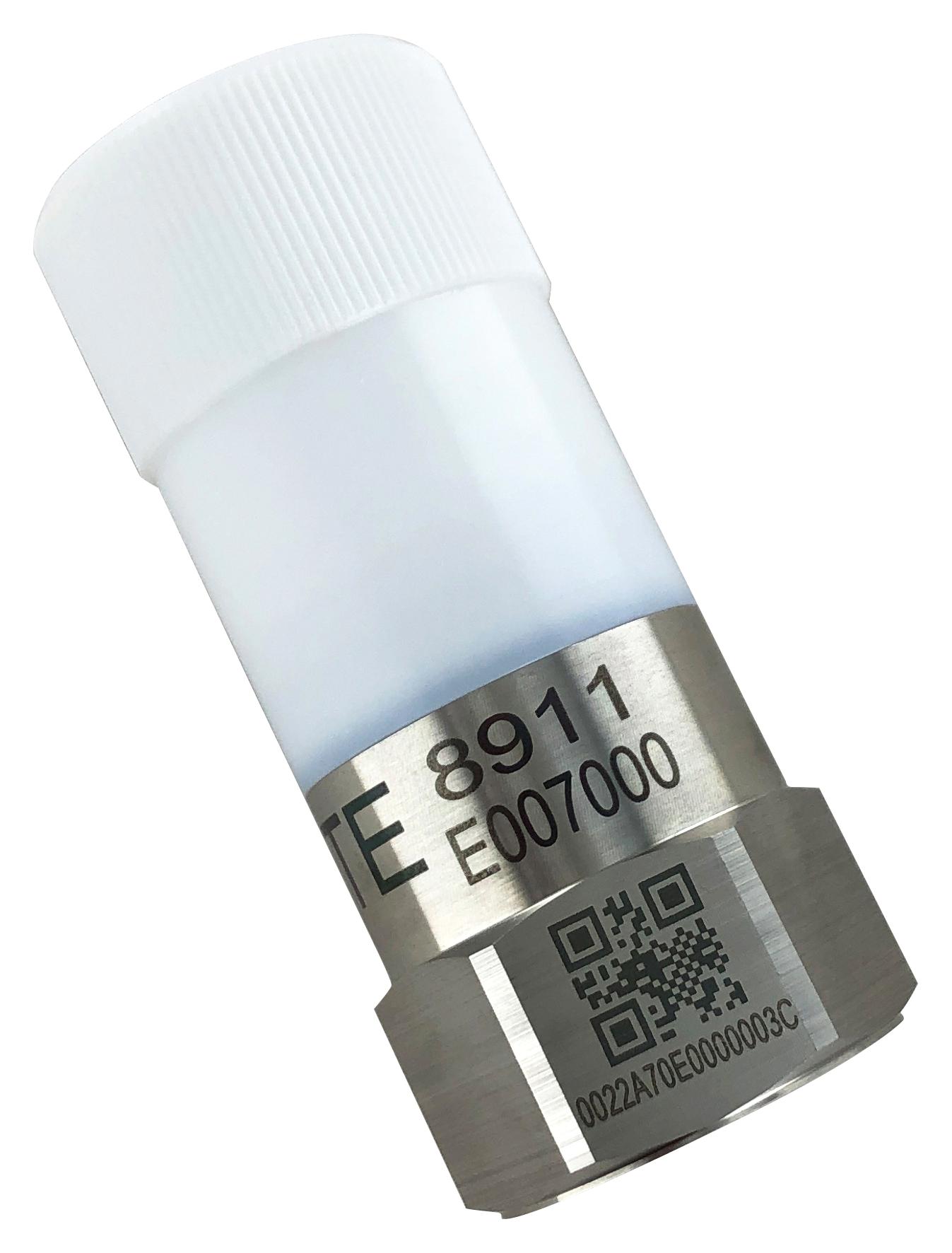

TE-Connectivity 8911A Wireless Accelerometer
The wireless accelerometer model 8911 by TE Connectivity combines vibration and temperature measurement with LoRaWAN™ communication. Ideal for remote condition monitoring, it features a compact, corrosion-resistant stainless-steel and polymer housing, wide bandwidth >10kHz, long-term stability, and superior resolution. Powered by a replaceable CR123 battery with up to 5 years of battery life at one sample per hour, it operates within -20°C to +60°C. The device supports easy installation via adhesive, magnetic, and threaded mounting options, providing reliable, interference-free data transmission for harsh industrial environments.
TE-Connectivity 8911A Wireless Accelerometer Specifications:
- Operating Temperature: -20°C to +60°C
- Storage Temperature: -40°C to 120°C
- Ingress Protection: IP66
- Housing: Corrosion-resistant stainless steel and polymer
- Frequency Response: >10kHz bandwidth, 30kHz resonant frequency
- Measurement Resolution: 12 bits
- Battery Life: Up to 5 years at one sample per hour
- Power Supply: Replaceable CR123 battery (3 Vd)
- Average Supply Current: 35 HA
- Peak Supply Current: 50 mA during transmission
- Wireless Protocol: LoRaWAN Class A, 868/915 MHz
- Transmit Power: 12-14 dBm
- Receiver Sensitivity: -131 to -137 dBm
- Environmental Conditions: Operating Temperature -20°C to +60°C, Humidity up to 95% non-condensing
- Ingress Protection: IP66
- Mounting Options: Adhesive, magnetic, threaded studs (various sizes)
- Dimensions: Approximate size details available externally
- Shock Resistance: 2000 g
- Certifications: IEC61000-4-2, IEC61000-4-6, UL compatible
- Wireless Data: FFT vibration analysis, peak frequency, amplitude, spectral content
- Weight: 200 grams
Buy the TE Connectivity Series 8911 Wireless Accelerometer: 8911A
Enhance your industrial monitoring with the TE Connectivity 8911A wireless accelerometer, a compact, robust device capable of measuring vibration and temperature. Utilizing LoRaWAN™ communication, it offers secure, interference-free data transmission suitable for harsh environments. With a 5-year battery life, wide bandwidth >10kHz, and various mounting options, this device enables quick deployment and scalable system integration. Ideal for remote condition monitoring, it helps reduce installation costs and provides real-time insights into machinery health, ensuring optimal operational efficiency and maintenance planning.
Buy TE Connectivity 8911A wireless accelerometer now and experience unmatched reliability and performance for industrial condition monitoring.
