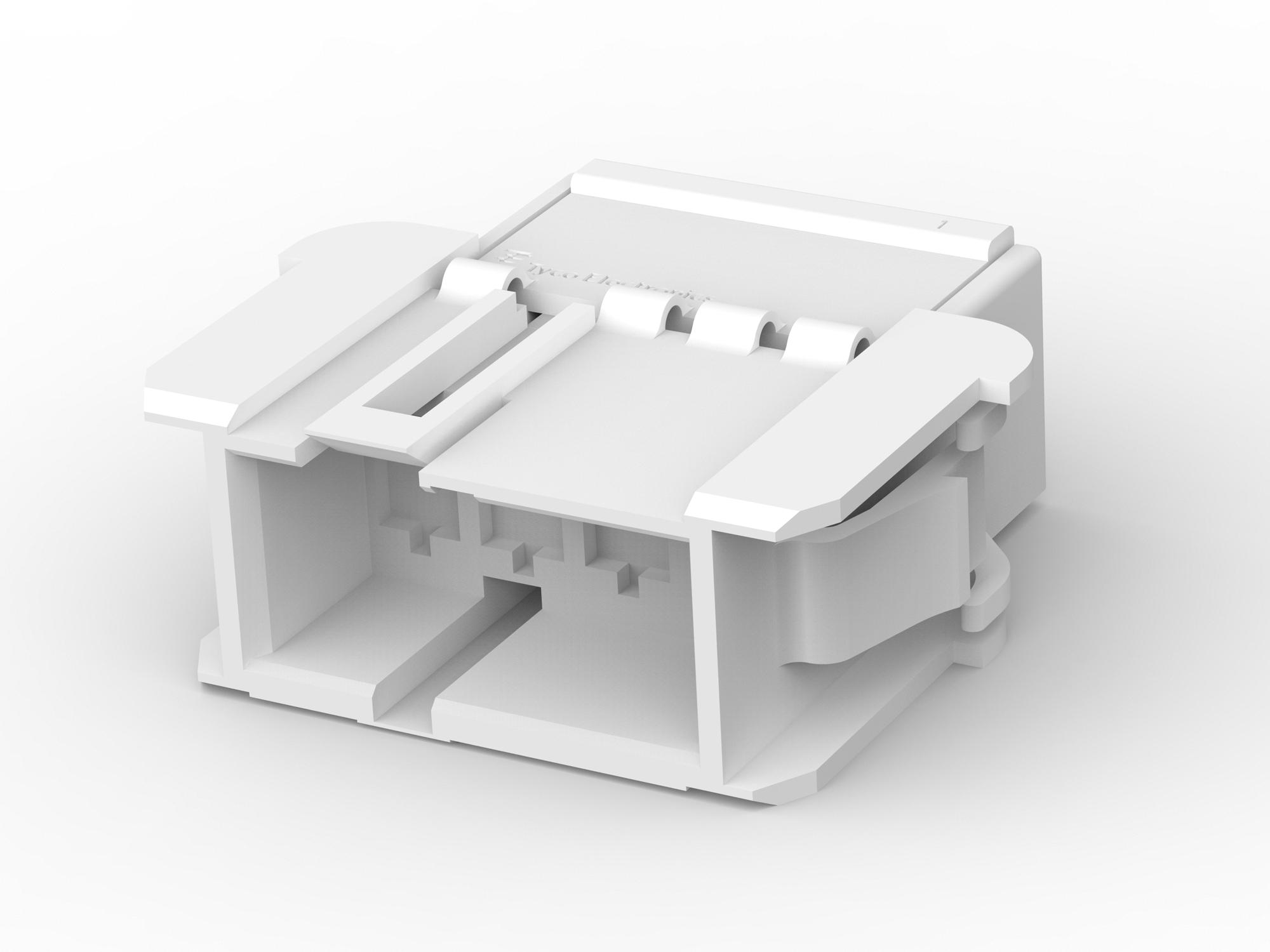

TE CONNECTIVITY 99277424 IDC Connector Housing
RAST 5 IDC Connectors are versatile crimp terminal housings designed for reliable electrical connections in industrial applications. Made from flame-retardant polyamide, they feature a straight, 4-position tab housing with Mating Retention. Suitable for panel mounting and operating within -40°C to 105°C, these UL 94V-2 rated connectors ensure durability and safety. Ideal for automation, control panels, and wire-to-board connections, they support secure, insulation-displacement contact interfaces, reducing assembly time and ensuring robust, vibration-resistant connections for various electrical systems.
TE CONNECTIVITY 99277424 IDC Connector Housing Specifications:
- Housing Material: Polyamide
- Color: Natural
- Number of Positions: 4
- Housing Type: Tab Housing
- Contact Orientation: Straight
- UL Flammability Rating: UL 94V-2
- Operating Temperature Range: -40°C to 105°C
- Dimensions: Length 30.5 mm, Centerline 5 mm
- Mating Retention: Yes
- Mounting Style: Panel Mount
- Locking Lance: Yes
- Certification: UL Listed, Compliant with EU RoHS, China RoHS 2, and REACH
- Application: Automotive, industrial control, automation, wire-to-board systems
Buy the TE 9-927742-4 – Reliable IDC Connector Housings for Industrial Applications
Get the TE 9-927742-4 RAST 5 IDC connector housing now and improve your wiring and control systems. Featuring a durable polyamide body, UL 94V-2 flame rating, and a 4-position straight tab design, this housing ensures secure and reliable connections in industrial environments. Ideal for automation and panel mount applications, it offers robust mating retention and a temperature range from -40°C to 105°C. Purchase online today to benefit from fast delivery and high-quality, compliant electrical components for your projects.
Order your TE 9-927742-4 RAST 5 IDC connector housing today and enhance your electrical projects with dependable, high-quality insulation-displacement connections.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 99277424?
You can click on the BUY or RFQ button to purchase 99277424 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 99277424?
You can download the 99277424 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 99277424?
TE CONNECTIVITY
