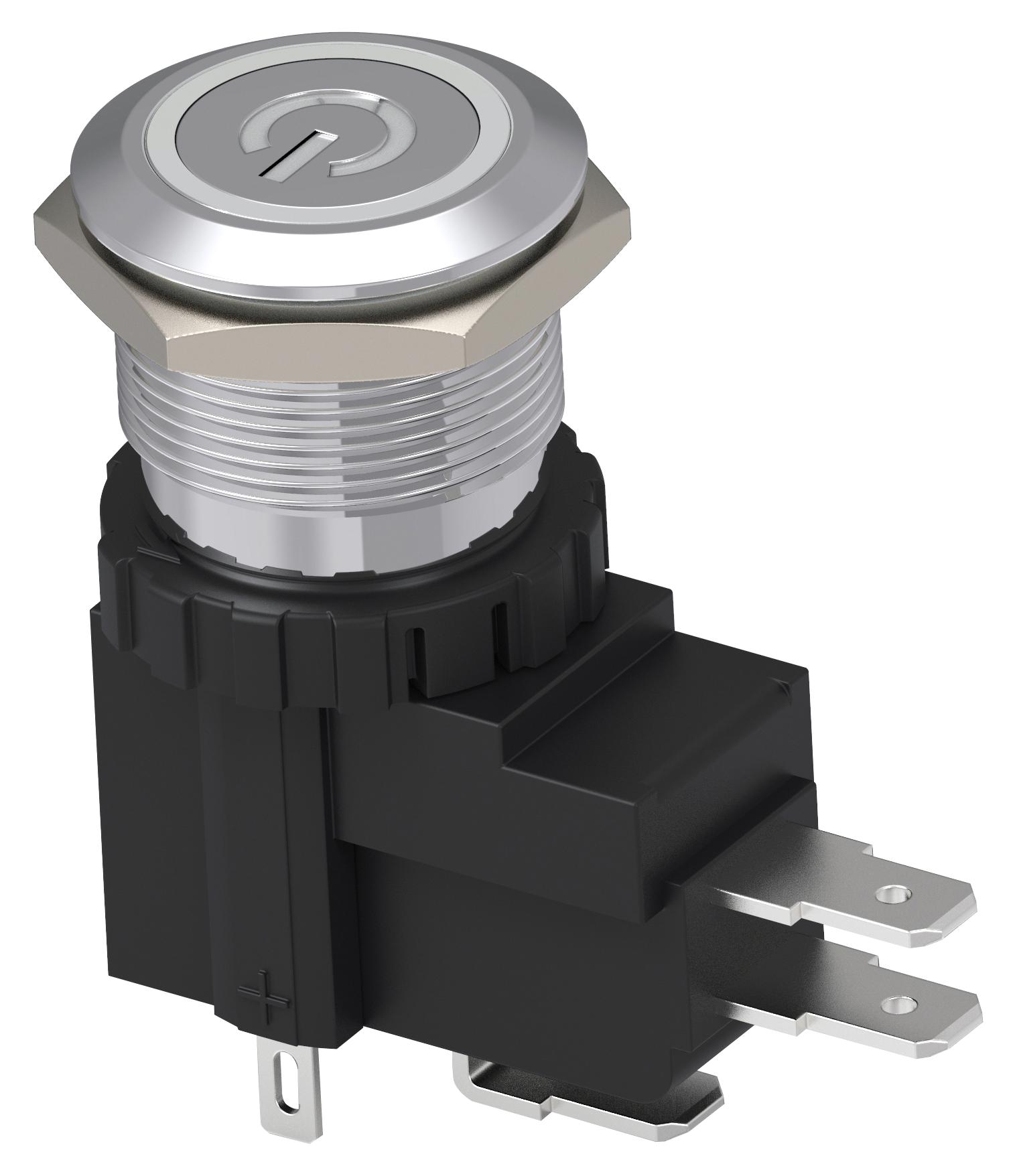

TE CONNECTIVITY AVH19LSFE13241604 Anti-vandal pushbutton switch
The AVH Series Anti-Vandal High Current Pushbutton Switches are robust, high-quality switches suitable for machinery, automotive, electronics, access control, and shipping equipment. Available in 19mm, 22mm, and 25mm bushings, these switches support high current ratings of 16A and 26A at 125/250VAC, with various LED light options for customization. They feature a silicone seal, durable mechanical life, and IP67 ingress protection, making them ideal for applications requiring vandal resistance, reliable operation, and long-lasting performance under demanding conditions.
TE CONNECTIVITY AVH19LSFE13241604 Anti-vandal pushbutton switch Specifications:
- Bushing Sizes: 19mm, 22mm, 25mm
- Contact Rating: 16A, 26A at 125/250VAC
- LED Light Options: Without LED, Power Symbol, Ring, and Illuminated Power Symbol
- Actuation: Momentary and Locking
- Mechanical Life: 1,000,000 cycles
- Electrical Life: 10,000 to 264,000 cycles depending on type
- Ingress Protection: IP67
- Seal Material: Silicone
- Panel Cut-out Diameters: 19.10mm, 22.20mm, 25.20mm
- Panel Thickness: Max 10mm
- Operating Temperature: -25°C to 85°C
- Operating Force: 3.5±1.5N
- Travel Distance: 3.2mm
Buy the Buy TE AVH Series Anti-Vandal High Current Pushbutton Switch Part Number AVH19LSFE13241604 Online
Purchase the TE AVH Series Anti-Vandal High Current Pushbutton Switches online today to ensure reliable, vandal-resistant operation in harsh environments. Designed for high current applications, these switches feature a robust silicone seal, IP67 ingress protection, and support ratings up to 26A at 125/250VAC. Available in various sizes including 19mm, 22mm, and 25mm, with multiple LED options for enhanced visibility. Perfect for machinery, automotive, electronics, access control, and shipping applications, they guarantee long-lasting performance with high mechanical and electrical life cycles.
Get TE AVH19LSFE13241604 today—built for vandal resistance, high current handling, and long-lasting durability in demanding environments.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY AVH19LSFE13241604?
You can click on the BUY or RFQ button to purchase AVH19LSFE13241604 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part AVH19LSFE13241604?
You can download the AVH19LSFE13241604 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of AVH19LSFE13241604?
TE CONNECTIVITY
